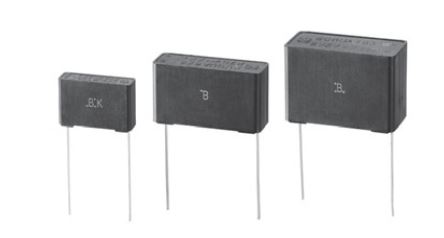

Panasonic ECQUAAF104K Metallized Polypropylene Film Capacitor
The Panasonic ECQ-UAAF104K is a plastic film capacitor within the ECQUA series, specifically designed for applications requiring high safety and reliability. It utilizes metallized polypropylene film construction and incorporates a safety mechanism in accordance with UL/CSA and European safety regulations. Key features include high humidity resistance, a compact form factor, and flame-retardant properties. This capacitor is commonly used as an interference suppressor in various electronic circuits. It is RoHS compliant, ensuring environmental responsibility. The capacitor's design and specifications are subject to change, and users are advised to consult the latest technical specifications before purchase and use.
Panasonic ECQUAAF104K Metallized Polypropylene Film Capacitor Specifications:
- Category temp. range: −40 ℃ to +110 ℃
- Rated voltage [AC]: 275 V
- Capacitance range: 0.0082 μF to 10.0 μF
- Capacitance tolerance: ±10 % (K),±20 % (M)
- Dissipation factor (tan δ): C>1.0 μF : tan δ≦0.2 % ( 20 ℃, 1 kHz ) C ≦ 1.0 μF : tan δ ≦ 0.1 % ( 20 ℃, 1 kHz )
- Withstand voltage: Between terminals：633 V [AC], 1183 V [DC], 60 s Between terminals to enclosure：2050 V [AC], 60 s
- Insulation resistance (IR): C ≦ 0.47 μF : IR ≧ 2,000 MΩ (20 ℃, 500 V [DC], 60 s) C > 0.33 μF : IR ≧ 5,000 MΩ ∙ μF (20 ℃, 100 V [DC], 60 s) C ≦ 0.33 μF : IR ≧ 15,000 MΩ (20 ℃, 100 V [DC], 60 s)
- Maximum AC voltage: 310 V [AC]
Buy the ECQ-UAAF104K PANASONIC Metallized Polypropylene Film Capacitor | myMectronic
Purchase the Panasonic ECQ-UAAF104K securely and efficiently for your electronic component needs.
Buy Now
Frequently Asked Questions
Where can I buy Panasonic ECQUAAF104K?
You can click on the BUY or RFQ button to purchase ECQUAAF104K from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part ECQUAAF104K?
You can download the ECQUAAF104K datasheet or visit the Panasonic website for support.
Who is the manufacturer of ECQUAAF104K?
Panasonic
