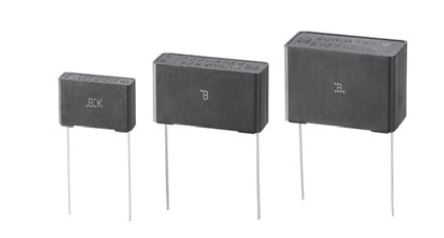

Panasonic ECQUAAF154K Metallized Polypropylene Film Capacitor
The Panasonic ECQ-UAAF154K is a plastic film capacitor within the ECQUA series, specifically designed for applications requiring high safety and reliability. It utilizes metallized polypropylene film construction and incorporates a safety mechanism in accordance with UL/CSA and European safety regulations. Key features include high humidity resistance, a compact form factor, and flame-retardant properties. This capacitor is commonly used as an interference suppressor in various electronic circuits. It is RoHS compliant and offers a balance of performance and safety for demanding applications.
Panasonic ECQUAAF154K Metallized Polypropylene Film Capacitor Specifications:
- Category temp. range: −40 ℃ to +110 ℃
- Rated voltage [AC]: 275 V
- Capacitance range: 0.0082 μF to 10.0 μF
- Capacitance tolerance: ±10 % (K),±20 % (M)
- Dissipation factor (tan δ): C>1.0 μF : tan δ≦0.2 % ( 20 ℃, 1 kHz ) C ≦ 1.0 μF : tan δ ≦ 0.1 % ( 20 ℃, 1 kHz )
- Withstand voltage: Between terminals：633 V [AC], 1183 V [DC], 60 s Between terminals to enclosure：2050 V [AC], 60 s
- Insulation resistance (IR): C ≦ 0.47 μF : IR ≧ 2,000 MΩ (20 ℃, 500 V [DC], 60 s) C > 0.33 μF : IR ≧ 5,000 MΩ ∙ μF (20 ℃, 100 V [DC], 60 s) C ≦ 0.33 μF : IR ≧ 15,000 MΩ (20 ℃, 100 V [DC], 60 s)
- Maximum AC voltage: 310 V [AC]
Buy the ECQ-UAAF154K PANASONIC Metallized Polypropylene Film Capacitor | myMectronic
Purchase the Panasonic ECQ-UAAF154K securely and reliably for your electronic component needs.
Buy Now
Frequently Asked Questions
Where can I buy Panasonic ECQUAAF154K?
You can click on the BUY or RFQ button to purchase ECQUAAF154K from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part ECQUAAF154K?
You can download the ECQUAAF154K datasheet or visit the Panasonic website for support.
Who is the manufacturer of ECQUAAF154K?
Panasonic
