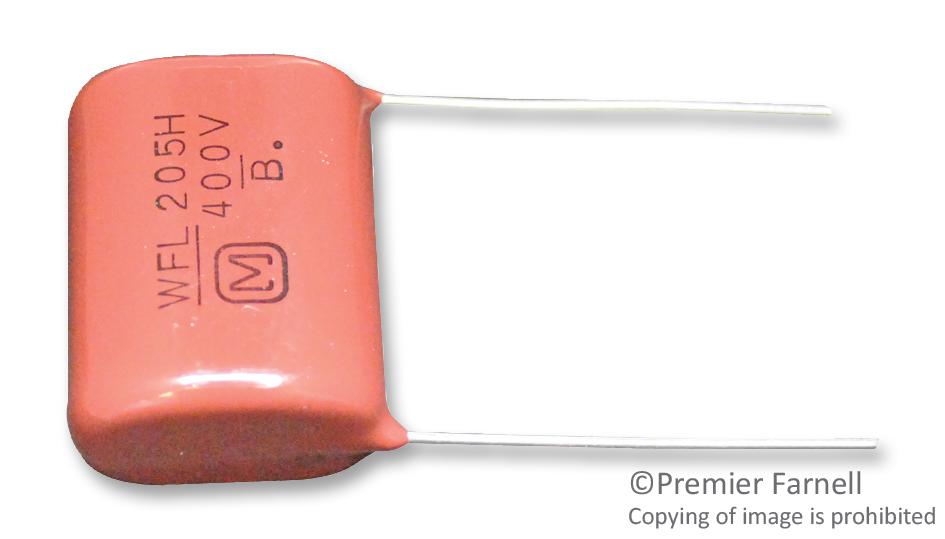

Panasonic ECWF4205HL Film Capacitor
Panasonic's ECW-F4205HL series are metallized polypropylene film capacitors designed for a wide range of applications including lighting, high-frequency circuits, and high-current applications. These capacitors offer excellent frequency characteristics, low loss, and a compact size. The flame-retardant epoxy resin coating enhances safety and reliability. They are RoHS compliant and available with various capacitance tolerances and lead configurations to meet specific design requirements. The capacitors are suitable for use in demanding environments and are known for their stability and performance.
Panasonic ECWF4205HL Film Capacitor Specifications:
- Category temp. range: – 40 °C to +105 °C
- Rated voltage: 400 V.DC,630 V.DC
- Capacitance range (400 V.DC): 0.022μF to 2.4μF
- Capacitance range (630 V.DC): 0.010μF to 1.3μF
- Capacitance tolerance: ±3 %(H),±5 %(J)
- Dissipation factor (tand): tand <0.05 % ( 20 °C, 1 kHz )<br>tand <0.20 % ( 20 °C,10 kHz)
- Withstand voltage: Between terminals : Rated volt.(V.DC)×150 %,60 s
- Insulation resistance (IR): C<0.33 μF : IR>9000 MΩ<br>(20 °C, 100 V.DC, 60 s for 400 V.DC)<br>C > 0.33 μF : IR>3000 MΩ∙ μF (20 °C, 500 V.DC, 60 s for 630 V.DC)
Buy the ECW-F4205HL PANASONIC Film Capacitor | myMectronic
Purchase the Panasonic ECW-F4205HL Film Capacitor securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy Panasonic ECWF4205HL?
You can click on the BUY or RFQ button to purchase ECWF4205HL from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part ECWF4205HL?
You can download the ECWF4205HL datasheet or visit the Panasonic website for support.
Who is the manufacturer of ECWF4205HL?
Panasonic
