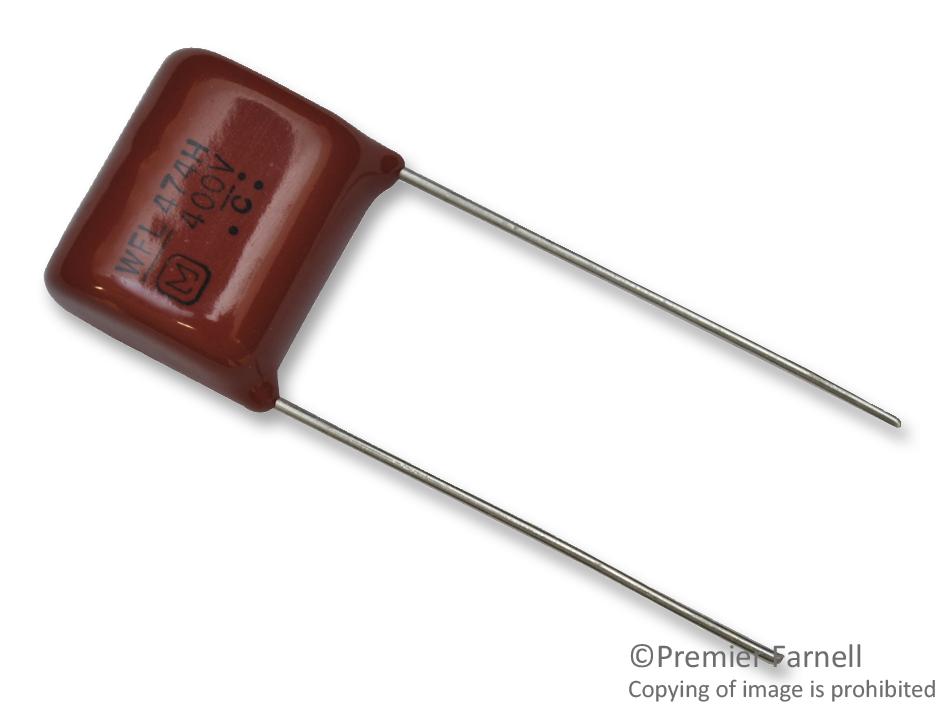

Panasonic ECWF4474HL Film Capacitor
Panasonic's ECW-F4474HL series are metallized polypropylene film capacitors constructed with non-inductive design and a flame retardant epoxy resin coating. These capacitors offer excellent frequency characteristics and low loss, making them ideal for applications such as lighting and high-frequency, high-current circuits. They are RoHS directive compliant and available in various capacitance ranges and voltage ratings. The compact size and reliable performance of these capacitors make them a versatile choice for a wide range of electronic applications.
Panasonic ECWF4474HL Film Capacitor Specifications:
- Category temp. range: – 40 °C to +105 °C
- Rated voltage: 400 V.DC,630 V.DC
- Capacitance range (400 V.DC): 0.022μF to 2.4μF
- Capacitance range (630 V.DC): 0.010μF to 1.3μF
- Capacitance tolerance: ±3 %(H),±5 %(J)
- Dissipation factor (tand): tand <0.05 % ( 20 °C, 1 kHz )<br>tand <0.20 % ( 20 °C,10 kHz)
- Withstand voltage: Between terminals : Rated volt.(V.DC)×150 %,60 s
- Insulation resistance (IR): C<0.33 μF : IR>9000 MΩ<br>C > 0.33 μF : IR>3000 MΩ∙ μF
Buy the ECW-F4474HL PANASONIC Film Capacitor | myMectronic
Purchase the Panasonic ECW-F4474HL Film Capacitor securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy Panasonic ECWF4474HL?
You can click on the BUY or RFQ button to purchase ECWF4474HL from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part ECWF4474HL?
You can download the ECWF4474HL datasheet or visit the Panasonic website for support.
Who is the manufacturer of ECWF4474HL?
Panasonic
