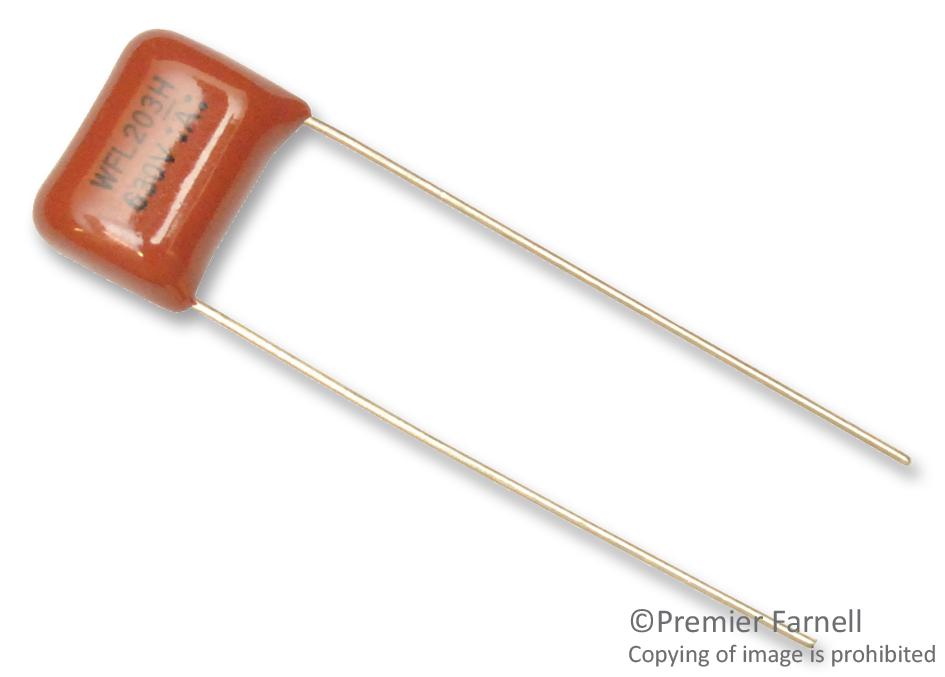

Panasonic ECWF6203HL Film Capacitor
Panasonic's ECW-F6203HL series are metallized polypropylene film capacitors constructed with non-inductive design and a flame-retardant epoxy resin coating. These capacitors offer excellent frequency characteristics and low losses, making them ideal for lighting applications and high-frequency, high-current circuits. They are RoHS compliant and available in various voltage and capacitance ranges, providing a versatile solution for diverse electronic applications. The capacitors are designed for reliability and performance in demanding environments.
Panasonic ECWF6203HL Film Capacitor Specifications:
- Category temp. range: – 40 °C to +105 °C
- Rated voltage: 400 V.DC, 630 V.DC
- Capacitance range (400 V.DC): 0.022μF to 2.4μF
- Capacitance range (630 V.DC): 0.010μF to 1.3μF
- Capacitance tolerance: ±3 %(H), ±5 %(J)
- Dissipation factor (tand): tand <0.05 % ( 20 °C, 1 kHz ) / tand <0.20 % ( 20 °C,10 kHz)
- Withstand voltage: Between terminals : Rated volt.(V.DC)×150 %,60 s
- Insulation resistance (IR): C<0.33 μF : IR>9000 MΩ / C > 0.33 μF : IR>3000 MΩ∙ μF
- Lead spacing: 7.5 mm
Buy the ECW-F6203HL PANASONIC Film Capacitor | myMectronic
Purchase Panasonic ECW-F6203HL Film Capacitors securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy Panasonic ECWF6203HL?
You can click on the BUY or RFQ button to purchase ECWF6203HL from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part ECWF6203HL?
You can download the ECWF6203HL datasheet or visit the Panasonic website for support.
Who is the manufacturer of ECWF6203HL?
Panasonic
