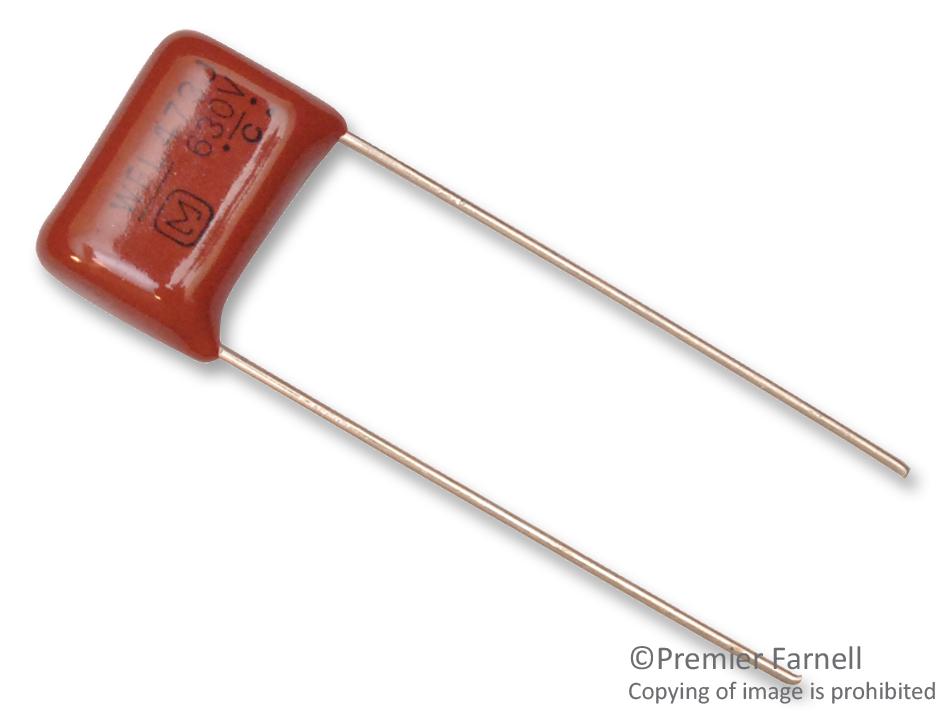

Panasonic ECWF6473JL Metallized Polypropylene Film Capacitor
Panasonic's ECW-F6473JL is a metallized polypropylene film capacitor known for its compact design and reliable performance in various electronic circuits. It's ideal for applications requiring high frequency and high current handling, such as lighting systems and power supplies. The capacitor's non-inductive construction and flame-retardant epoxy resin coating enhance its safety and efficiency. It is RoHS compliant, ensuring environmental responsibility. Available in a range of capacitance values and voltage ratings, the ECW-F6473JL provides a versatile solution for diverse electronic designs.
Panasonic ECWF6473JL Metallized Polypropylene Film Capacitor Specifications:
- Category temp. range: – 40 °C to +105 °C
- Rated voltage: 400 V.DC,630 V.DC
- Capacitance range (400 V.DC): 0.022μF to 2.4μF
- Capacitance range (630 V.DC): 0.010μF to 1.3μF
- Capacitance tolerance: ±3 %(H),±5 %(J)
- Dissipation factor (tand): tand <0.05 % ( 20 °C, 1 kHz )<br>tand <0.20 % ( 20 °C,10 kHz)
- Withstand voltage: Between terminals : Rated volt.(V.DC)×150 %,60 s
- Insulation resistance (IR): C<0.33 μF : IR>9000 MΩ<br>C > 0.33 μF : IR>3000 MΩ∙ μF
Buy the ECW-F6473JL PANASONIC Metallized Polypropylene Film Capacitor | myMectronic
Purchase the Panasonic ECW-F6473JL Metallized Polypropylene Film Capacitor securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy Panasonic ECWF6473JL?
You can click on the BUY or RFQ button to purchase ECWF6473JL from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part ECWF6473JL?
You can download the ECWF6473JL datasheet or visit the Panasonic website for support.
Who is the manufacturer of ECWF6473JL?
Panasonic
