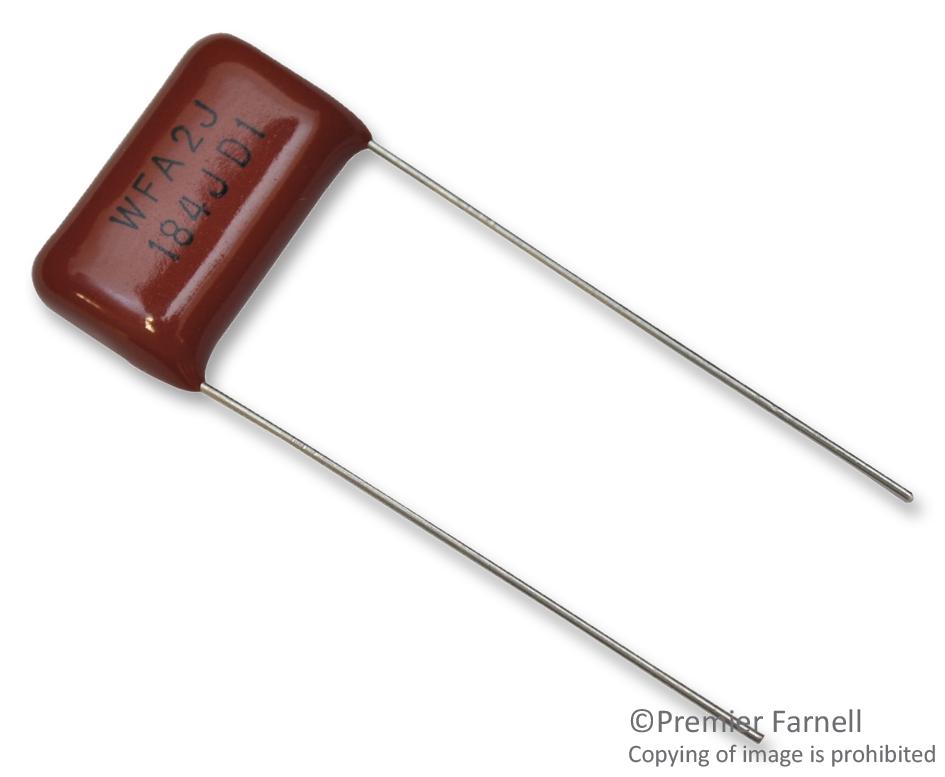

Panasonic ECWFA2J184J Film Capacitor
The Panasonic ECW-FA2J184J is a metallized polypropylene film capacitor engineered for demanding applications requiring high frequency and current handling capabilities. Its design incorporates features like excellent frequency characteristics, low loss, and minimal hum noise, ensuring reliable performance in diverse circuits. The capacitor is RoHS compliant, demonstrating a commitment to environmental responsibility. Typical applications include high-frequency and high-current circuits, as well as active filter circuits. Available in various configurations including bulk and odd size taping, the ECW-FA2J184J provides flexibility for different manufacturing processes and assembly requirements. Consult factory specifications for detailed technical information before purchase and use.
Panasonic ECWFA2J184J Film Capacitor Specifications:
- Category temp. range: –40 ˚C to +105 ˚C
- Rated voltage: 250 VDC, 450 VDC, 630 VDC
- Capacitance range (250 VDC): 0.1 µF to 6.8 µF
- Capacitance range (450 VDC): 0.1 µF to 4.7 µF
- Capacitance range (630 VDC): 0.1 µF to 2.2 µF
- Capacitance tolerance: ±3 % (H), ±5 % (J), ±10 % (K)
- Withstand voltage: Rated voltage (VDC)×150 % 60 s
- Dissipation factor: tanδ≦0.1 % (20 ˚C,1 kHz)
- Insulation resistance (IR) (C≦0.33 µF): IR≧9,000 MΩ (20 ˚C, 100 VDC, 60 s)
- Insulation resistance (IR) (C＞0.33 µF): IR≧3,000 MΩ・µF
- Peak to peak voltage applied: < 240Vp-p
- Zero to peak voltage: < 450V
Buy the ECW-FA2J184J PANASONIC Film Capacitor | myMectronic
Purchase the Panasonic ECW-FA2J184J Film Capacitor securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy Panasonic ECWFA2J184J?
You can click on the BUY or RFQ button to purchase ECWFA2J184J from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part ECWFA2J184J?
You can download the ECWFA2J184J datasheet or visit the Panasonic website for support.
Who is the manufacturer of ECWFA2J184J?
Panasonic
