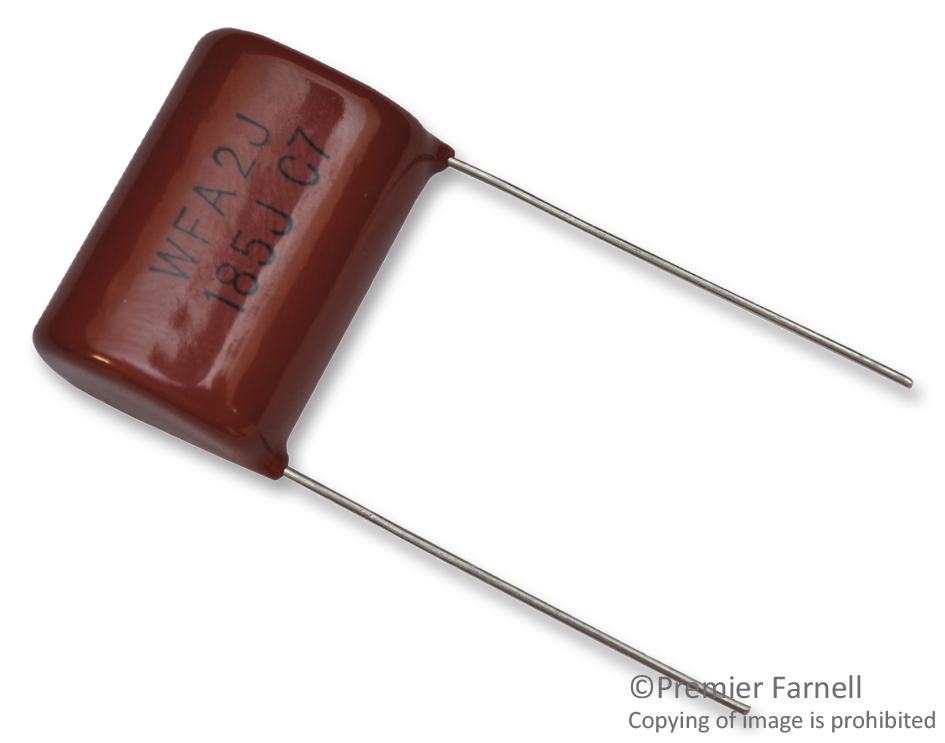

Panasonic ECWFA2J185J Polypropylene Film Capacitor
Panasonic's ECW-FA2J185J is a metallized polypropylene film capacitor engineered for demanding applications requiring high frequency and current handling. Its design incorporates features like excellent frequency characteristics, low loss, and minimal hum noise. Suitable for 250VDC, 450VDC, and 630VDC circuits, this capacitor finds use in active filter circuits and high-frequency applications. It is RoHS compliant, ensuring environmental responsibility. Available in various capacitance tolerances and lead forms, the ECW-FA2J185J provides versatility for diverse circuit designs.
Panasonic ECWFA2J185J Polypropylene Film Capacitor Specifications:
- Category temp. range: –40 ˚C to +105 ˚C
- Rated voltage: 250 VDC, 450 VDC, 630 VDC
- Capacitance range (250 VDC): 0.1 µF to 6.8 µF
- Capacitance range (450 VDC): 0.1 µF to 4.7 µF
- Capacitance range (630 VDC): 0.1 µF to 2.2 µF
- Capacitance tolerance (250 VDC): ±3 % (H), ±5 % (J)
- Capacitance tolerance (450 VDC): ±5 % (J), ±10 % (K)
- Capacitance tolerance (630 VDC): ±5 % (J)
- Withstand voltage: Rated voltage (VDC)×150 % 60 s
- Dissipation factor: tanδ≦0.1 % (20 ˚C,1 kHz)
- Insulation resistance (250 VDC): C≦0.33 µF :IR≧9,000 MΩ, C**＞**0.33 µF :IR≧3,000 MΩ・µF
- Insulation resistance (450 VDC): C≦0.33 µF :IR≧30,000 MΩ, C**＞**0.33 µF :IR≧10,000 MΩ・µF
- Insulation resistance (630 VDC): C≦0.33 µF :IR≧9,000 MΩ, C**＞**0.33 µF :IR≧3,000 MΩ・µF
Buy the ECW-FA2J185J PANASONIC Polypropylene Film Capacitor | myMectronic
Purchase the Panasonic ECW-FA2J185J polypropylene film capacitor securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy Panasonic ECWFA2J185J?
You can click on the BUY or RFQ button to purchase ECWFA2J185J from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part ECWFA2J185J?
You can download the ECWFA2J185J datasheet or visit the Panasonic website for support.
Who is the manufacturer of ECWFA2J185J?
Panasonic
