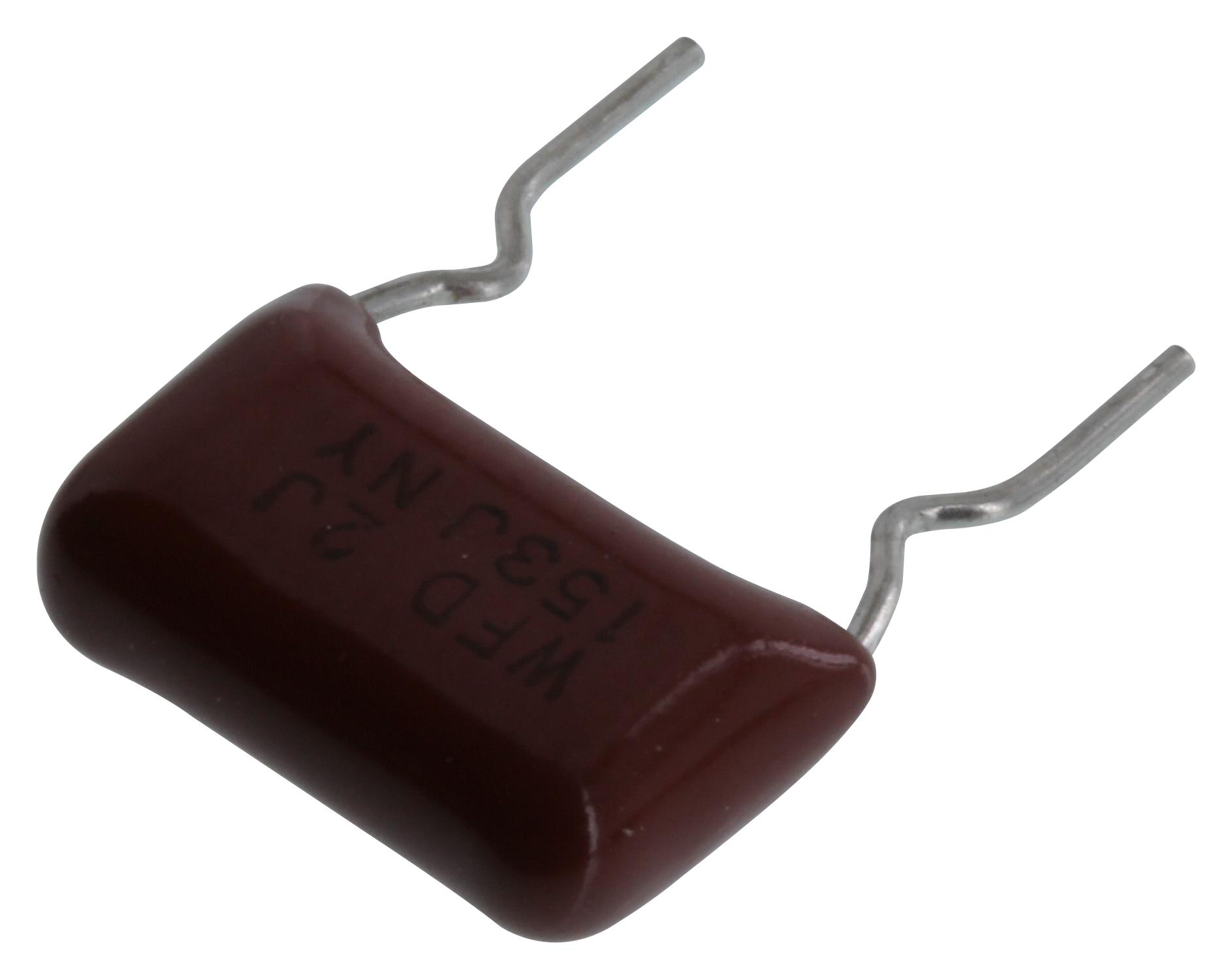

Panasonic ECWFD2J153JQ Metallized Polypropylene Capacitor
The metallized polypropylene film capacitor from Panasonic's ECWFD series offers compact size, excellent frequency characteristics, low loss, and flame-retardant epoxy resin coating. Designed for high-frequency and active filter circuits, it ensures reliability and safety with RoHS compliance. Suitable for various electronic applications, its non-inductive construction minimizes noise and enhances performance, making it ideal for demanding electronic environments requiring stable capacitance, temperature resilience, and flame retardancy.
Panasonic ECWFD2J153JQ Metallized Polypropylene Capacitor Specifications:
- Category temperature range: -40°C to +110°C
- Rated voltage: 450V DC (ECWFD2J153JQ series)
- Capacitance: 15nF (0.015 μF)
- Capacitance tolerance: ±10%
- Dissipation factor (tan δ): ≤ 0.1% at 20°C, 1 kHz
- Withstand voltage: 150% rated voltage for 60 seconds
- Insulation Resistance (IR): ≥ 30,000 MΩ for ≥ 0.33 μF, ≥ 3,000 MΩ for ≥ 0.33 μF
- Maximum lead length: Straight 10.0 mm, crimped 7.5 mm
- Dimensions: Length approximately 15.4 mm, width 5.6 mm, height 4.6 mm
- Flame-retardant epoxy resin coating (94V-0), RoHS compliant
- Application: high-frequency circuits, active filters, noise suppression
- Temperature derating: 1.25% per °C above 85°C
- Permissible ripple and pulse currents: varies with application, please consult specifications
- Packaging: Bulk and taping options with lead spacing of 5.0 mm or 7.5 mm
Buy the Panasonic Series ECWFD Metallized Polypropylene Film Capacitor: ECWFD2J153JQ
Enhance your electronic projects with Panasonic's ECWFD series metallized polypropylene film capacitor. Compact, flame-retardant, RoHS compliant, and designed for high-frequency circuits. Perfect for active filters and noise suppression, it offers excellent frequency characteristics, low loss, and stability across wide temperature ranges. Choose reliable performance and safety with this high-quality capacitor from Panasonic, available for easy online purchase with fast delivery options. Improve your circuitry with peace of mind today.
Buy Panasonic ECWFD2J153JQ now and experience unmatched reliability and performance tailored for high-frequency applications and noise suppression.
Frequently Asked Questions
Where can I buy Panasonic ECWFD2J153JQ?
You can click on the BUY or RFQ button to purchase ECWFD2J153JQ from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part ECWFD2J153JQ?
You can download the ECWFD2J153JQ datasheet or visit the Panasonic website for support.
Who is the manufacturer of ECWFD2J153JQ?
Panasonic
