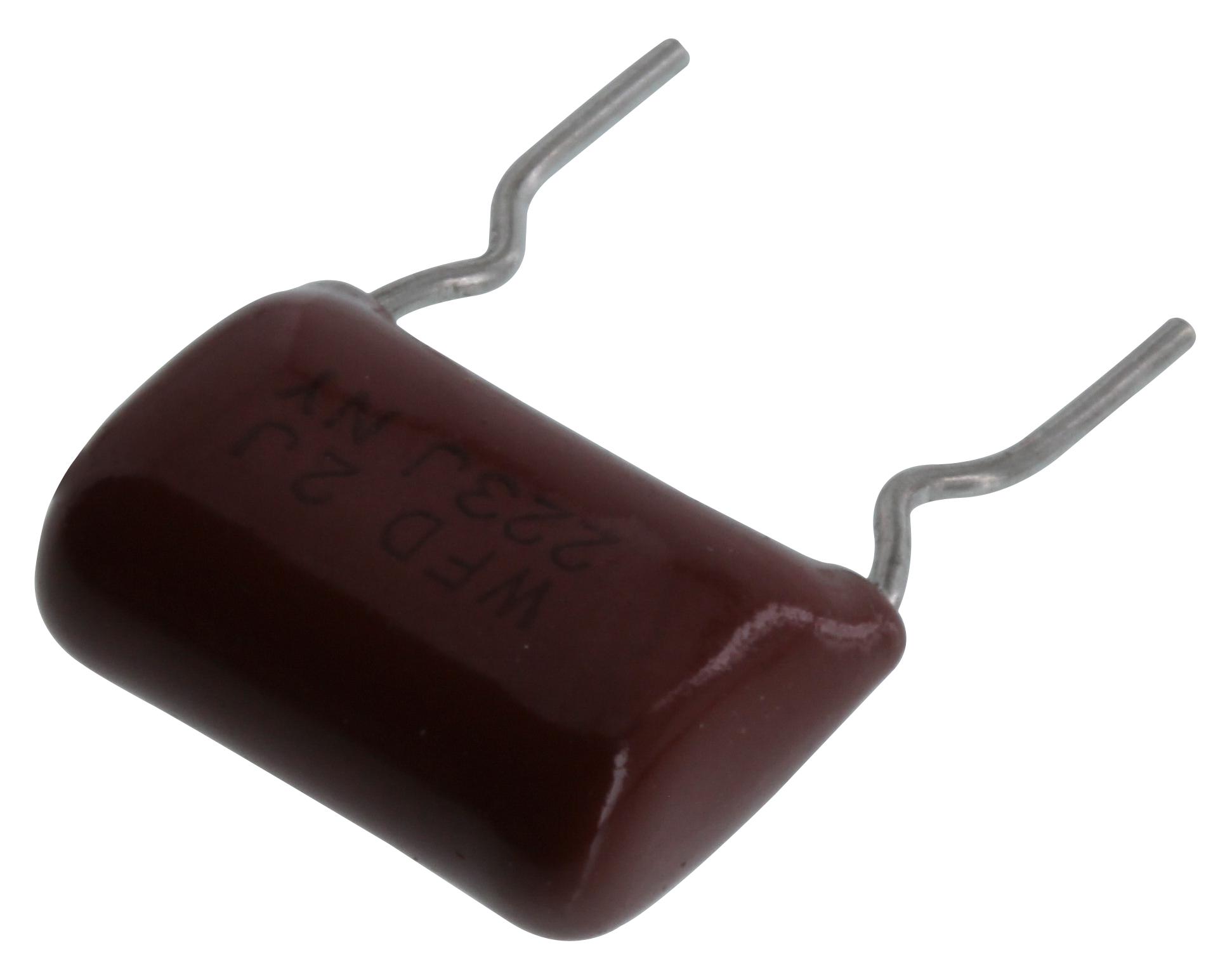

Panasonic ECWFD2J223JQ Polypropylene Film Capacitor
The Metallized Polypropylene Film Capacitor series offers a compact, high-frequency, low-loss, and flame-retardant solution ideal for active filter and high frequency circuits. It features non-inductive construction with metallized polypropylene film coated in flame-retardant epoxy resin, ensuring excellent frequency characteristics, low hum noise, and RoHS compliance. Suitable for various electronic applications, it exhibits reliable performance with detailed specifications like rated voltage, capacitance range, and withstand voltage, making it a dependable component for advanced electronic circuits and noise suppression systems. Its design emphasizes safety, durability, and environmental compliance, tailored for demanding electronic environments.
Panasonic ECWFD2J223JQ Polypropylene Film Capacitor Specifications:
- Category temperature range: -40°C to +110°C depending on voltage series
- Rated voltage: 450V or 630V DC with derating at over 85°C
- Capacitance range: 0.01 pF to 10.4 μF (630V), 0.1 μF to 4.7 μF (450V)
- Capacitance tolerance: ±10% (K), ±5% (J)
- Dissipation factor (tan δ): ≤ 0.1% at 20°C, 1 kHz
- Withstand voltage: 150% of rated voltage for 60 seconds
- Insulation resistance: IR ≥ 30,000 MΩ at 20°C for ≥ 0.33 μF
- Leakage current: within specified limits
- Physical: Small size, flame-retardant epoxy coating, lead options include straight, crimped, and cut leads
- Compliance: RoHS, UL, CSA, and EN standards
Buy the Buy Panasonic Metallized Polypropylene Film Capacitor Part Number ECWFD2J223JQ Online
Order the Panasonic Metallized Polypropylene Film Capacitor ECWFD series online today to ensure high frequency, low loss, flame retardant protection, and RoHS compliance. Designed for active filter and high-frequency circuits, this compact component offers excellent electrical characteristics, robustness, and environmental safety features. With detailed specifications covering voltage, capacitance, and reliability, purchasing online guarantees fast delivery and authentic Panasonic quality. Ideal for noise suppression and precision circuits, secure your supply of this dependable film capacitor now for your advanced electronic applications.
Get Panasonic ECWFD2J223JQ today—built for high frequency performance and long-lasting durability.
Frequently Asked Questions
Where can I buy Panasonic ECWFD2J223JQ?
You can click on the BUY or RFQ button to purchase ECWFD2J223JQ from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part ECWFD2J223JQ?
You can download the ECWFD2J223JQ datasheet or visit the Panasonic website for support.
Who is the manufacturer of ECWFD2J223JQ?
Panasonic
