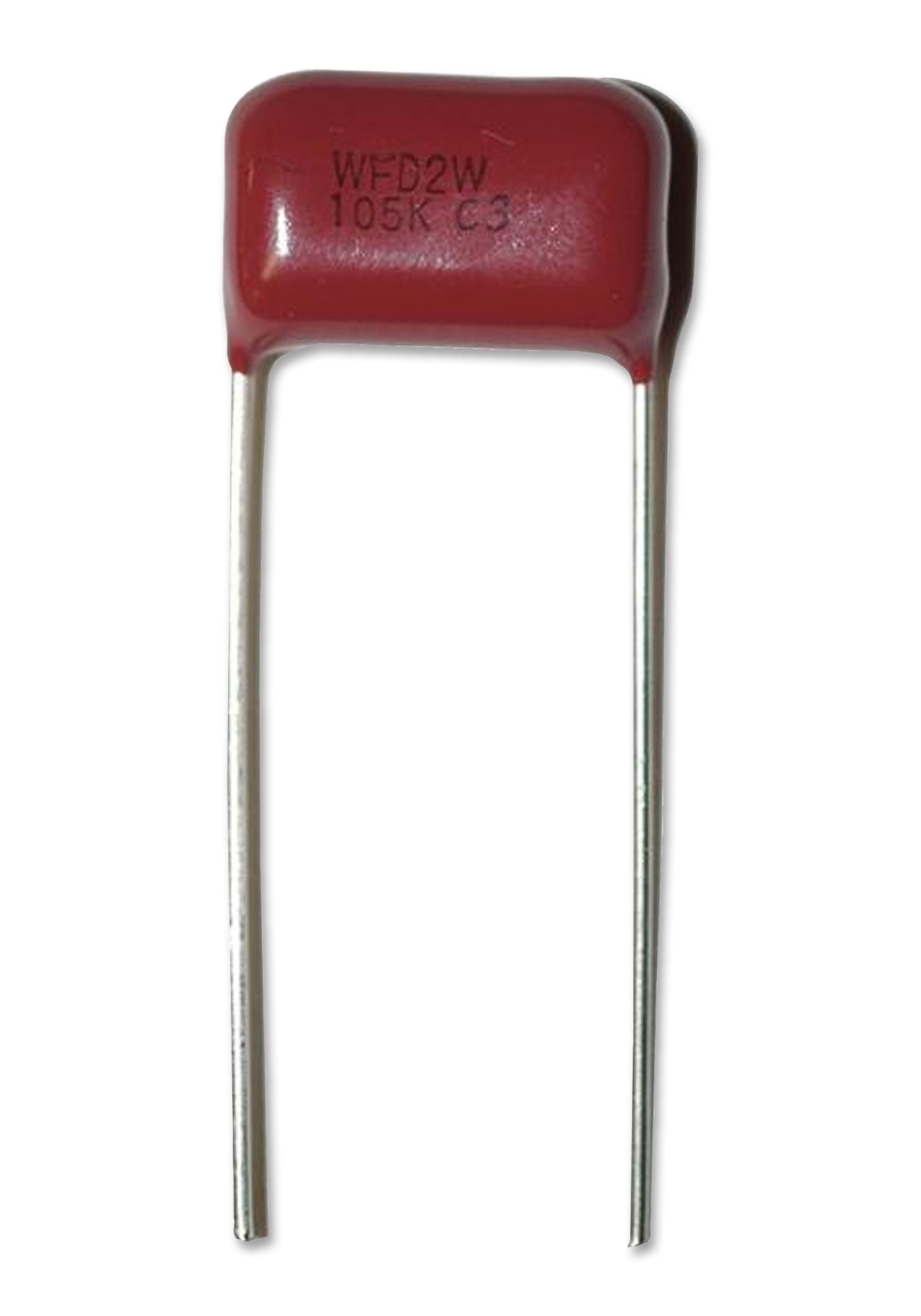

Panasonic ECWFD2W274K4 Metallized Polypropylene Film Capacitor
The Panasonic ECWFD series capacitor is a metallized polypropylene film capacitor constructed with non-inductive design and a flame-retardant epoxy resin coating. It offers excellent frequency characteristics and low loss, making it suitable for various applications including active filter circuits and high-frequency circuits. The capacitor is RoHS compliant and available in various capacitance ranges and voltage ratings. Its compact size and reliable performance make it a versatile choice for electronic designs.
Panasonic ECWFD2W274K4 Metallized Polypropylene Film Capacitor Specifications:
- Category temp. range: −40 ℃ to +110 ℃ (450 V.DC)
- Rated voltage: 450 V.DC (Peak to peak voltage should be less than 240 Vp-p)
- Capacitance range: 0.1 μF to 4.7 μF (450 V.DC)
- Capacitance tolerance: ±5% (J), ±10 % (K)
- Dissipation factor: ≦ 0.1 % (20°C, 1 kHz)
- Withstand voltage: Rated voltage (V.DC)×150 % 60 s
- Insulation resistance: ≧ 30,000 MΩ (20 °C, 100 V.DC, 60 s) for C ≦ 0.33 μF
Buy the ECWFD2W274K4 PANASONIC Metallized Polypropylene Film Capacitor | myMectronic
Purchase the Panasonic ECWFD2W274K4 capacitor securely and reliably for your electronic projects.
Buy Now
Frequently Asked Questions
Where can I buy Panasonic ECWFD2W274K4?
You can click on the BUY or RFQ button to purchase ECWFD2W274K4 from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part ECWFD2W274K4?
You can download the ECWFD2W274K4 datasheet or visit the Panasonic website for support.
Who is the manufacturer of ECWFD2W274K4?
Panasonic
