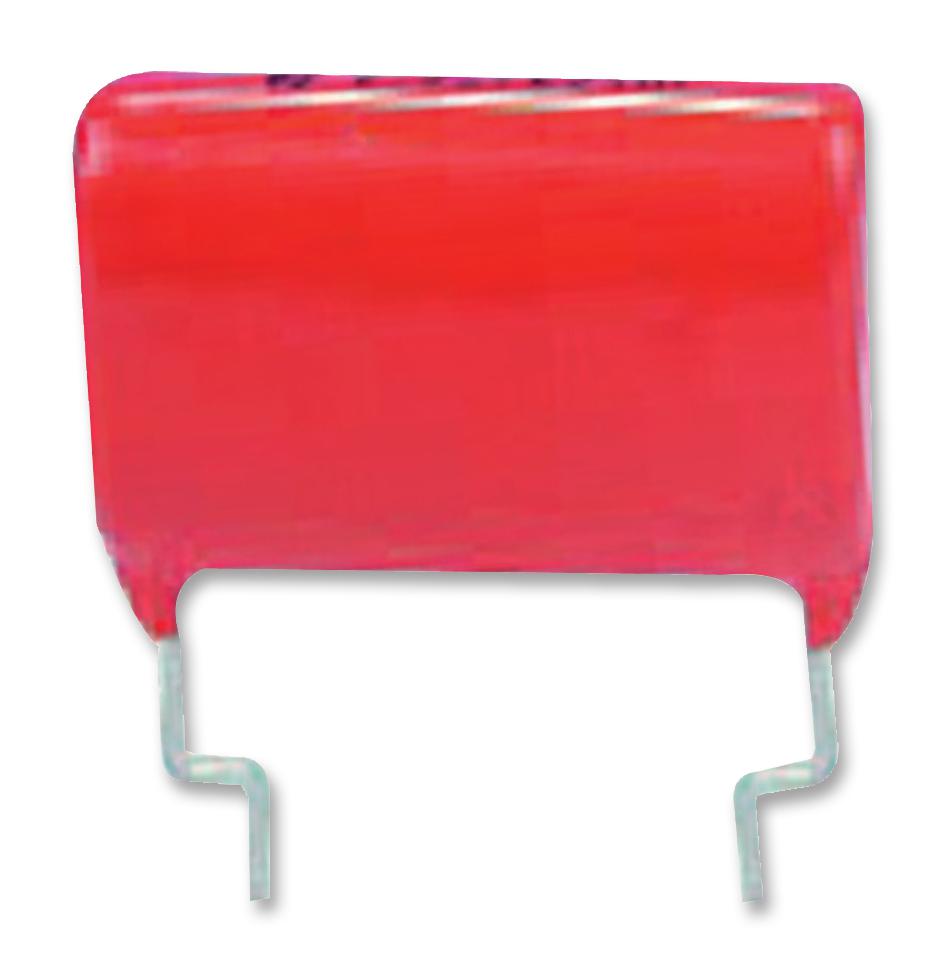

Panasonic ECWFD2W824KB Metallized Polypropylene Capacitor
The Panasonic ECWFD2W824KB is a metallized polypropylene film capacitor offering a robust solution for a wide range of electronic applications. Its non-inductive design ensures stable performance in high-frequency circuits, while the flame-retardant epoxy resin coating enhances safety and reliability. This capacitor is ideal for use in active filter circuits, high-frequency and high-current applications, and other demanding environments. It is RoHS compliant, meeting environmental standards. The capacitor's construction provides low loss and excellent frequency characteristics, contributing to efficient circuit operation. Available in various capacitance ranges and tolerances to meet specific design requirements.
Panasonic ECWFD2W824KB Metallized Polypropylene Capacitor Specifications:
- Category temp. range: －40℃to＋110℃
- Rated voltage: 450 VDC (Derating of rated voltage by 0.62%/˚C at more than 85˚C. Peak to peak voltage applied on the capacitor should be less than 240Vp-p, and zero to peak voltage should be less than 450V.)
- Capacitance range: 0.1 µF to 4.7 µF
- Capacitance tolerance: ±5 %(J), ±10 %(K)
- Withstand voltage: Between terminals:Rated voltage (VDC)×150 % 60 s
- Dissipation factor: tanδ≦0.1 % (20 ˚C,1 kHz)
- Insulation resistance: C≦0.33 µF:IR≧30,000MΩ; C＞0.33 µF:IR≧10,000MΩ・µF (20℃,100VDC,60 s)
Buy the ECWFD2W824KB PANASONIC Metallized Polypropylene Capacitor | myMectronic
Purchase the Panasonic ECWFD2W824KB capacitor securely and efficiently through our online platform.
Buy Now
Frequently Asked Questions
Where can I buy Panasonic ECWFD2W824KB?
You can click on the BUY or RFQ button to purchase ECWFD2W824KB from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part ECWFD2W824KB?
You can download the ECWFD2W824KB datasheet or visit the Panasonic website for support.
Who is the manufacturer of ECWFD2W824KB?
Panasonic
