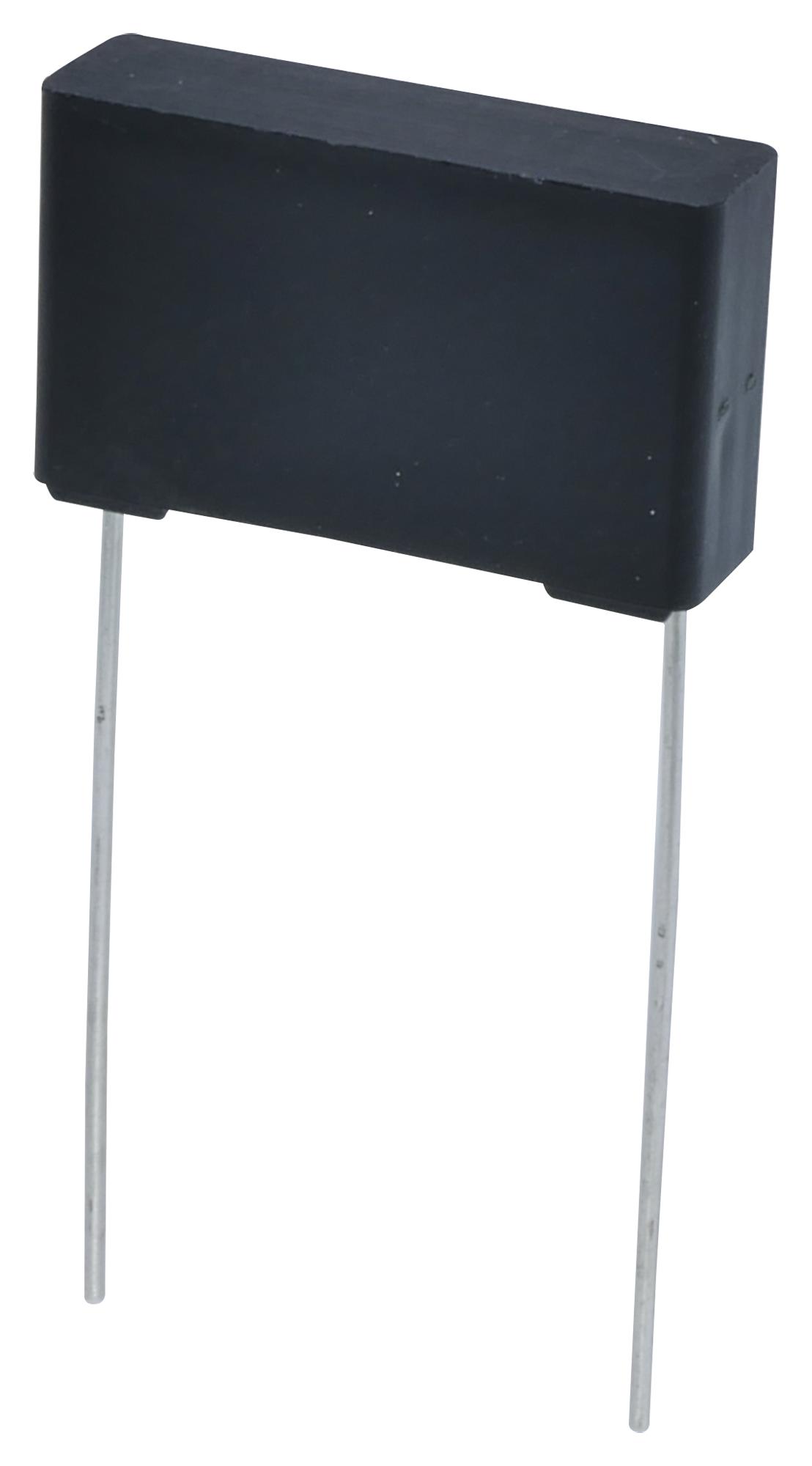

Panasonic ECWFE2J104PD Film Capacitor
Panasonic's metallized polypropylene film capacitor series, ECWFE, features non-inductive construction, flame retardant plastic case, and excellent high-frequency characteristics. Designed for active filter and high-frequency circuits, these capacitors exhibit low loss and noise, RoHS compliance, and a compact size for versatile applications. Their rugged build ensures durability with flame retardant materials, making them suitable for demanding electronic circuits requiring stable capacitance and high voltage resistance, especially in applications where safety, long-term reliability, and performance consistency are critical.
Panasonic ECWFE2J104PD Film Capacitor Specifications:
- Capacitance range: 0.10 UF to 4.7 UF
- Rated voltage: 450 V.DC and 630 V.DC
- Capacitance tolerance: +5% (J), +10% (K)
- Temperature range: -40°C to +105°C
- Dielectric: Metallized Polypropylene film
- Flammability: Flame retardant plastic case
- Lead forms: Straight, Cut lead, Crimped
- Dissipation factor: tan d ≤ 0.1% at 20°C, 1kHz
- Insulation resistance: 450 V.DC ≥ 60,000 MΩ, 630 V.DC ≥ 75,000 MΩ
- Dimensions: Length varies from 13.0 to 31.0 mm, width approximately 5.0 to 13.0 mm, height 10.5 mm to 23.0 mm, weight varies with capacitance and lead type
- Compliance: RoHS
- Peak voltage: < 450 V.DC (240 Vp-p), < 630 V.DC (400 Vp-p), derating applies above 85°C
- Construction: Metallized polypropylene film with flame retardant plastic case
- Certifications: UL, RoHS compliant
- Application: Active filters, high-frequency circuits, noise suppression
Buy the Buy Panasonic Film Capacitors Part Number ECWFE2J104PD Online
Enhance your electronic designs with Panasonic's high-performance film capacitor ECWFE series. These capacitors feature metallized polypropylene construction, flame retardant plastic case, and excellent frequency characteristics, making them ideal for filters and high-frequency circuits. With low loss, RoHS compliance, and rugged durability, they ensure long-lasting reliable operation. Available in a variety of capacitances and lead configurations, you can purchase these top-quality capacitors online easily, ensuring your project benefits from professional-grade components that meet modern safety and performance standards.
Get Panasonic ECWFE2J104PD film capacitor today—built for high-frequency performance and durability in demanding electronic applications.
Frequently Asked Questions
Where can I buy Panasonic ECWFE2J104PD?
You can click on the BUY or RFQ button to purchase ECWFE2J104PD from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part ECWFE2J104PD?
You can download the ECWFE2J104PD datasheet or visit the Panasonic website for support.
Who is the manufacturer of ECWFE2J104PD?
Panasonic
