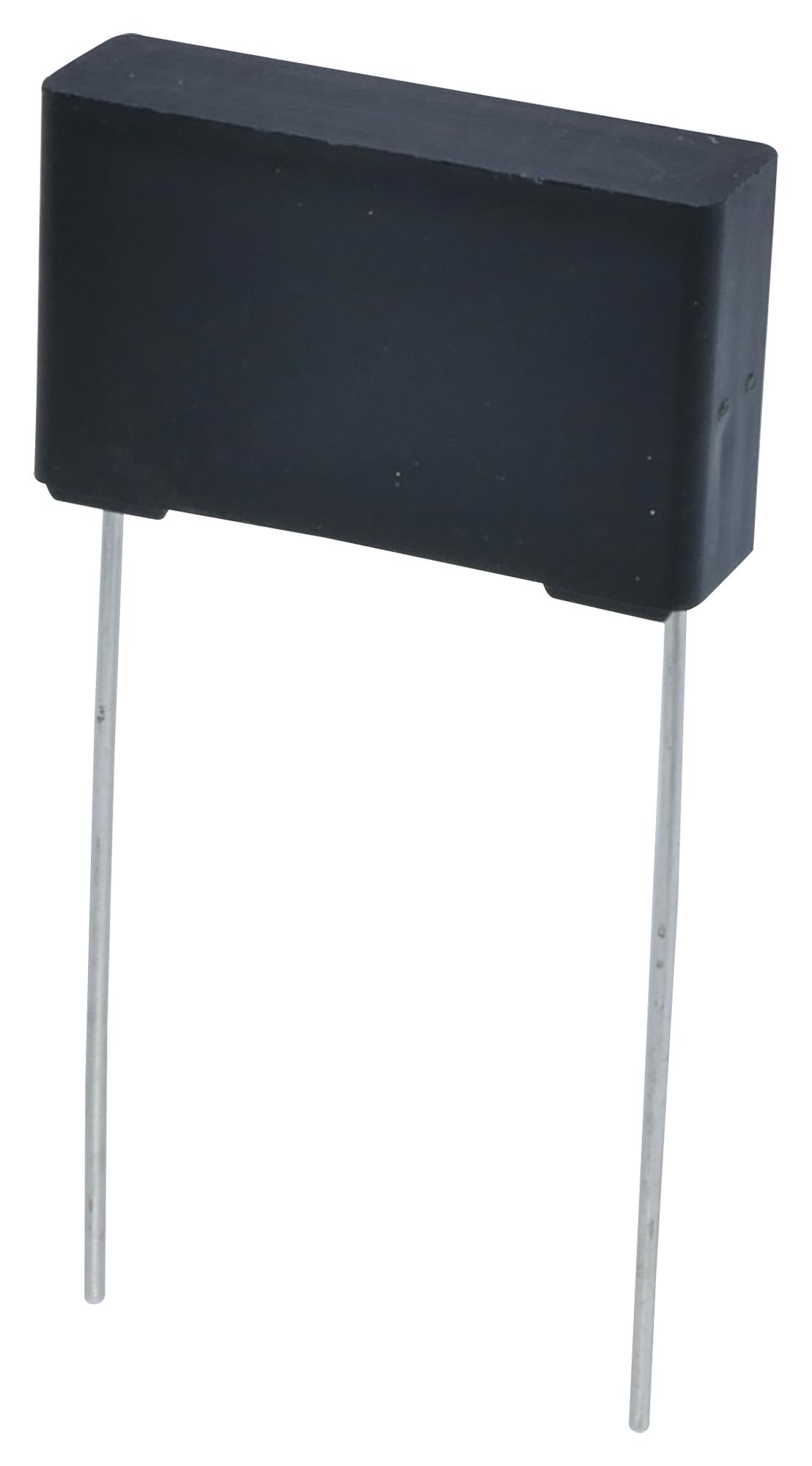

Panasonic ECWFE2J104Q5 Film Capacitor
Panasonic high-voltage metallized polypropylene film capacitor series ECWFE offers non-inductive construction, flame retardant plastic case, and excellent frequency response. Designed for active filter and high frequency circuits, it features low loss and RoHS compliance. Suitable for precise applications where stability, low hum noise, and safety are critical. Available with various capacitance values from 0.1 microfarads to 4.7 microfarads, rated voltages up to 630 VDC. Compact size, reliable performance, and easy mounting make it ideal for modern electronic and industrial applications.
Panasonic ECWFE2J104Q5 Film Capacitor Specifications:
- Capacitance range: 0.1 µF to 4.7 µF
- Rated voltage: 450 VDC and 630 VDC options
- Temperature range: -40°C to +105°C
- Capacitance tolerance: +5% (J), +10% (K)
- Dissipation factor (tan δ): ≤0.1% at 20°C, 1 kHz
- Insulation resistance: ≥1000 MΩ at 20°C
- Dimensions: Length varies from 13.0 mm to 31.0 mm, height up to 15.5 mm
- Lead form: Straight or cut leads with tin-plated copper steel wire
- Peak voltage: less than 450 VDC or 630 VDC depending on model
- Standards: RoHS compliant, flame retardant plastic case
- Application: High frequency, active filters in industrial electronics
- Construction: Metallized polypropylene film with non-inductive winding
- Capacitor type: Through-hole, surface-mount not applicable
- Leakage current: minimal, suitable for high stability circuits
- Certifications: UL, RoHS, and other safety standards
- Maximum operational temperature: 105°C
- Seal: Flame retardant plastic case with non-combustible resin
- Frequency characteristics: Excellent at high frequencies with low loss
- Environmental compliance: RoHS compliant
- Note: Derating of rated voltage at temperatures above 85°C
Buy the Panasonic ECWFE – Reliable Film Capacitor for Industrial Applications
Enhance your electronic designs with Panasonic ECWFE film capacitors, offering high voltage stability, low loss, flame-retardant case, and excellent frequency characteristics. Ideal for active filters and high frequency circuits, these capacitors ensure long-lasting performance and safety compliance. Available with various capacitance values and rated voltages, they are perfect for industrial electronics, communication equipment, and power supplies. Trust Panasonic’s quality and optimize your project’s reliability by ordering these essential capacitors online today.
Buy Panasonic ECWFE high-voltage film capacitor now and experience unmatched reliability and performance in your electronic circuits.
Frequently Asked Questions
Where can I buy Panasonic ECWFE2J104Q5?
You can click on the BUY or RFQ button to purchase ECWFE2J104Q5 from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part ECWFE2J104Q5?
You can download the ECWFE2J104Q5 datasheet or visit the Panasonic website for support.
Who is the manufacturer of ECWFE2J104Q5?
Panasonic
