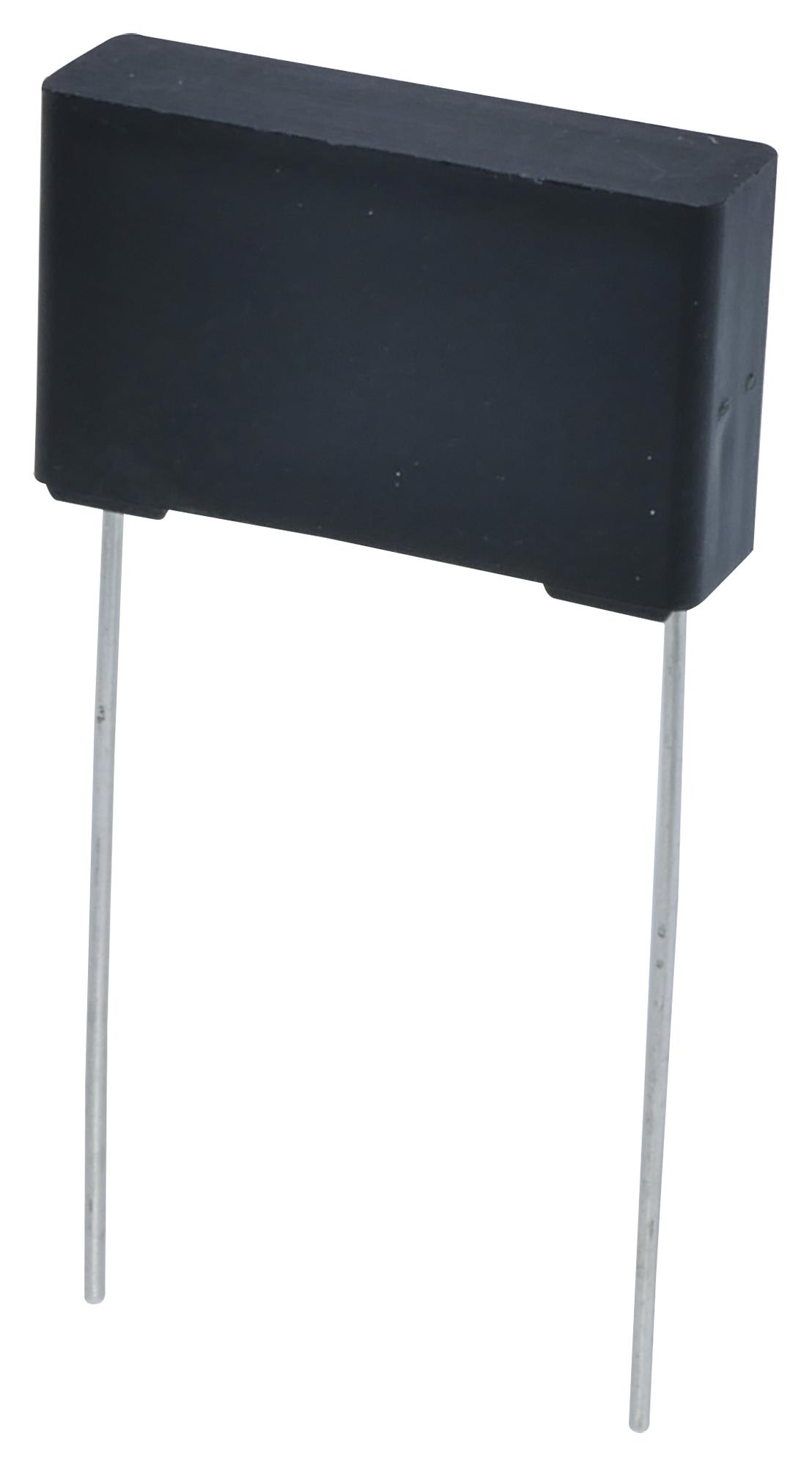

Panasonic ECWFE2J105P5 High Frequency Film Capacitor
The Panasonic ECWFE series are metallized polypropylene film capacitors designed for high-frequency applications. Featuring non-inductive construction with flame-retardant plastic cases, these capacitors offer excellent frequency characteristics, low loss, and RoHS compliance. Available with rated voltages of 450 VDC and 630 VDC, they cover capacitance ranges from 0.10 to 4.7 microfarads. Suitable for active filter and high-frequency circuits, they feature compact sizes, reliable insulation resistance, and various lead configurations for versatile mounting. These capacitors are ideal for efficient, high-performance electronic circuits requiring stable, flame-retardant components.
Panasonic ECWFE2J105P5 High Frequency Film Capacitor Specifications:
- Dielectric: Metallized Polypropylene
- Rated Voltage: 450 VDC, 630 VDC
- Capacitance Range: 0.10μF to 4.7μF
- Capacitance Tolerance: +5% (J), +10% (K)
- Temperature Range: -40°C to +105°C
- Dissipation Factor (tan d): ≤0.1% at 20°C, 1kHz
- Insulation Resistance: ≥10,000 MΩ at 20°C
- Peak Voltage: ≤450 VDC or 630 VDC depending on model
- Construction: Flame-retardant plastic case, non-inductive design
- Lead Type: Straight or cut lead, tin-plated copper wire
- Dimensions: Vary by capacitance and lead configuration, typically length 13-26mm, height 10-15mm
Buy the Buy Panasonic High Frequency Film Capacitors Part Number ECWFE2J105P5 Online
Purchase the Panasonic ECWFE series high frequency film capacitors online to enhance your electronic projects. These metallized polypropylene capacitors with flame-retardant cases are ideal for active filter and RF applications. They offer low loss, excellent frequency response, and robust insulation resistance, making them perfect for ensuring circuit stability and safety. Available in various capacitance values from 0.10μF to 4.7μF with rated voltages of 450VDC and 630VDC, these compact components are designed for easy mounting and long-term reliability in demanding electronic environments.
Order your Panasonic ECWFE2J105P5 high-frequency film capacitor today and ensure reliable performance in your RF and filter circuits.
Frequently Asked Questions
Where can I buy Panasonic ECWFE2J105P5?
You can click on the BUY or RFQ button to purchase ECWFE2J105P5 from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part ECWFE2J105P5?
You can download the ECWFE2J105P5 datasheet or visit the Panasonic website for support.
Who is the manufacturer of ECWFE2J105P5?
Panasonic
