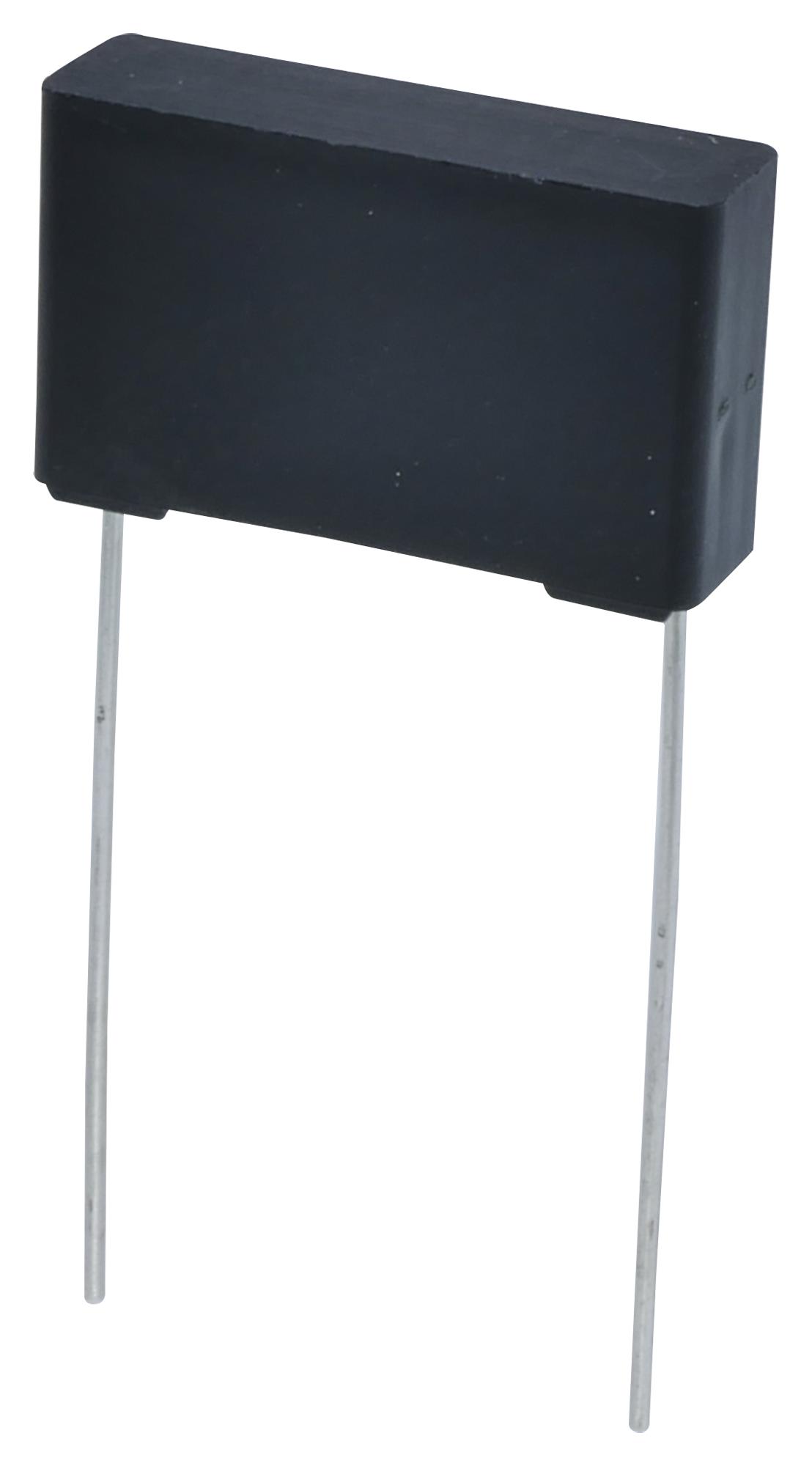

Panasonic ECWFE2J105Q5 Polypropylene Film Capacitor
The Panasonic ECWFE series plastic film capacitors are compact, non-inductive components designed with metallized polypropylene film for high frequency applications. Featuring flame-retardant plastic cases, these RoHS-compliant capacitors offer excellent frequency characteristics, low loss, and low hum noise. They are suitable for active filter and high-frequency circuits. With rated voltages up to 630 V DC and capacitance from 0.10 to 4.7 µF, they ensure safety and durability, making them ideal for precise electronic circuit filtering and power electronics in industrial settings.
Panasonic ECWFE2J105Q5 Polypropylene Film Capacitor Specifications:
- Capacitance range: 0.10 to 4.7 µF
- Rated voltage: 450 V DC, 630 V DC
- Capacitance tolerance: +5% (J), +10% (K)
- Dimensions: Length varies from 13.0 mm to 31.0 mm, height up to 15.5 mm, width up to 12.5 mm
- Material: Metallized Polypropylene film, flame-retardant plastic case
- Temperature Range: -40°C to +105°C
- Dissipation Factor (tan d): ≤ 0.1% at 20°C, 1 kHz
- Insulation Resistance: ≥ 60,000 MΩ at 20°C
- Lead options: Straight or cut leads, with tin-plated copper-clad steel wire
- Approval: RoHS compliant, UL recognized variants available
- Peak voltage: Up to 450 V DC (for 450 V rated capacitance), 630 V DC (for 630 V rated capacitance)
- Application: Active filters, high-frequency circuits, power electronics, signal processing
- Construction: Non-inductive, metallized polypropylene film
- Certifications: RoHS, UL recognition available
- Marking: Part Number, capacitance, voltage, tolerance, date code
Buy the Buy Panasonic ECWFE Series Film Capacitor Part Number ECWFE2J105Q5 Online
Enhance your electronic circuits with Panasonic polypropylen film capacitors. Offering high frequency stability, low loss, and flame-retardant design, these capacitors are ideal for industrial filter and high-frequency circuits. RoHS compliant with rated voltages up to 630 V DC and capacitance from 0.10 to 4.7 µF, they ensure durability and safety. Compact in size and available with straight or cut leads, these components are perfect for power electronics, signal processing, and electronic filtering, delivering reliable performance for demanding industrial environments.
Buy Panasonic ECWFE series film capacitors now and experience unmatched reliability and performance in your industrial and electronic applications.
Frequently Asked Questions
Where can I buy Panasonic ECWFE2J105Q5?
You can click on the BUY or RFQ button to purchase ECWFE2J105Q5 from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part ECWFE2J105Q5?
You can download the ECWFE2J105Q5 datasheet or visit the Panasonic website for support.
Who is the manufacturer of ECWFE2J105Q5?
Panasonic
