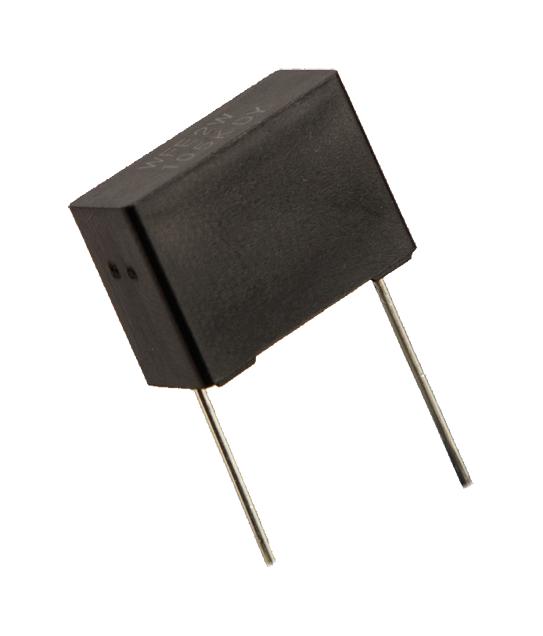

Panasonic ECWFE2J155K Polypropylene Film Capacitor
This high-quality metallized polypropylene film capacitor features non-inductive construction with a flame retardant plastic case, suitable for high-frequency and active filter circuits. It offers excellent frequency characteristics, low loss, and RoHS compliance, making it ideal for electronic equipment. Designed for reliable performance, it includes specifications for capacitance range, voltage ratings, and temperature tolerance. Its durable and compact design ensures efficient performance in various industrial and electronic applications, ensuring safety and stability.
Panasonic ECWFE2J155K Polypropylene Film Capacitor Specifications:
- Capacitance range: 0.1 µF to 4.7 µF
- Rated voltage: 450 V DC, 630 V DC
- Capacitance tolerance: +5%, -10%
- Temperature range: -40°C to +105°C
- Dissipation factor (tan δ): ≤ 0.1% at 20°C, 1 kHz
- Peak voltage: 1.25 times rated voltage for 450 V, 1.0 times for 630 V
- Withstand voltage: Rated voltage x 1.5 for 60 seconds
- Insulation resistance: ≥ 9,000 MΩ for 0.33 μF or higher
- Lead type: Straight or cut lead, tin-plated copper wire, with lead pitch options
- Dimensions vary depending on capacitance and lead form; typical length 13-26 mm, height 5-11 mm
- RoHS compliant, flame retardant epoxy coating (94V-0)
Buy the Panasonic ECWFE Series Reliable Metallized Polypropylene Capacitors for Industrial Applications
Experience the reliability and performance of Panasonic polypropylene film capacitors, perfect for active filter and high-frequency circuits. Featuring flame retardant casing, low loss, and RoHS compliance, these capacitors are designed for industrial and electronic applications requiring stability and safety. With a compact size, wide temperature range, and durable construction, they ensure consistent performance in demanding environments. Purchase online today to benefit from prompt delivery and expert support, securing a dependable component for your high-frequency and noise suppression needs.
Get Panasonic ECWFE155K today—built for high-frequency performance and long-lasting durability.
Frequently Asked Questions
Where can I buy Panasonic ECWFE2J155K?
You can click on the BUY or RFQ button to purchase ECWFE2J155K from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part ECWFE2J155K?
You can download the ECWFE2J155K datasheet or visit the Panasonic website for support.
Who is the manufacturer of ECWFE2J155K?
Panasonic
