Panasonic ECWFE2J155Q5 High Frequency Film Capacitor
The Panasonic Plastic Film Capacitors in the ECWFE Series are metallized polypropylene film components designed for high-frequency applications and active filter circuits. Featuring non-inductive construction, flame retardant plastic casing, and RoHS compliance, these small-sized capacitors offer excellent frequency characteristics, low loss, and minimal noise. Suitable for voltage ratings of 450 VDC, 630 VDC, and 450 VDC with varied capacitance ranges from 0.1 UF to 4.7 UF, they provide reliable performance in demanding electronic circuits with high stability and safety standards.
Panasonic ECWFE2J155Q5 High Frequency Film Capacitor Specifications:
- Rated voltage: 450 VDC, 630 VDC
- Capacitance range: 0.1 UF to 4.7 UF
- Capacitance tolerance: +5%, +10%
- Dielectric: Metallized Polypropylene film
- Temperature range: -40°C to +105°C
- Dissipation factor: tan d ≤ 0.1% at 20°C, 1 kHz
- Withstand voltage: 150% of rated voltage for 60s
- Insulation resistance: 630 VDC, 20°C, 60s, IR ≥ 500 MΩ
- Physical size: Length 13.0 mm to 31.0 mm, Width approx. 5.0–15.5 mm
- Lead forms: Straight and Cut lead options, tin-plated copper-steel wire

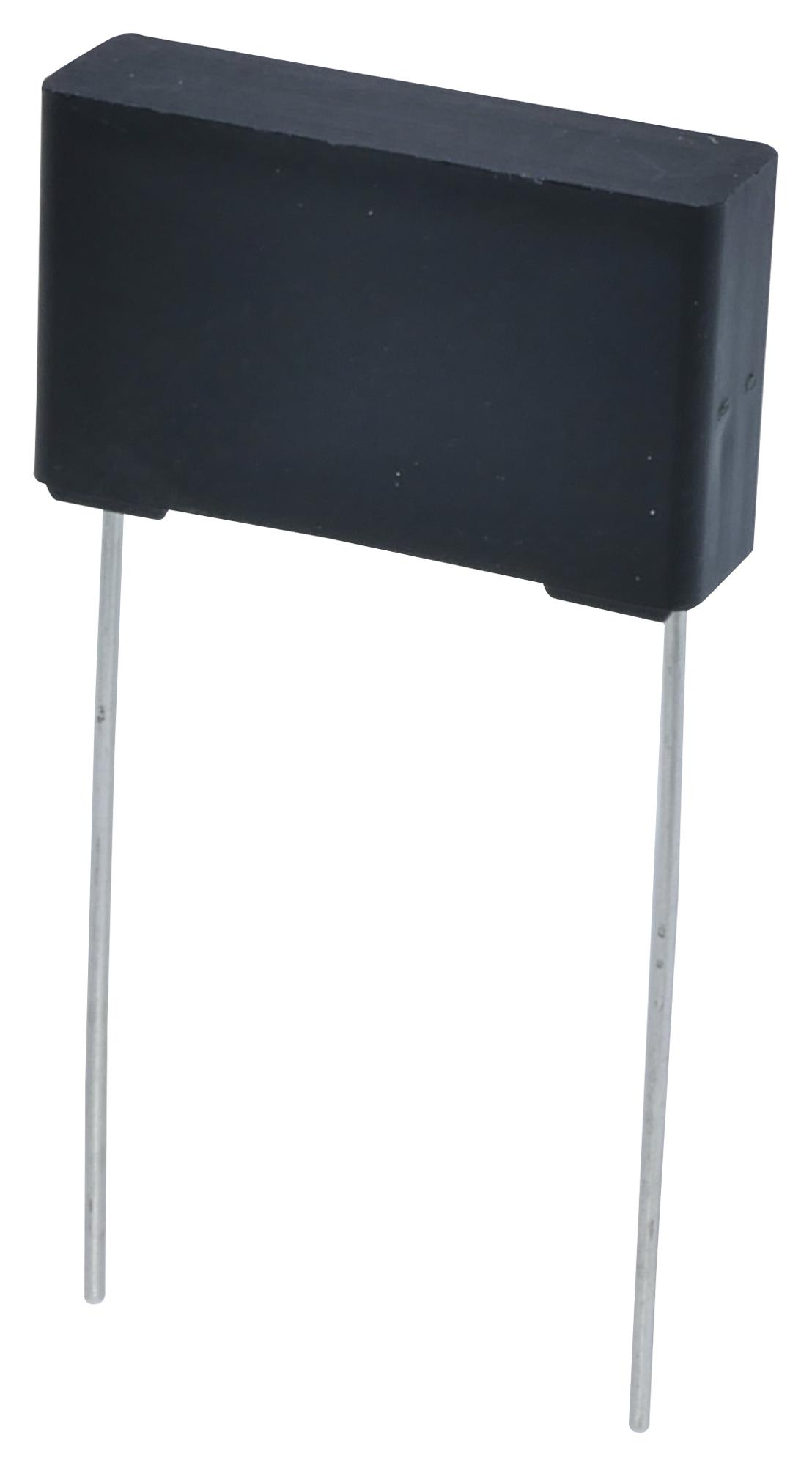

Buy the Panasonic Series ECWFE Capacitor: ECWFE2J155Q
Purchase Panasonic ECWFE2J155Q polypropylene film capacitor online today for superior performance in high-frequency and filter circuits. These compact, reliable components feature flame retardant casing, low loss, and RoHS compliance, making them ideal for demanding electronic applications. With a voltage rating of 450 VDC and capacitance of 1.5 UF, they ensure excellent stability, noise reduction, and safety in active filters and high-frequency circuits. Enjoy fast delivery and quality assurance with your online purchase of Panasonic capacitors.
Buy Panasonic ECWFE2J155Q high-frequency polypropylene film capacitor online now and ensure reliable, high-performance circuit design.
Frequently Asked Questions
Where can I buy Panasonic ECWFE2J155Q5?
You can click on the BUY or RFQ button to purchase ECWFE2J155Q5 from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part ECWFE2J155Q5?
You can download the ECWFE2J155Q5 datasheet or visit the Panasonic website for support.
Who is the manufacturer of ECWFE2J155Q5?
Panasonic
