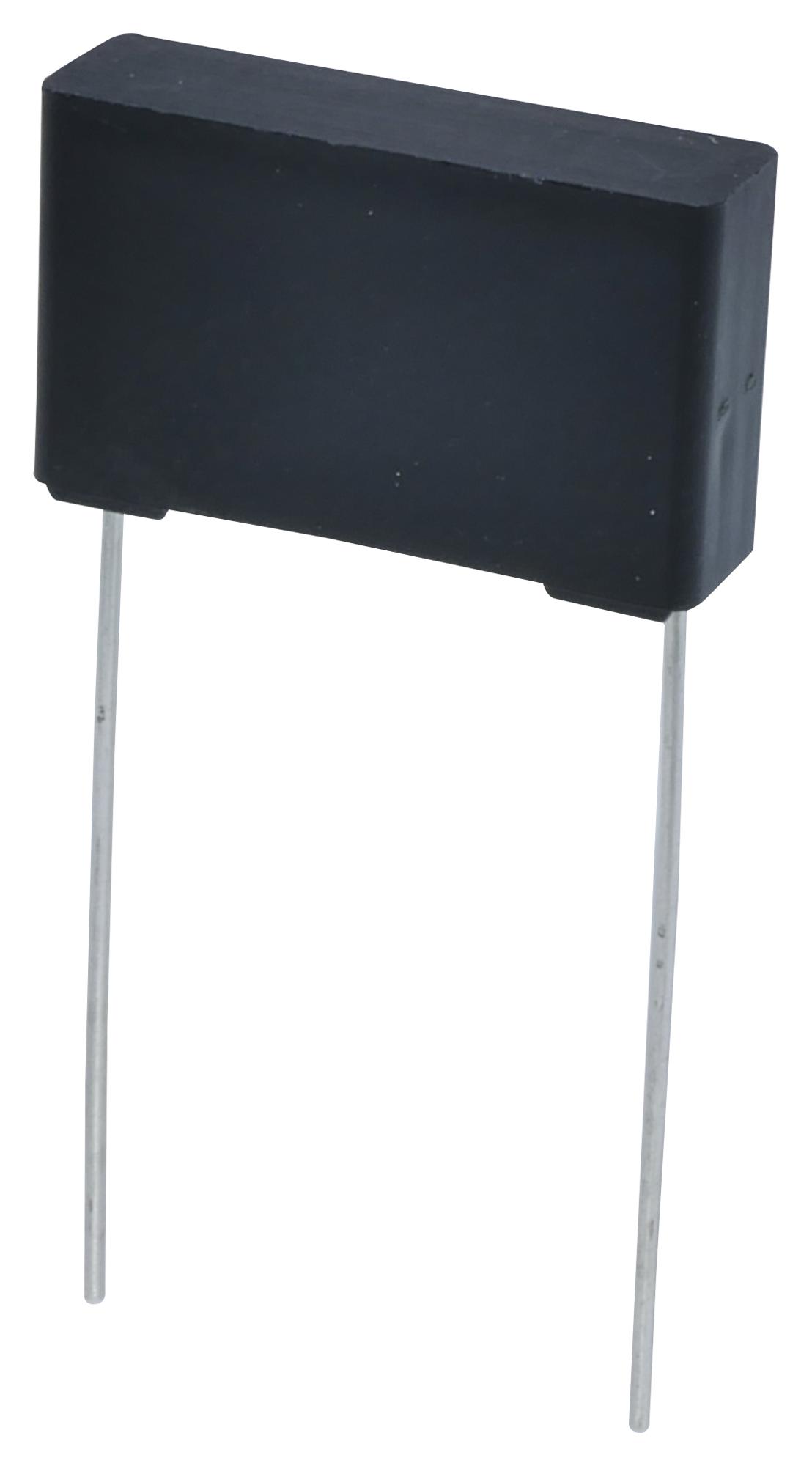

Panasonic ECWFE2J224P5 Film Capacitor
Panasonic Plastic Film Capacitors in the ECWFE series offer non-inductive construction using metallized polypropylene film with a flame retardant plastic case. These compact capacitors provide excellent frequency characteristics, low loss, and magnetically quiet operation suitable for active filter and high-frequency circuits. RoHS-compliant with flame-retardant features, they are designed for reliable performance in demanding electrical environments, offering various capacitance and voltage ratings to meet diverse industrial filter and signal processing needs with robust insulation resistance and withstand voltage capabilities.
Panasonic ECWFE2J224P5 Film Capacitor Specifications:
- Capacitance range: 0.1 UF to 4.7 UF
- Rated voltage: 450 V.DC or 630 V.DC depending on model
- Capacitance tolerance: +5% (J), +10% (K)
- Dielectric material: Metallized polypropylene film
- Temperature range: approximately -40°C to +105°C
- Dissipation factor (tan d): ≤ 0.1% at 20°C, 1 kHz
- Peak voltage: less than 450 V.DC or 630 V.DC
- Insulation resistance: ≥ 1,000 MΩ at 20°C, rated voltage
- Lead forms: Straight or cut leads, with dimensions specified per model
- Flame retardant plastic case, RoHS compliant
- Size dimensions vary per capacitance, with typical lengths of 13.0 to 26.0 mm, widths around 5.0 to 10.0 mm, and heights from 10.5 to 19.0 mm
- Withstand voltage: rated voltage x 150% for 60 seconds
- Temperature derating: 1.25%/°C above 85°C
- Certifications: RoHS compliance, flame retardant plastic case
Buy the Panasonic ECWFE2J224P5 – Reliable Film Capacitor for Industrial Applications
Enhance your electronic projects with Panasonic film capacitors designed for high-frequency and active filter applications. Featuring metallized polypropylene film, these compact capacitors provide low loss, excellent frequency characteristics, and flame-retardant plastic cases for added safety. Available in various capacitance and voltage ratings, they deliver robust insulation resistance and withstand voltages suitable for demanding industrial environments. Whether you need straight or crimped leads, trust these RoHS-compliant capacitors for reliable, long-lasting performance in your electrical and electronic systems.
Buy Panasonic ECWFE2J224P5 now and experience unmatched reliability and high-frequency performance for your industrial filter circuits.
Frequently Asked Questions
Where can I buy Panasonic ECWFE2J224P5?
You can click on the BUY or RFQ button to purchase ECWFE2J224P5 from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part ECWFE2J224P5?
You can download the ECWFE2J224P5 datasheet or visit the Panasonic website for support.
Who is the manufacturer of ECWFE2J224P5?
Panasonic
