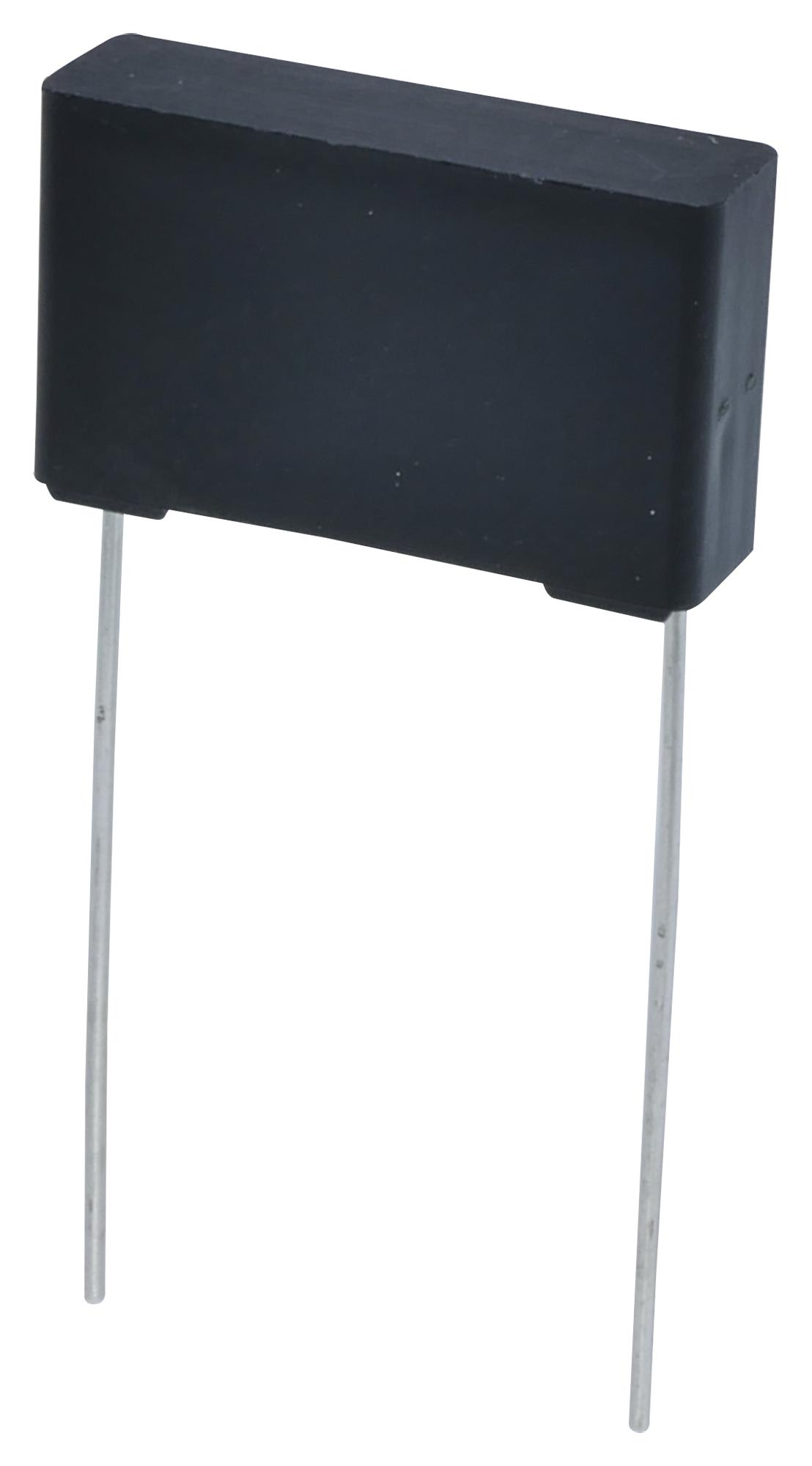

Panasonic ECWFE2J224PD High-Frequency Film Capacitor
The Panasonic ECWFE2J224PD is a compact, metallized polypropylene film capacitor designed for high-frequency and active filter circuits. Featuring non-inductive construction with flame-retardant plastic casing, it offers excellent frequency characteristics, low loss, and RoHS compliance. Suitable for voltage ratings up to 630 V.DC, with capacitance ranging from 0.1 to 4.7 µF and tolerances of +5% or +10%, this capacitor ensures reliable performance in demanding industrial applications. Its small size and high insulation resistance make it ideal for precision electronics and filter circuits, providing durability and safety.
Panasonic ECWFE2J224PD High-Frequency Film Capacitor Specifications:
- Capacitance: 0.1 to 4.7 µF
- Rated Voltage: 630 V.DC
- Capacitance Tolerance: +5% (J), +10% (K)
- Dimensions: Length 26.0 mm, Width 12.0 mm, Height 19.0 mm
- Material: Metallized Polypropylene film
- Construction: Non-inductive
- Case: Flame retardant plastic
- Temperature Range: -40°C to +105°C
- Dissipation Factor: tan d ≤ 0.1% at 20°C, 1 kHz
- Insulation Resistance: ≥ 10,000 MΩ at rated voltage
- Peak Voltage: Less than 450 V.DC (for 450 V rated), Less than 630 V.DC (for 630 V rated)
- RoHS Compliant
- Applicable for high frequency and active filter circuits
- Long-term stability and low noise characteristics
Buy the Panasonic ECWFE2J224PD – Reliable High-Frequency Polypropylene Film Capacitor for Industrial Applications
Purchase the Panasonic ECWFE2J224PD film capacitor online now for your high-frequency circuit needs. This compact, reliable component offers excellent frequency characteristics, low loss, and RoHS compliance. Designed with metallized polypropylene film and a flame-retardant plastic case, it provides high insulation resistance, durability, and safety across industrial applications. Suitable for voltage ratings up to 630 V.DC and capacitance of 0.1 to 4.7 µF, ensure optimal performance in active filter and high-frequency circuits by ordering online today for quick delivery and trusted quality.
Order your Panasonic ECWFE2J224PD high-frequency film capacitor today and ensure your electronic projects have dependable, long-lasting performance.
Frequently Asked Questions
Where can I buy Panasonic ECWFE2J224PD?
You can click on the BUY or RFQ button to purchase ECWFE2J224PD from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part ECWFE2J224PD?
You can download the ECWFE2J224PD datasheet or visit the Panasonic website for support.
Who is the manufacturer of ECWFE2J224PD?
Panasonic
