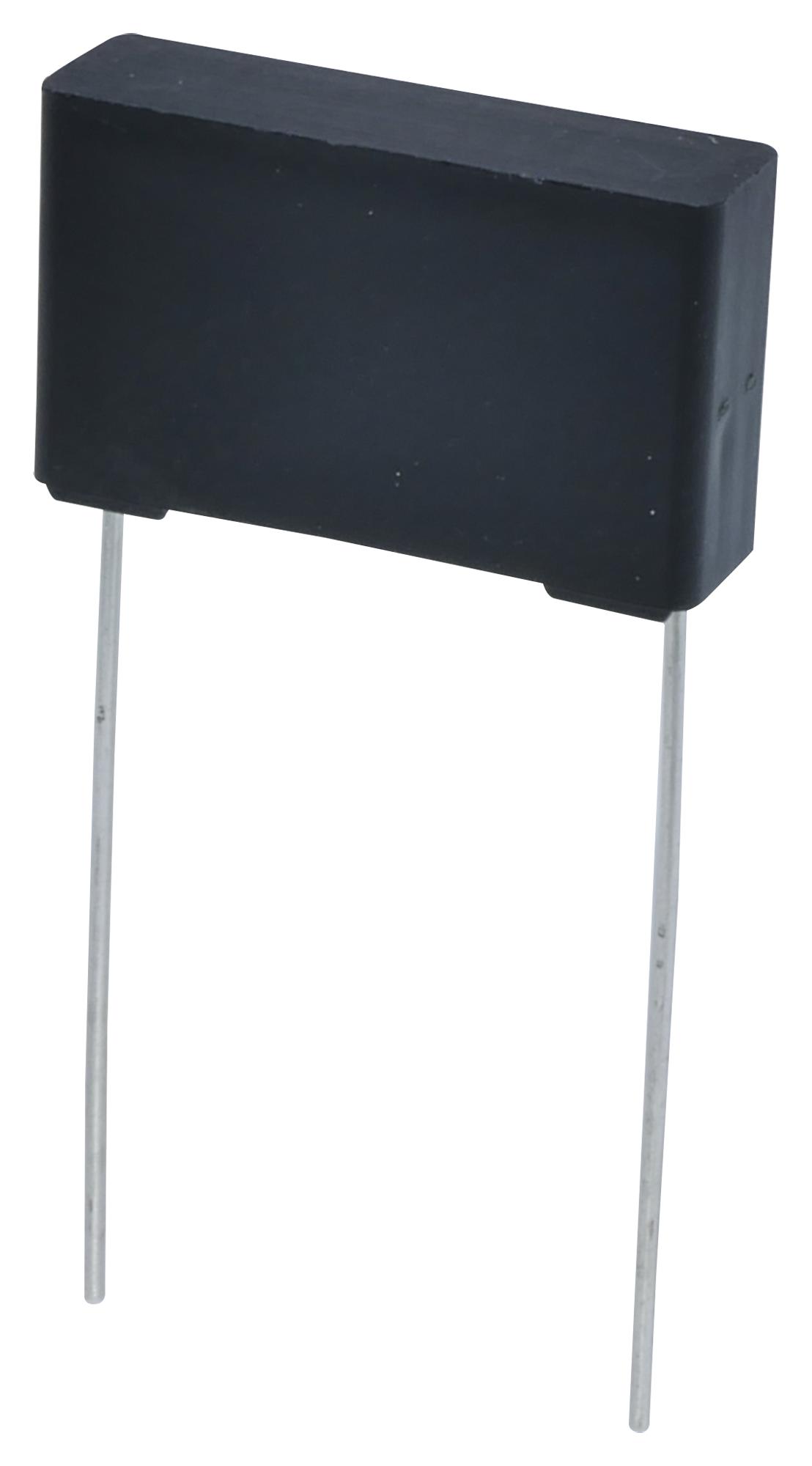

Panasonic ECWFE2J225Q5 Plastic Film Capacitor
The Panasonic ECWFE series plastic film capacitors are metallized polypropylene capacitors featuring non-inductive construction, a flame-retardant plastic case, and excellent frequency characteristics. Suitable for active filter and high-frequency circuits, these compact capacitors offer low loss, RoHS compliance, and a wide voltage range up to 630 VDC. They are designed with variant lead forms and capacitance tolerances (+5%/-10%). Their robust construction ensures reliable performance in demanding electronic applications, making them ideal for precision filtering and RF circuits with temperature ratings from -40°C to +105°C.
Panasonic ECWFE2J225Q5 Plastic Film Capacitor Specifications:
- Dielectric: Metallized Polypropylene film
- Rated Voltage: 450 VDC to 630 VDC
- Capacitance Range: 0.1 µF to 4.7 µF
- Capacitance Tolerance: +5%, -10%
- Temperature Range: -40°C to +105°C
- Dissipation Factor (tan d): ≤ 0.1% (20°C, 1 kHz)
- Insulation Resistance: ≥ 10,000 MΩ at 20°C
- Peak Voltage: Less than 450 VDC (for 450 VDC series), Less than 630 VDC (for 630 VDC series)
- Lead Forms: Straight or Cut Lead
- Physical Dimensions: Length varies from 13 mm to 26 mm, Width approx. 5-16 mm
- Flame Retardant Plastic Case: Yes
- RoHS Compliant: Yes
Buy the Buy Panasonic Plastic Film Capacitors Part Number ECWFE2J225Q5 Online
Order the Panasonic ECWFE2J225Q5 plastic film capacitor online today and benefit from reliable performance in RF and active filter circuits. This high-quality component offers excellent frequency characteristics, low loss, and robust construction with flame-retardant material. Suitable for applications requiring voltages up to 630 VDC, it ensures durability under high-temperature conditions from -40°C to +105°C. With easy lead options, precise capacitance tolerances, and RoHS compliance, buying online ensures fast delivery and competitive prices for your electronic assembly needs.
Buy Panasonic ECWFE2J225Q5 now and experience unmatched reliability and performance in high-frequency filtering applications.
Frequently Asked Questions
Where can I buy Panasonic ECWFE2J225Q5?
You can click on the BUY or RFQ button to purchase ECWFE2J225Q5 from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part ECWFE2J225Q5?
You can download the ECWFE2J225Q5 datasheet or visit the Panasonic website for support.
Who is the manufacturer of ECWFE2J225Q5?
Panasonic
