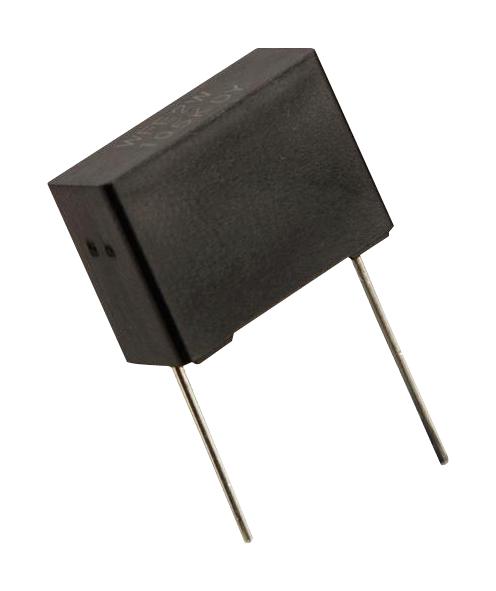

Panasonic ECWFE2J474QD High-Frequency Film Capacitor
The Panasonic ECWFE series is a reliable metallized polypropylene film capacitor designed for high-frequency and active filter circuits. It features non-inductive construction with flame retardant plastic casing, ensuring safety and stability in industrial applications. Its small size, excellent frequency response, low loss, and RoHS compliance make it suitable for various electronic and power filtering needs. The capacitor has a rated voltage of 630 V.DC, capacitance range from 0.10 to 4.7 UF, and offers options for straight or cut leads, maintaining high performance under demanding conditions.
Panasonic ECWFE2J474QD High-Frequency Film Capacitor Specifications:
- Dielectric: Metallized Polypropylene
- Rated Voltage: 630 V.DC
- Capacitance Range: 0.10 UF to 4.7 UF
- Capacitance Tolerance: +5% (J), +10% (K)
- Tolerance code: 5 or D for 0.10 and 0.15 UF, 8 or L for 2.2 UF
- Dissipation Factor (tan d): ≤ 0.1% at 20°C, 1 kHz
- Temperature Range: -40°C to +105°C
- Peak Voltage: Less than 630 V.DC (20°C, 60s)
- Insulation Resistance: ≥ 1000 MΩ at rated voltage, 20°C
- Lead Types: Straight or Cut lead options
- Dimensions: Length approximately 17.5-26.0 mm, Width 5.0-16.0 mm
- Flame Retardant Case: Plastic casing complying with safety standards
- RoHS Compliant
- Application: High-frequency filter, active filter circuit
Buy the Panasonic ECWFE Series – Reliable High-Frequency Film Capacitor for Industrial Applications
Purchase the Panasonic ECWFE series high-frequency film capacitor online to enhance your electronic circuits with reliable, flame-retardant construction and low-loss performance. Designed for industrial and power filter applications, this capacitor ensures stability at high voltages up to 630 V.DC. It features compact dimensions with straight or cut leads, offering easy installation. RoHS compliant and built with metallized polypropylene dielectric, it provides excellent frequency characteristics and minimal loss, making it an ideal choice for demanding high-frequency filter circuits in various industrial equipment.
Order your Panasonic ECWFE Series high-frequency polypropylene film capacitor today and ensure your projects benefit from dependable, RoHS-compliant quality.
Frequently Asked Questions
Where can I buy Panasonic ECWFE2J474QD?
You can click on the BUY or RFQ button to purchase ECWFE2J474QD from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part ECWFE2J474QD?
You can download the ECWFE2J474QD datasheet or visit the Panasonic website for support.
Who is the manufacturer of ECWFE2J474QD?
Panasonic
