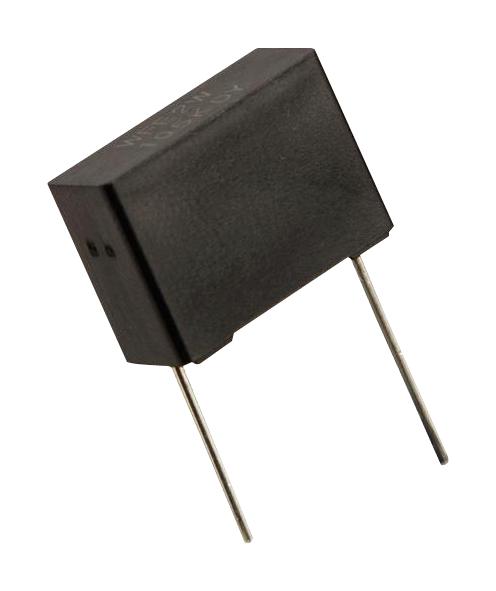

Panasonic ECWFE2W105JA Metallized Polypropylene Capacitor
This high-performance metallized polypropylene film capacitor features non-inductive construction within a flame-retardant plastic case. It boasts excellent frequency characteristics, low loss, and low hum noise, making it ideal for high-frequency circuits and active filter applications. It operates within a temperature range of -40 °C to +105 °C and offers a capacitance range from 0.10 to 2.2 μF depending on the voltage rating. Suitable for demanding electronic applications requiring reliability, it complies with RoHS standards and provides safe, stable performance over its service life.
Panasonic ECWFE2W105JA Metallized Polypropylene Capacitor Specifications:
- Capacitance range: 0.10 to 2.2 μF
- Rated voltages: 450 V DC, 630 V DC
- Temperature range: -40°C to +105°C
- Peak voltage: <450V for 450V type, <630V for 630V type
- Dissipation factor (tan δ): ≤ 0.1% at 20°C, 1 kHz
- Capacitance tolerance: ±5% (J), ±10% (K)
- Insulation resistance: > 30,000 MΩ at 60s (for >0.33 μF), > 9,000 MΩ for ≤0.33 μF
- Withstand voltage: 1.5 x rated voltage for 60s
- Dimensions vary depending on capacitance and lead type, typically length 13-31 mm, height 10-19 mm
- RoHS compliant, flame-retardant epoxy resin coating
- Low noise, suitable for high-frequency power circuits and filtering
- Long-term stability and reliability in demanding environments
Buy the Buy Panasonic Industry Plastic Film Capacitors Part Number ECWFE2W105JA Online
Experience the superior quality and reliability of Panasonic's metallized polypropylene film capacitors. Ideal for high-frequency filters and power circuits, this flame-retardant capacitor offers low noise, excellent frequency characteristics, and RoHS compliance. Its compact size makes it suitable for space-constrained applications. Designed with robustness and safety in mind, Panasonic capacitors ensure long-term stable operation in demanding electronics. Purchase online today to benefit from quick delivery and guaranteed authentic Panasonic quality for your high-performance electronic projects.
Buy Panasonic ECWFE2W105JA now and experience reliable performance in high-frequency circuits with flame retardant features.
Frequently Asked Questions
Where can I buy Panasonic ECWFE2W105JA?
You can click on the BUY or RFQ button to purchase ECWFE2W105JA from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part ECWFE2W105JA?
You can download the ECWFE2W105JA datasheet or visit the Panasonic website for support.
Who is the manufacturer of ECWFE2W105JA?
Panasonic
