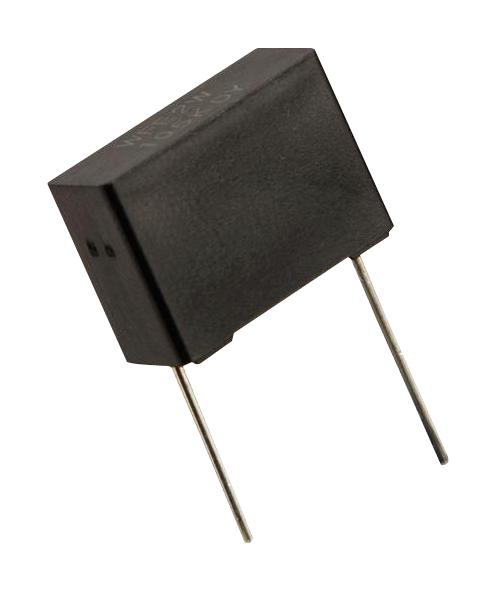

Panasonic ECWFE2W224K Metallized Polypropylene Capacitor
The Panasonic ECWFE series metallized polypropylene film capacitor offers excellent frequency characteristics, low loss, and flame retardant plastic case suitable for high frequency and high current circuits. It features non-inductive construction, compact size, and RoHS compliance, making it ideal for filter applications with a voltage rating of 450V DC or 630V DC. Its robust design ensures reliability in electronic circuitry, with wide capacitance ranges from 0.1 pF to 4.7 μF, suitable for various industrial and electronic uses where high performance and safety are critical.
Panasonic ECWFE2W224K Metallized Polypropylene Capacitor Specifications:
- Category temperature range: -40°C to +105°C
- Rated voltage: 450 V.DC or 630 V.DC with derating at high temperatures
- Capacitance range: 0.1 pF to 4.7 μF
- Capacitance tolerance: ±5% (J), ±10% (K)
- Dissipation factor (tan δ): ≤0.1% at 20°C, 1 kHz
- Insulation resistance: 30,000 MΩ for C<0.33 pF, 10,000 MΩ for C>0.33 pF
- Peak voltage: less than 240 Vp-p for 450V DC, less than 400 Vp-p for 630V DC
- Body: Flame retardant plastic case, non-combustible resin
- Lead material: Tin-plated copper-clad steel wire
- Physical Dimensions: Length 13-26 mm, Width 5-12 mm, Height 10.5-19 mm depending on capacitance
- Construction: Metallized polypropylene film, non-inductive, flame-retardant case
- Marking: Part number, capacitance, voltage, date code
- RoHS compliant
Buy the Panasonic Series ECWFE Metallized Polypropylene Capacitor: ECWFE2W224K
Purchase the Panasonic ECWFE series metallized polypropylene film capacitor online today and enjoy superior quality, excellent frequency characteristics, and low loss design. Perfect for high-frequency and high-current applications, its flame retardant plastic case and RoHS compliance ensure safety and environmentally friendly operation. With a broad capacitance range from 0.1 pF to 4.7 μF, this capacitor provides reliable performance in filter circuits and high-frequency electronic systems.Order now and enhance your electronic projects with durable, high-performance film capacitors built for demanding environments.
Buy Panasonic ECWFE2W224K now and experience unmatched reliability and performance with high frequency and high current circuit compatibility.
Frequently Asked Questions
Where can I buy Panasonic ECWFE2W224K?
You can click on the BUY or RFQ button to purchase ECWFE2W224K from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part ECWFE2W224K?
You can download the ECWFE2W224K datasheet or visit the Panasonic website for support.
Who is the manufacturer of ECWFE2W224K?
Panasonic
