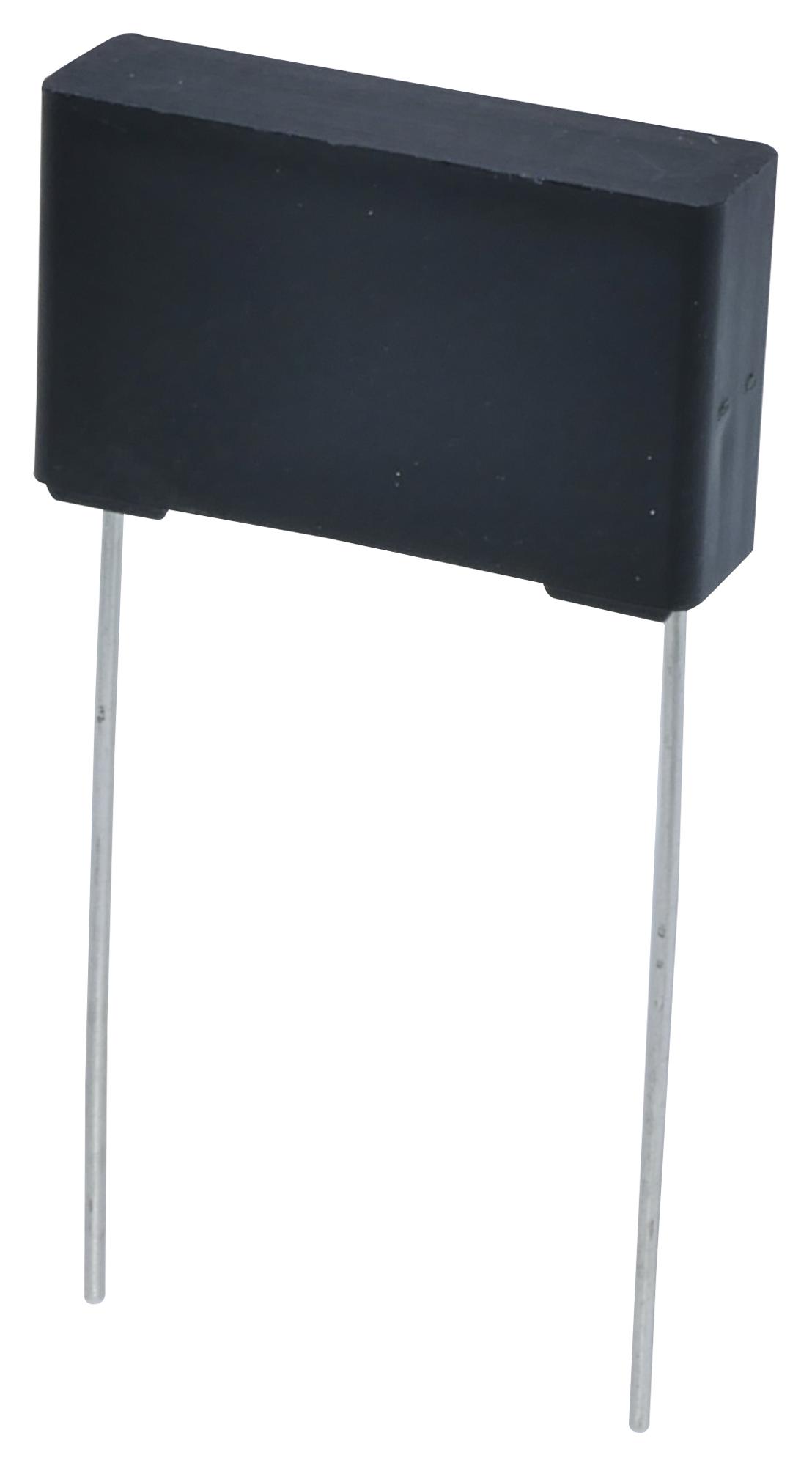

Panasonic ECWFE2W225P8 Polypropylene Film Capacitor
Panasonic Metallized Polypropylene film capacitor series ECWFE offers non-inductive construction with a flame retardant plastic case, ideal for high-frequency and active filter circuits. These compact, RoHS-compliant capacitors feature excellent frequency characteristics, low loss, and low noise operation. Suitable for applications requiring reliable, flame-retardant components with specific ratings up to 630 VDC, they provide precise capacitance with tolerances of ±5% or +10%. Detailed specifications include dimensions, rated voltage, capacitance range, dissipation factor, and insulation resistance, making them suitable for various electronic filtering and high-frequency circuit applications.
Panasonic ECWFE2W225P8 Polypropylene Film Capacitor Specifications:
- Rated voltage: 450 V.DC and 630 V.DC
- Capacitance: 0.10 μF to 4.7 μF
- Capacitance tolerance: +5% (J), +10% (K)
- Material: Metallized Polypropylene film with flame retardant plastic case
- Dimensions: Length varies with model, typically around 13.0 to 26.0 mm; Width: 5.0 to 13.0 mm; Height: 10.5 to 19.0 mm
- Dissipation factor (tan d): ≤ 0.1% (20°C, 1 kHz)
- Insulation resistance: ≥ 10,000 MΩ at 20°C
- Peak voltage: Less than 450 VDC or 630 VDC depending on model
- Operating temperature range: -40°C to +105°C
- Lead options: Straight or cut leads with tin-plated copper-clad steel wires
Buy the Panasonic ECWFE Series – Reliable Polypropylene Film Capacitors for Industrial Applications
Enhance your electronic circuits with Panasonic's high-quality polypropylene film capacitors from the ECWFE series. Perfect for active filter and high-frequency applications, these capacitors feature flame retardant plastic cases, RoHS compliance, and precise ratings up to 630 VDC. Their excellent frequency characteristics, low loss, and compact size make them ideal for professional electronic designs. Available in various capacitance values with tight tolerances and a range of lead options, these capacitors provide dependable, safe, and efficient performance for industrial and high-frequency circuit applications.
Order your Panasonic ECWFE Series film capacitors today and ensure your electronic projects benefit from proven reliability, high-frequency performance, and flame retardant safety.
Frequently Asked Questions
Where can I buy Panasonic ECWFE2W225P8?
You can click on the BUY or RFQ button to purchase ECWFE2W225P8 from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part ECWFE2W225P8?
You can download the ECWFE2W225P8 datasheet or visit the Panasonic website for support.
Who is the manufacturer of ECWFE2W225P8?
Panasonic
