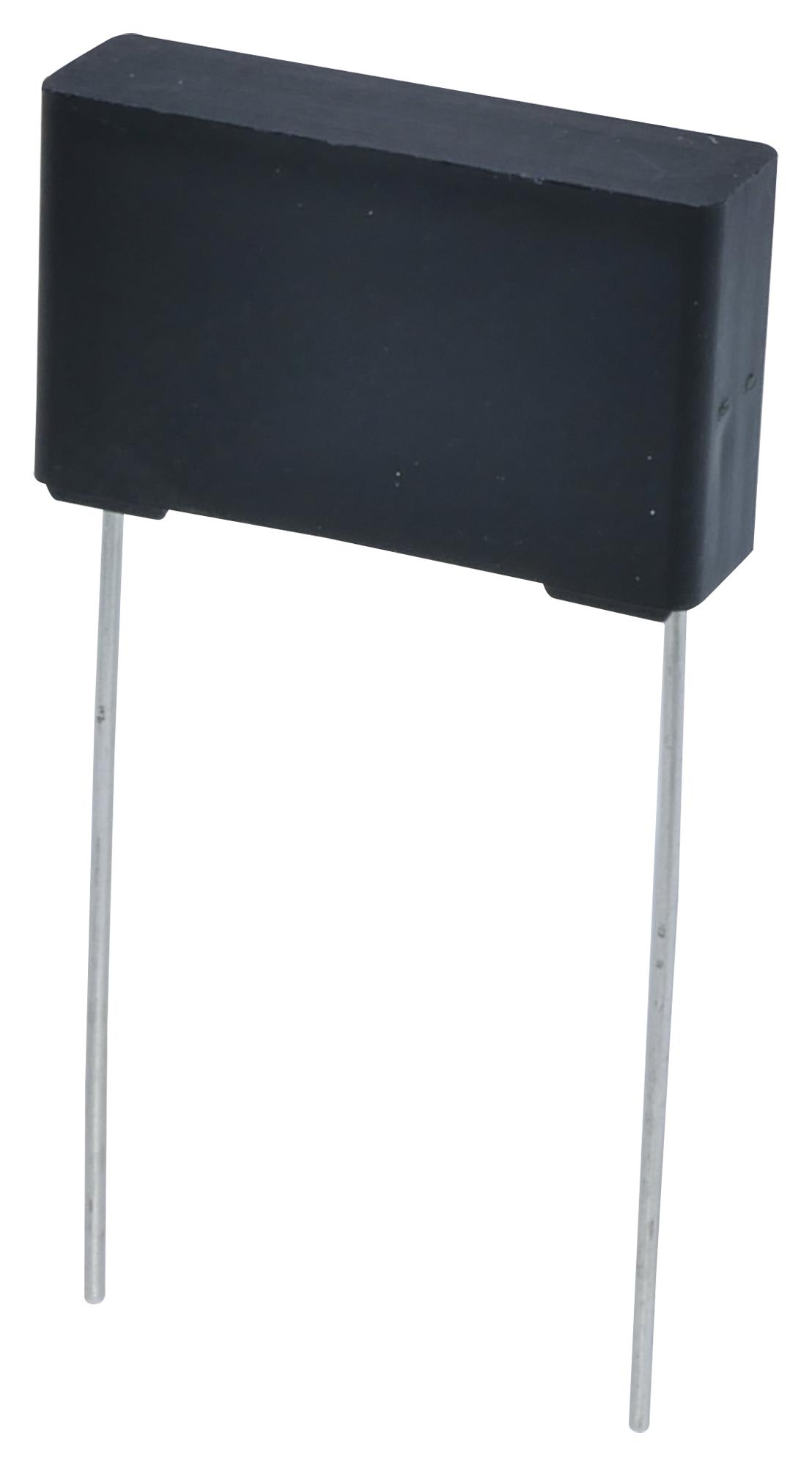

Panasonic ECWFE2W334P5 Film Capacitor
Panasonic ECWFE series metallized polypropylene film capacitors feature non-inductive construction with flame retardant plastic cases, making them ideal for high-frequency and active filter circuits. These small-sized, RoHS compliant capacitors offer excellent frequency characteristics, low loss, and minimal noise. Suitable for applications requiring withstand voltages of 450 VDC or 630 VDC, they provide reliable performance with specified capacitance tolerance and high insulation resistance. Designed for both straight and crimped leads, they ensure durability and safety in demanding electronic circuits.
Panasonic ECWFE2W334P5 Film Capacitor Specifications:
- Dielectric: Metallized Polypropylene film
- Rated voltage: 450 VDC or 630 VDC
- Capacitance range: 0.10 UF to 4.7 UF (450 VDC), 0.1 pF to 2.2 UF (630 VDC)
- Capacitance tolerance: +5% (J), +10% (K)
- Dissipation factor (tan d): ≤ 0.1% at 20°C, 1 kHz
- Insulation resistance: ≥ 30,000 MΩ at 20°C, 0.33 μF (with detailed IR values per capacitance)
- Dimensions: Vary by model, typical length approximately 13-26 mm, height 5-12 mm, width 10-15 mm
- Temperature range: -40°C to +105°C
- Peak voltage: Less than 450 VDC or 630 VDC depending on voltage class
- Life expectancy: Designed for reliable operation in high-frequency applications
- Case: Flame retardant plastic, non-combustible resin
- Lead form: Straight or cut lead options available
- RoHS compliant, with safety and manufacturing standards maintained
Buy the Panasonic Series ECWFE Film Capacitor: ECWFE2W334P5
Enhance your circuit design with the Panasonic ECWFE series film capacitors, known for high-frequency stability, low loss, and flame-retardant safety. Ideal for active filters and RF applications, these capacitors are compact and RoHS compliant. With rated voltages of 450 VDC and 630 VDC and a wide capacitance range, they deliver precise performance. Their durable plastic case and reliable insulative properties ensure long-term dependability in demanding electrical projects. Purchase online today for quality and performance you can trust.
Order your Panasonic Series ECWFE2W334P5 high-frequency film capacitor today and give your electronic projects dependable, RoHS-compliant quality.
Frequently Asked Questions
Where can I buy Panasonic ECWFE2W334P5?
You can click on the BUY or RFQ button to purchase ECWFE2W334P5 from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part ECWFE2W334P5?
You can download the ECWFE2W334P5 datasheet or visit the Panasonic website for support.
Who is the manufacturer of ECWFE2W334P5?
Panasonic
