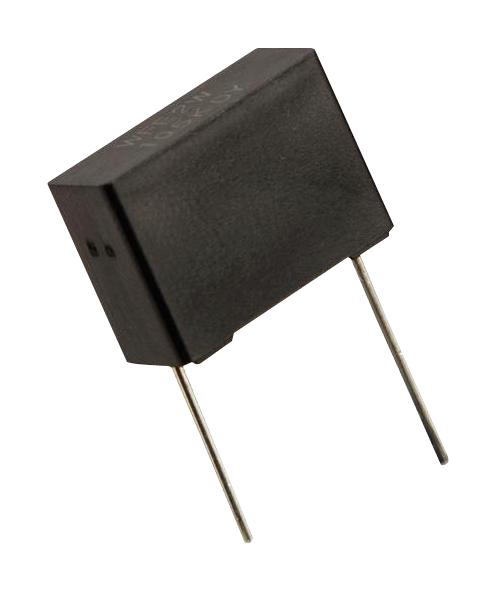

Panasonic ECWFG1B405JA High-Voltage Film Capacitor
The Panasonic ECWFG series plastic film capacitors are designed for automotive and high-frequency applications, featuring metallized polypropylene film with flame-retardant plastic cases. They offer high safety, moisture resistance, and thermal shock endurance across rated voltages of 630V.DC and 1100V.DC. Suitable for DC/DC and AC/DC converters, these capacitors have a non-inductive construction, compliance with AEC-Q200, RoHS, and feature safety functions, high moisture resistance at 85°C, and withstand high temperatures up to 125°C, making them reliable for demanding automotive and industrial environments.
Panasonic ECWFG1B405JA High-Voltage Film Capacitor Specifications:
- Rated voltage: 630 V.DC or 1100 V.DC with derating at temperatures above 85°C
- Capacitance range: 1.0 to 5.0 μF for 1100 V.DC; 1.0 to 3.0 μF for 630 V.DC
- Capacitance tolerance: +5% (J), +10% (K)
- Dissipation factor (tan d): ≤0.1% at 20°C, 1 kHz
- Operating temperature range: -55°C to +85°C, up to +110°C surface temperature
- Dimensions: Length varies from 27.0 mm to 31.5 mm depending on model, with heights up to 26.5 mm
- Lead pitch options: 22.5 mm and 27.5 mm, with straight or cut leads
- Insulation resistance: ≥3,000 MΩ·μF at 20°C, 500 V.DC for 60 seconds
- Withstand voltage: 150% of rated voltage for 60 seconds
- Flame-retardant plastic case, non-combustible resin, RoHS and AEC-Q200 compliant
Buy the Panasonic Series ECWFG Metalized Polypropylene Capacitor: ECWFG1B405JA
Purchase the Panasonic ECWFG1B405JA high-voltage film capacitor online today and experience its superior safety features, outstanding moisture and temperature resistance, and suitability for high-frequency and automotive applications. Designed with a flame-retardant plastic case and non-inductive construction, this capacitor guarantees durability and performance in demanding industrial environments. Ideal for DC/DC and AC/DC converter circuits, it complies with RoHS and AEC-Q200 standards, ensuring safe, reliable operation in automotive, industrial, and high-frequency electronic systems. Order now for quick delivery and assured quality!
Buy Panasonic ECWFG1B405JA high-voltage film capacitor now and ensure reliable performance in automotive and industrial high-frequency circuits.
Frequently Asked Questions
Where can I buy Panasonic ECWFG1B405JA?
You can click on the BUY or RFQ button to purchase ECWFG1B405JA from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part ECWFG1B405JA?
You can download the ECWFG1B405JA datasheet or visit the Panasonic website for support.
Who is the manufacturer of ECWFG1B405JA?
Panasonic
