Panasonic ECWFG2J105J Automotive Film Capacitor
This metallized polypropylene film capacitor series is designed for automotive applications, offering high safety with safety functions, excellent moisture resistance at 85°C, and robust thermal shock resistance from -55°C to 85°C. It features flame-retardant plastic cases, high voltage capacity up to 1100 V DC, and complies with AEC-Q200 and RoHS standards. Suitable for DC/DC and high-frequency high-current circuits in xEV electric vehicles, these non-inductive, flame-retardant capacitors ensure reliable performance even in harsh environments, making them ideal for modern automotive power and noise filtering applications.
Panasonic ECWFG2J105J Automotive Film Capacitor Specifications:
- Rated voltage: 600 V to 1100 V DC
- Capacitance: 1.0 pF to 12.0 μF
- Capacitance tolerance: +5% (J), +10% (K)
- Lead pitch options: 22.5mm and 27.5mm
- Operating temperature range: -55°C to 85°C
- Maximum surface temperature: 85°C
- Dissipation factor: ≤0.1% at 20°C, 1kHz
- Insulation resistance: ≥3,000 MΩ·μF at 20°C, 500V DC
- Pulse current derating: based on dV/dt, up to 10,000 cycles
- Standards compliance: AEC-Q200, RoHS
- Construction: Non-inductive, flame-retardant plastic case
- Application: DC/DC, AC/DC converters, high frequency and current circuits in xEV

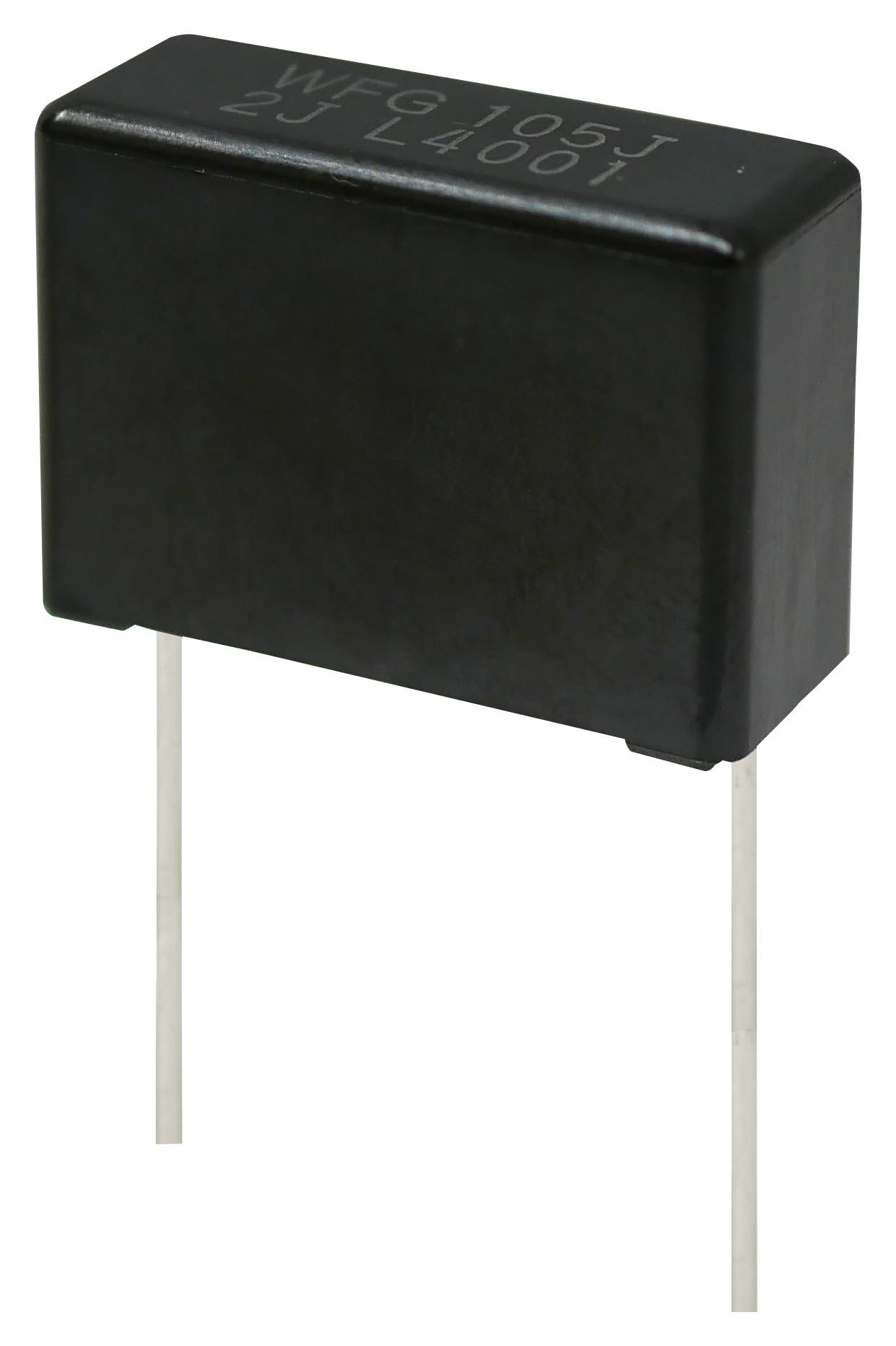

Buy the Panasonic Series ECWFG Automotive Capacitor: ECWFG2J105J
Purchase the Panasonic ECWFG series automotive metallized polypropylene film capacitors online today. Designed for high safety, moisture resistance, flame-retardant cases, and voltages up to 1100 V DC, these capacitors ensure reliable operation in demanding automotive environments. Suitable for noise filtering, DC/DC and AC/DC conversion circuits in electric vehicles, they provide excellent thermal shock resistance and low dissipation factor. Enjoy quick delivery, trusted quality, and superior performance for your automotive and high-frequency electronic applications.
Get Panasonic ECWFG2J105J today—built for automotive safety and long-lasting high-voltage performance.
Frequently Asked Questions
Where can I buy Panasonic ECWFG2J105J?
You can click on the BUY or RFQ button to purchase ECWFG2J105J from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part ECWFG2J105J?
You can download the ECWFG2J105J datasheet or visit the Panasonic website for support.
Who is the manufacturer of ECWFG2J105J?
Panasonic
