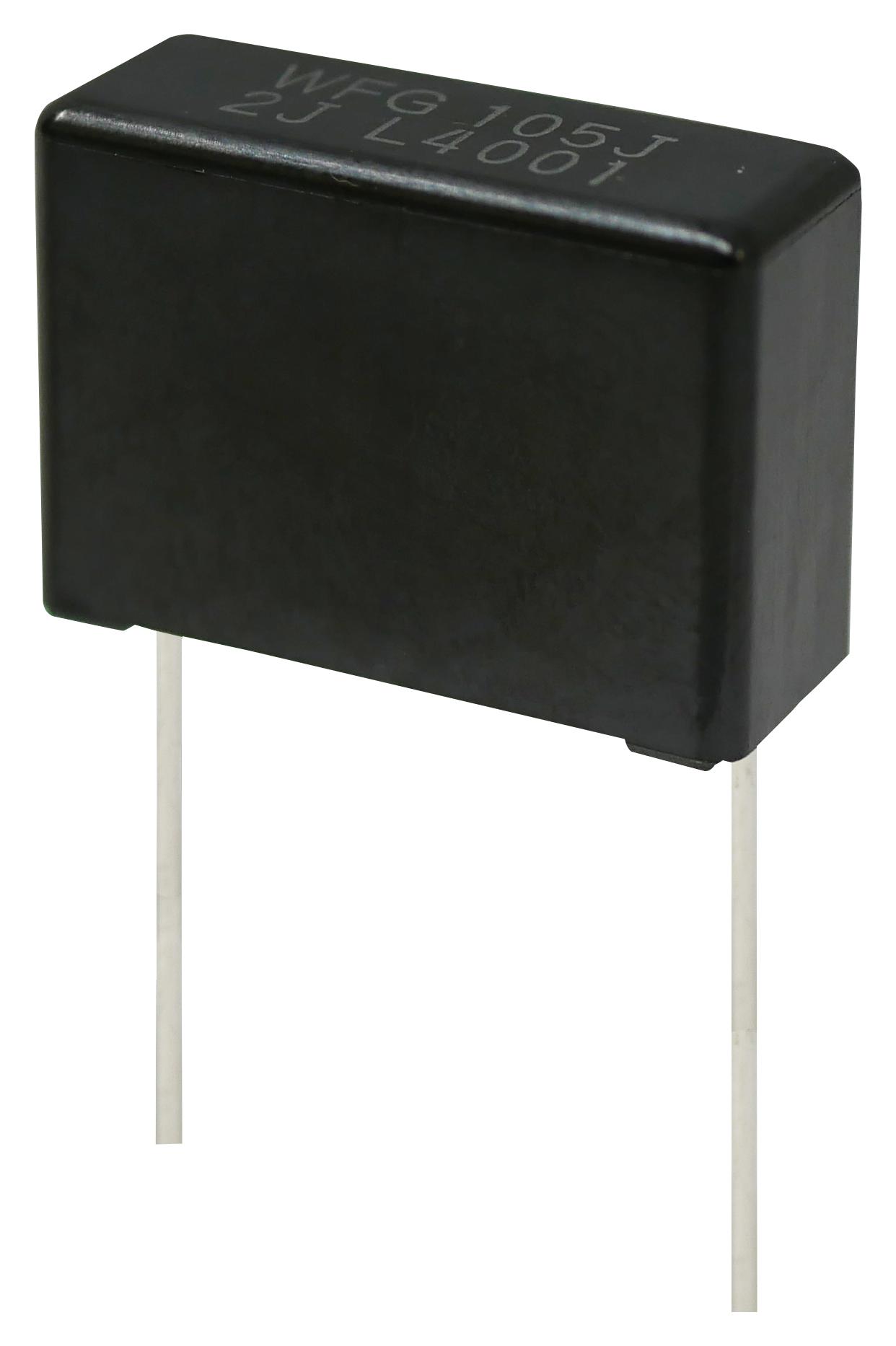

Panasonic ECWFG2J105JA Automotive Film Capacitor
The metallized polypropylene film capacitor is designed for automotive applications, offering high safety, moisture resistance, and thermal shock resistance. With non-inductive construction and flame retardant plastic case, it complies with safety standards such as AEC-Q200 and RoHS. Rated voltages range from 600V to 1100V, with capacitance options from 1.0 pF to 12.0 μF. Suitable for high-frequency, high-current circuits, it features low dissipation factor, high insulation resistance, and excellent vibration resistance, ensuring reliable performance in demanding electronic environments.
Panasonic ECWFG2J105JA Automotive Film Capacitor Specifications:
- Rated voltages: 600V, 630V, 700V, 800V, 1100V
- Capacitance range: 1.0 pF to 12.0 μF
- Capacitance tolerance: +5% (J), +10% (K)
- Lead pitch options: 22.5mm, 27.5mm
- Temperature range: -40°C to +110°C
- Dissipation factor: tan δ ≤ 0.1% (20°C, 1kHz)
- Insulation resistance: ≥ 3,000 MΩ-μF at 20°C, 500V DC
- Maximum leakage current: conforms to safety standards
- High moisture and thermal shock resistance with 1000 cycle testing
- Flame-retardant epoxy resin coating for safety
- RoHS and AEC-Q200 compliant for automotive reliability
- Suitable for high-frequency and high-current power circuits, including DC/DC and AC/DC converters
Buy the Panasonic Series ECWFG: Metallized Polypropylene Film Capacitor 600V-1100V
Purchase your Panasonic Series ECWFG automotive film capacitor online now and benefit from high safety standards, moisture resistance, and thermal shock durability. Perfect for high-frequency, high-current circuits in automotive electronics, including xEV conversions and converter circuits. With rated voltages up to 1100V and capacitance options from 1.0 pF to 12 μF, these capacitors provide excellent insulation resistance, low dissipation factor, and flame retardant coatings. Ensure your electronic systems operate safely and reliably — buy online today and enhance your project’s performance.
Order your Panasonic Series ECWFG automotive film capacitor today and ensure high reliability in your high-frequency, high-current electronic projects.
Frequently Asked Questions
Where can I buy Panasonic ECWFG2J105JA?
You can click on the BUY or RFQ button to purchase ECWFG2J105JA from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part ECWFG2J105JA?
You can download the ECWFG2J105JA datasheet or visit the Panasonic website for support.
Who is the manufacturer of ECWFG2J105JA?
Panasonic
