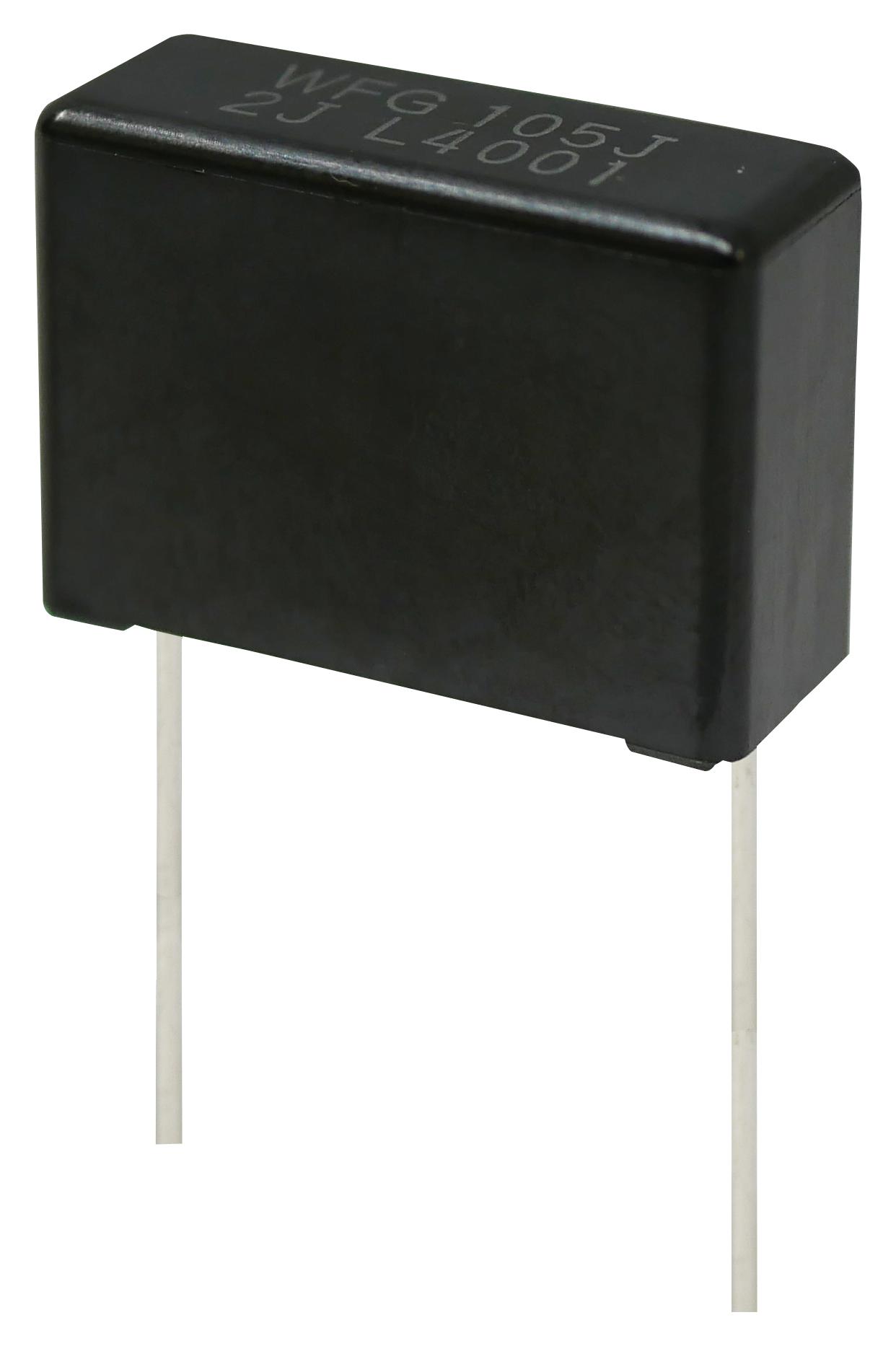

Panasonic ECWFG2J155JA High-Voltage Automotive Film Capacitor
Metallized polypropylene film capacitor with non-inductive construction, high safety and moisture resistance suitable for automotive high-frequency and high-current applications. Features flame retardant plastic case, high thermal shock resistance from -55°C to 85°C, and dielectric ratings up to 1100 V. Ideal for DC/DC and AC/DC converter circuits in xEV vehicles, with RoHS and AEC-Q200 compliance. Designed to withstand voltage derating at elevated temperatures, ensuring reliable performance in demanding environments.
Panasonic ECWFG2J155JA High-Voltage Automotive Film Capacitor Specifications:
- Rated voltage: 600 V to 1100 V DC (derated at >85°C by 1.0 %/°C)
- Capacitance: 2.2 uF
- Capacitance tolerance: ±10 %
- Lead pitch: 27.5 mm
- Dimensions: L 31.5 mm, T 12.0 mm, H 24.5 mm, F 27.5 mm
- Self-heating temperature rise: within specified limits for high frequency
- Insulation resistance: ≥3,000 MΩ·uF at 20°C, 500 V DC
- Dissipation factor: ≤0.1 % at 20°C, 1 kHz
- Temperature range: -55°C to 85°C with performance derating
- Compliance: RoHS, AEC-Q200
Buy the Panasonic Series ECWFG Metallized Polypropylene High-Voltage Capacitor: ECWFG2J155JA
Purchase the Panasonic ECWFG2J155JA high-voltage metallized polypropylene film capacitor online today. Designed for automotive high-frequency and high-current applications, it features flame retardant case, moisture resistance, and high thermal shock durability. Ideal for DC/DC converters and xEV circuits, this RoHS and AEC-Q200 compliant component ensures reliable performance in demanding environments. With fast delivery and easy ordering, enhance your electronic designs with Panasonic’s proven quality and safety standards now.
Buy Panasonic ECWFG2J155JA automotive-grade metallized polypropylene film capacitor now and experience unmatched reliability and high-performance in demanding electronic circuits.
Frequently Asked Questions
Where can I buy Panasonic ECWFG2J155JA?
You can click on the BUY or RFQ button to purchase ECWFG2J155JA from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part ECWFG2J155JA?
You can download the ECWFG2J155JA datasheet or visit the Panasonic website for support.
Who is the manufacturer of ECWFG2J155JA?
Panasonic
