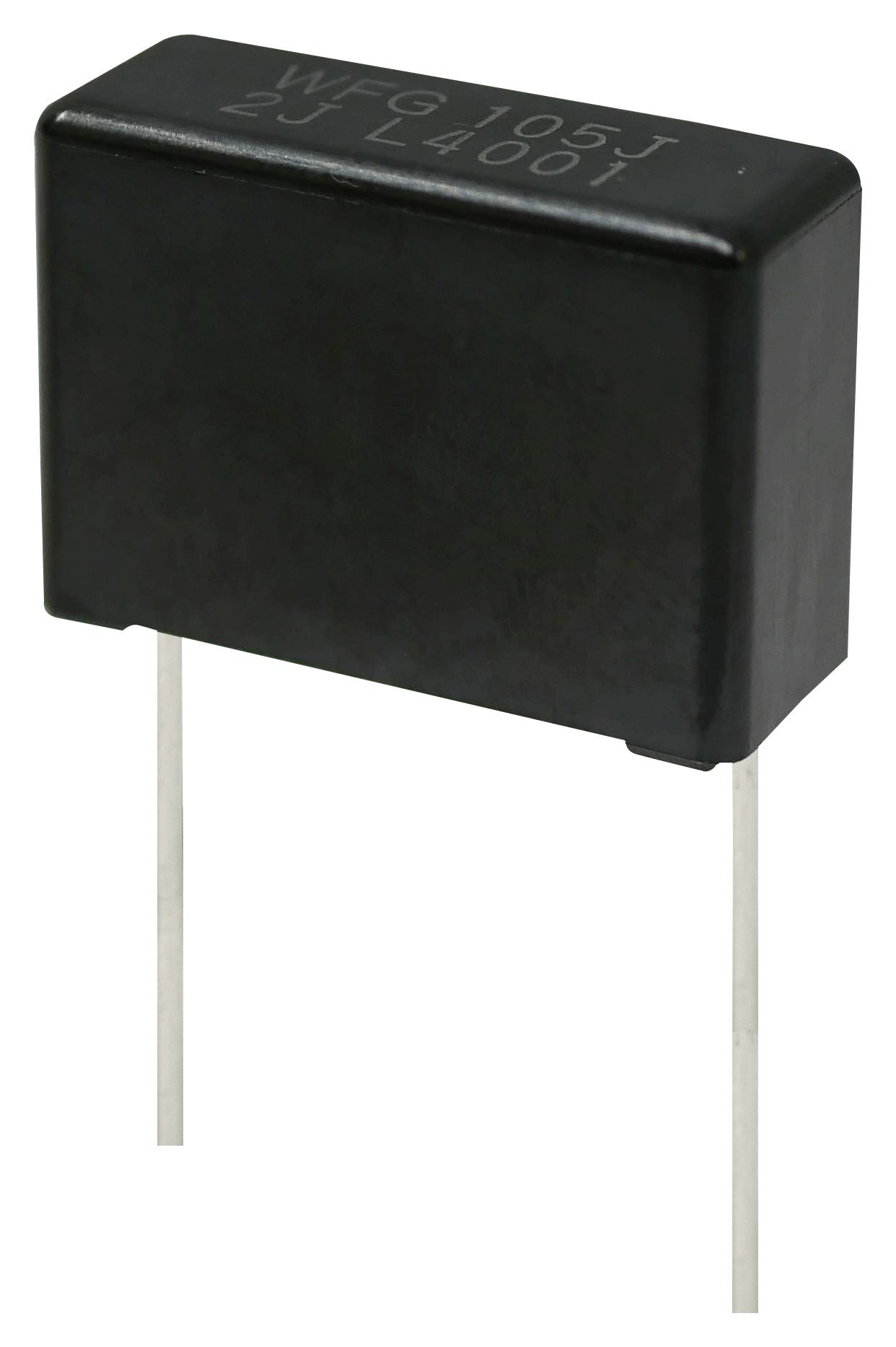

Panasonic ECWFG2J155PA Metallized Polypropylene Capacitor
The Panasonic ECWFG metallized polypropylene film capacitor series is designed for automotive and high-frequency applications. It features non-inductive construction, flame-retardant plastic cases, high moisture and thermal shock resistance, and complies with AEC-Q200 and RoHS standards. Rated voltages range from 600 V to 1100 V, with capacitance values between 1.0 pF and 12.0 uF. These capacitors are suitable for DC/DC, AC/DC converters, and circuits demanding high safety, reliability, and environmental resistance, making them ideal for use in xEV and power supply modules.
Panasonic ECWFG2J155PA Metallized Polypropylene Capacitor Specifications:
- Rated voltage: 600 V to 1100 V DC
- Capacitance: 1.0 pF to 12.0 uF (varies by series and lead pitch)
- Capacitance tolerance: ±5% (J), ±10% (K)
- Temperature range: -40°C to +110°C
- Insulation resistance: 3,000 MΩ-μF at 20°C, 500 V DC
- Dissipation factor: tan δ ≤ 0.1% at 20°C, 1 kHz
- Lead pitch: 22.5 mm or 27.5 mm, depending on series
- Flame-retardant epoxy resin coating (94V-0)
- High moisture and thermal shock resistance (600 to 1100 V: -55°C to +85°C, 1000 cycles)
- Compliance: AEC-Q200, RoHS
- Application: DC/DC, AC/DC converters, high-frequency power circuits
Buy the Panasonic Series ECWFG Metallized Polypropylene Capacitor: ECWFG2J155PA
Purchase the Panasonic ECWFG series metallized polypropylene film capacitor online today to benefit from high safety standards, excellent moisture resistance, reliable high-voltage performance, and environmental compliance. Designed for automotive and high-frequency circuits, these capacitors feature flame-retardant cases, wide temperature tolerance, and superior shock resistance. With options ranging from 600 V to 1100 V and capacitance up to 12.0 μF, they provide a dependable solution for DC/DC, AC/DC conversion, and power modules in demanding operational environments. Buy now for top-tier quality and quick delivery.
Order your Panasonic Series ECWFG155PA film capacitor today and ensure high reliability for your automotive and power supply projects.
Frequently Asked Questions
Where can I buy Panasonic ECWFG2J155PA?
You can click on the BUY or RFQ button to purchase ECWFG2J155PA from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part ECWFG2J155PA?
You can download the ECWFG2J155PA datasheet or visit the Panasonic website for support.
Who is the manufacturer of ECWFG2J155PA?
Panasonic
