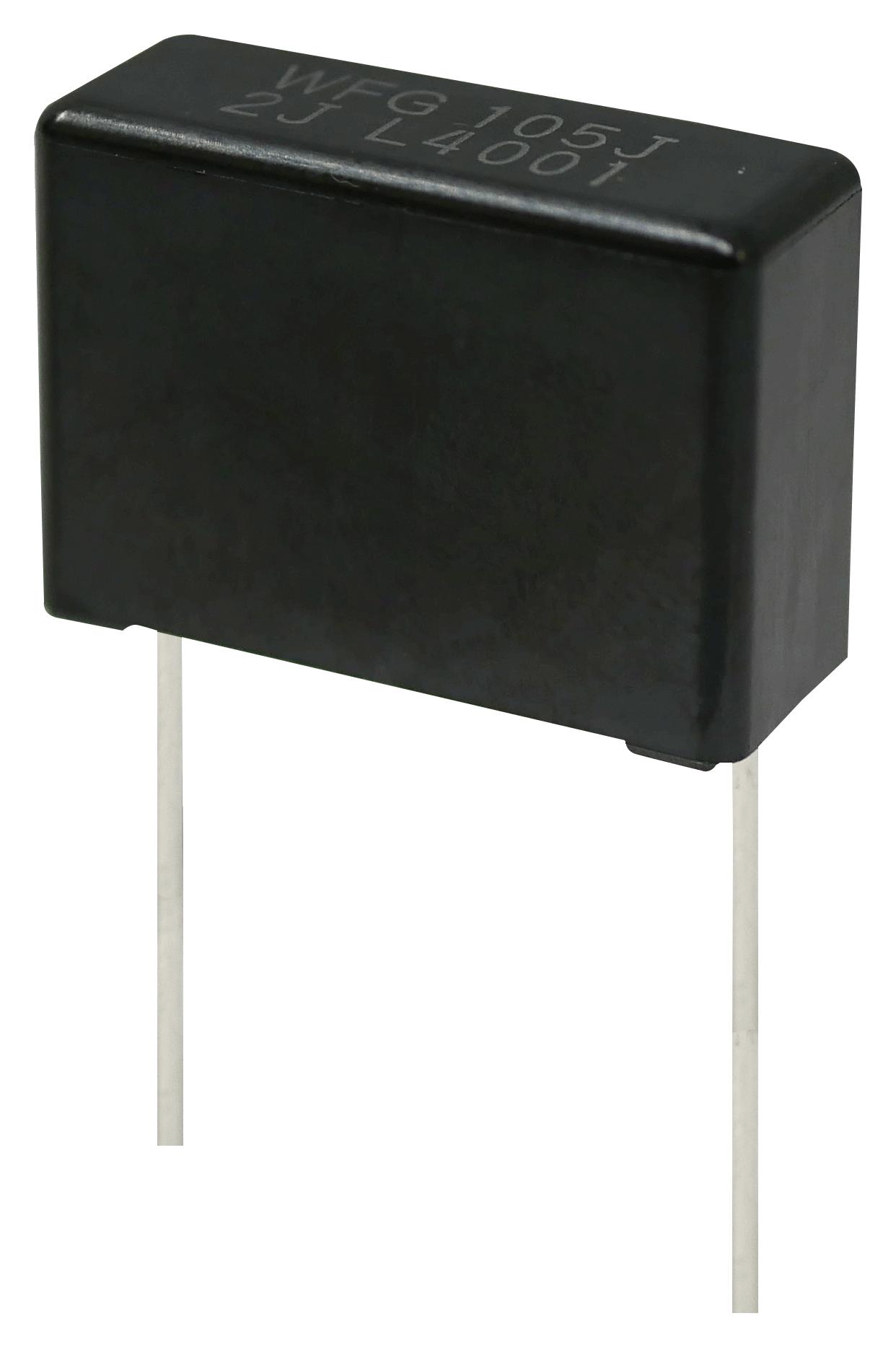

Panasonic ECWFG2J155Q1 Automotive Film Capacitor
The Panasonic ECWFG series metallized polypropylene film capacitors are designed for automotive and industrial applications, featuring non-inductive construction, flame-retardant plastic cases, high moisture resistance, and high safety features. These capacitors operate at rated voltages from 600V to 1100V, with capacitance ranges between 1.0 pF to 12.0 uF. They withstand high thermal shock, high temperature loads at 125°C, and adhere to safety standards including AEC-Q200 and RoHS. Suitable for DC/DC, AC/DC converters, and high-frequency circuits, they are reliable, durable, and compliant with international safety certifications.
Panasonic ECWFG2J155Q1 Automotive Film Capacitor Specifications:
- Rated voltage: 600 V to 1100 V DC
- Capacitance range: 1.0 pF to 12.0 uF
- Capacitance tolerance: +5%/-10%
- Lead pitch: 22.5 mm to 27.5 mm
- Operating temperature: -55°C to +110°C
- Temperature derating: 1.0%/°C beyond 85°C
- Insulation resistance: 3,000 MΩ·μF at 20°C, 500V DC
- Dissipation factor: tan δ ≤ 0.1% at 20°C, 1kHz
- Maximum pulse dV/dt: varies with capacitance and voltage, e.g., 37 V/μs for 10.22 μF at 400V
- High safety standards: AEC-Q200, RoHS compliant
- Physical size varies: e.g., length 27-32 mm, height 10-18 mm
- Flame-retardant plastic case, non-flammable resin
- Designed to endure 1000 cycles thermal shock between -55°C to +110°C
- Suitable for high-frequency and high-current applications
- Electrically robust, with high moisture resistance
Buy the Panasonic ECWFG – Reliable Automotive Film Capacitors for Industrial Applications
Purchase Panasonic automotive-grade metallized polypropylene film capacitors online to ensure reliable performance in high voltage, high temperature, and high-frequency applications. These capacitors offer high safety, moisture resistance, and compliance with international standards like AEC-Q200 and RoHS. Perfect for DC/DC and AC/DC converters, they provide superior durability, thermal shock resistance, and safety features. Buy now to integrate dependable, high-quality components into your industrial or automotive electronic systems and enjoy prompt delivery, technical support, and quality assurance for your demanding projects.
Get Panasonic ECWFG automotive capacitors today—built for high safety, moisture resistance, and long-lasting durability in demanding environments.
Frequently Asked Questions
Where can I buy Panasonic ECWFG2J155Q1?
You can click on the BUY or RFQ button to purchase ECWFG2J155Q1 from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part ECWFG2J155Q1?
You can download the ECWFG2J155Q1 datasheet or visit the Panasonic website for support.
Who is the manufacturer of ECWFG2J155Q1?
Panasonic
