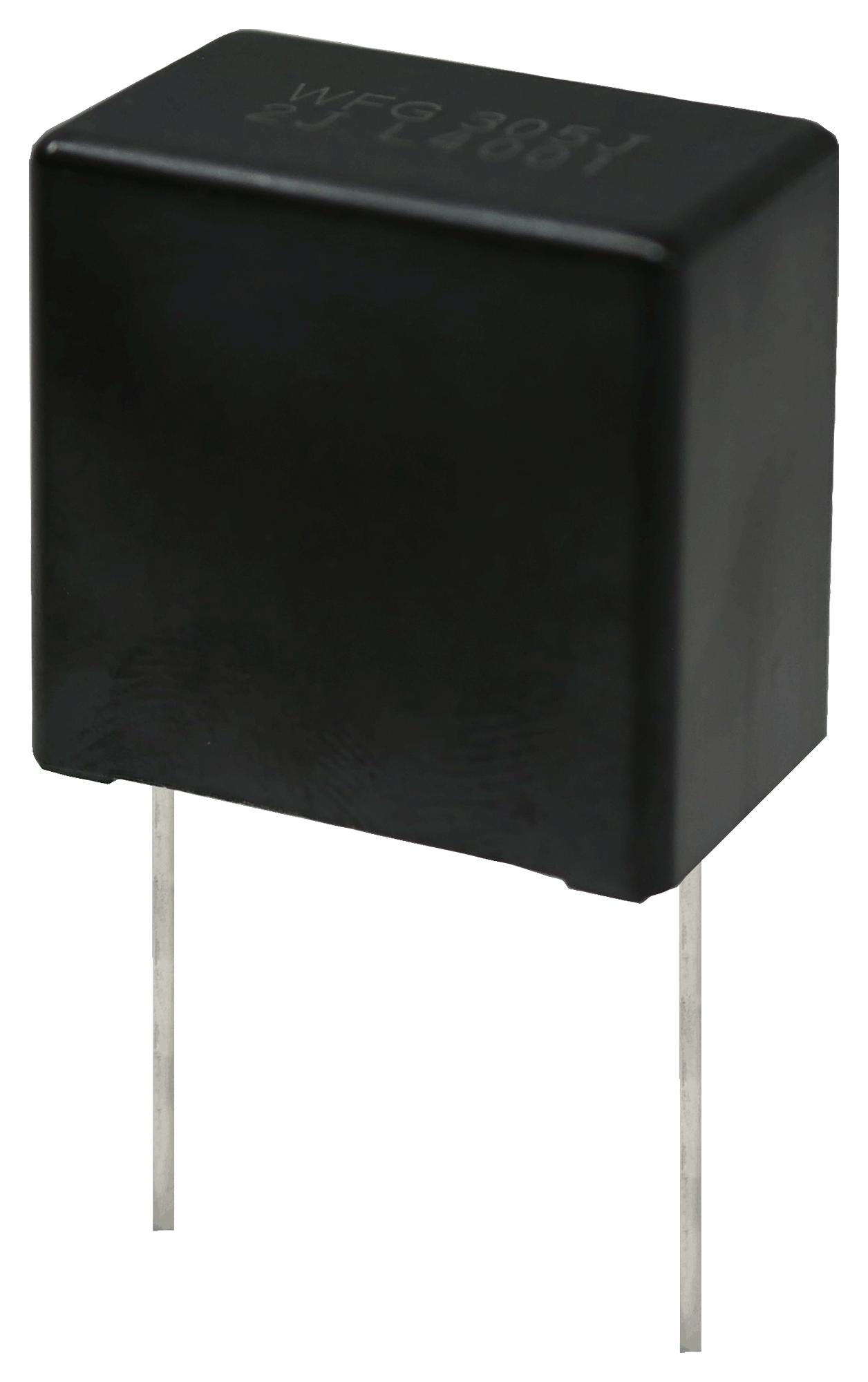

Panasonic ECWFG2J305QA Automotive Film Capacitor
The Metallized Polypropylene Film Capacitor for automotive applications features non-inductive construction with flame retardant plastic case, high moisture resistance, and excellent thermal shock resistance. Rated for voltages from 600 V to 1100 V, it offers wide capacitance ranges, high safety (with safety function), and RoHS compliance. Suitable for high-frequency, high-current circuits such as DC/DC and AC/DC converters in electric vehicles. Designed with reliable dielectric materials, it withstands extreme temperature cycles from -55°C to +110°C, ensuring long-lasting durability and safety in demanding environments.
Panasonic ECWFG2J305QA Automotive Film Capacitor Specifications:
- Rated voltage: 600 V to 1100 V DC
- Capacitance range: 1.0 pF to 12.0 μF depending on series and voltage
- Capacitance tolerance: +5% (J), +10% (K)
- Operating temperature: -55°C to +110°C (surface temperature)
- Self-healing dielectric polypropylene film, flame retardant plastic case
- High moisture and thermal shock resistance (600 to 1100 V: -55°C to +110°C, 1000 cycles)
- Insulation resistance: ≥ 3,000 MΩ-μF at 20°C
- Dissipation factor (tan δ): ≤ 0.1% (20°C, 1 kHz)
- Design complies with safety and RoHS standards
- Lead pitch options: 22.5 mm, 27.5 mm, 22 mm, 27.5 mm, 22.5 mm in various series
- Suitable for use in noise suppression, DC/DC, AC/DC, and high-current circuits in electric vehicles
Buy the Panasonic ECWFG Series Metallized Polypropylene Capacitor – Reliable Automotive Film Capacitor for Industrial Applications
Order the Panasonic ECWFG305QA automotive film capacitor online today. Designed for high voltage, moisture resistance, and thermal durability, it ensures reliable performance in demanding circuits such as DC/DC and AC/DC converters for electric vehicles. This capacitor features an ultra-stable dielectric with flame retardant case, withstands extreme temperatures from -55°C to +110°C, and offers high safety with RoHS compliance. Perfect for high-frequency, high-current industrial applications, it guarantees long-lasting durability, safety, and superior electrical stability—buy now for your automotive and industrial needs.
Get Panasonic ECWFG305QA today—built for high voltage reliability and long-lasting durability in demanding environments.
Frequently Asked Questions
Where can I buy Panasonic ECWFG2J305QA?
You can click on the BUY or RFQ button to purchase ECWFG2J305QA from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part ECWFG2J305QA?
You can download the ECWFG2J305QA datasheet or visit the Panasonic website for support.
Who is the manufacturer of ECWFG2J305QA?
Panasonic
