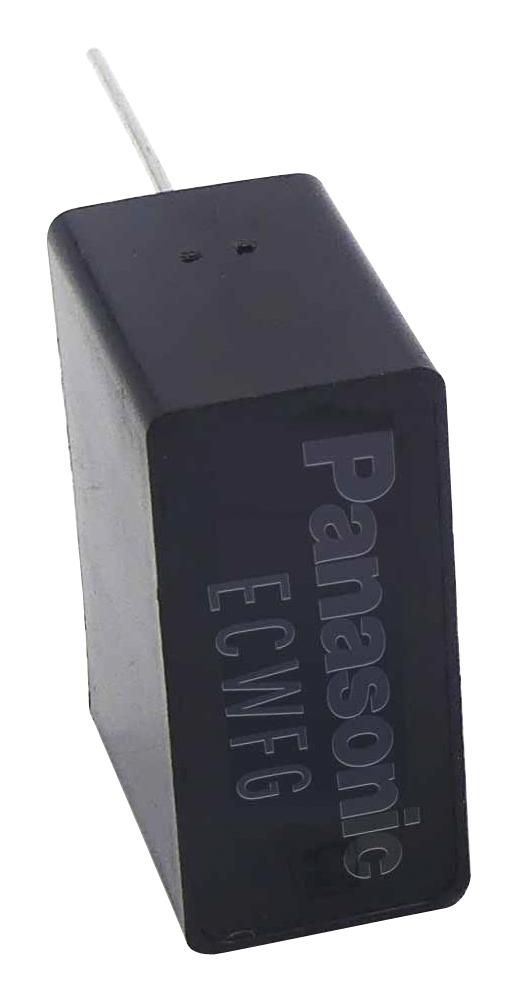

Panasonic ECWFG60126JA High-voltage Film Capacitor
The ECWFG series encompasses high-voltage metallized polypropylene film capacitors designed for automotive and industrial power applications. Featuring non-inductive construction with flame-retardant case, they offer high safety, moisture resistance (85°C, 85%), thermal shock resistance (-55°C to 85°C, 1000 cycles), and compliance with safety standards like AEC-Q200 and RoHS. Suitable for DC/DC and AC/DC converters, high-frequency and high-current circuits, they are available in various voltages up to 1100 V and capacitance values from 1.0 µF to 12.0 µF, with lead pitches of 22.5 mm and 27.5 mm and optional lead forms for reliable mounting.
Panasonic ECWFG60126JA High-voltage Film Capacitor Specifications:
- Rated voltage: 600 V to 1100 V DC, with derating above 85°C
- Capacitance: 1.0 µF to 12.0 µF
- Tolerance: ±5% (J), ±10% (K)
- Dielectric: Metallized polypropylene film
- Capacitor case: Flame-retardant plastic, non-combustible resin
- Lead pitches: 22.5 mm and 27.5 mm
- Lead forms: Straight or cut leads
- Temperature range: -55°C to +85°C, withstands 1000 cycles at temperature extremes
- Compliance: AEC-Q200, RoHS
- Voltage withstand: Rated voltage × 1.5 for 60 sec
- Moisture resistance: 85°C, 85% humidity for extended periods
- Dimensions vary per model with typical ins. thickness 0.030 inches, diameter 27.5-31.5 mm
- Applications: DC/DC, AC/DC converters, high frequency/high current circuits
Buy the Panasonic ECWFG60126JA – Reliable Automotive Power Capacitor for Industrial Applications
Shop the Panasonic ECWFG60126JA high-voltage film capacitor online now for premium quality, durability, and safety in power electronics, automotive systems, and high-frequency applications. With strict compliance to industry standards and advanced moisture, temperature, and safety features, this capacitor ensures reliable performance in demanding environments. Purchase today to upgrade your power circuits with dependable components designed for longevity and high performance in industrial and electric vehicle applications. Fast shipping and excellent support available.
Order your Panasonic ECWFG60126JA high-voltage film capacitor today and ensure power stability in your industrial and automotive applications.
Frequently Asked Questions
Where can I buy Panasonic ECWFG60126JA?
You can click on the BUY or RFQ button to purchase ECWFG60126JA from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part ECWFG60126JA?
You can download the ECWFG60126JA datasheet or visit the Panasonic website for support.
Who is the manufacturer of ECWFG60126JA?
Panasonic
