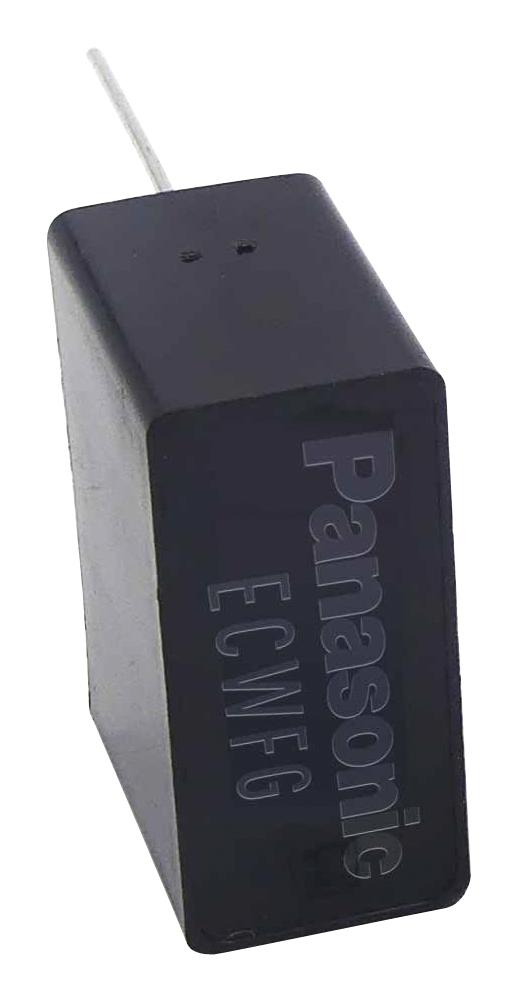

Panasonic ECWFG60205JA High Voltage Film Capacitor
The ECWFG series are high-voltage metallized polypropylene film capacitors designed for automotive and high-frequency circuits. Featuring flame-retardant cases, they offer excellent moisture resistance, thermal shock resistance (-55°C to +85°C), and compliance with safety standards like AEC-Q200 and RoHS. Their non-inductive construction ensures reliable performance in DC/DC and AC/DC converters, especially in xEV applications. Models range from 600V to 1100V rated voltages with various capacitance values, offering durable, safe, and environmentally compliant electrical components for demanding industrial and automotive applications.
Panasonic ECWFG60205JA High Voltage Film Capacitor Specifications:
- Rated voltage: 600 V to 1100 V DC, with derating above 85°C
- Capacitance range: 1.0 pF to 12.0 μF depending on model
- Tolerance: ±5% (J), ±10% (K)
- Operating temperature: -55°C to +85°C
- Insulation resistance: ≥ 3,000 MΩ at 20°C and 500 V DC
- Dissipation factor: ≤ 0.1% at 20°C and 1 kHz
- Leakage current: conforms to safety standards, tested at rated voltage for 60 seconds
- Flame-retardant plastic case, non-combustible resin, compliance with UL, CSA, EN standards
- Soldering: recommended temperature below 135°C, short duration
- Design change and specifications are subject to variation; confirm latest specs before use
- Suitable for high-frequency, high-current, automotive, and industrial circuits
Buy the Panasonic Series ECWFG High Voltage Plastic Film Capacitor: ECWFG60205JA
Enhance your electronic systems with Panasonic's ECWFG series high-voltage film capacitors. Designed for automotive, industrial, and high-frequency applications, these durable components provide excellent moisture resistance, thermal shock endurance, and strict safety compliance. Easy to integrate in DC/DC, AC/DC converters, and high-current circuits, they ensure reliable operation under demanding conditions. Shop online today to secure trustworthy, environmentally compliant capacitors for your projects, backed by Panasonic's renowned quality and innovation, and enjoy fast, convenient delivery directly to your workspace.
Order your Panasonic Series ECWFG 60205JA high-voltage polypropylene film capacitor today and ensure reliable, safe performance in your critical automotive and industrial projects.
Frequently Asked Questions
Where can I buy Panasonic ECWFG60205JA?
You can click on the BUY or RFQ button to purchase ECWFG60205JA from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part ECWFG60205JA?
You can download the ECWFG60205JA datasheet or visit the Panasonic website for support.
Who is the manufacturer of ECWFG60205JA?
Panasonic
