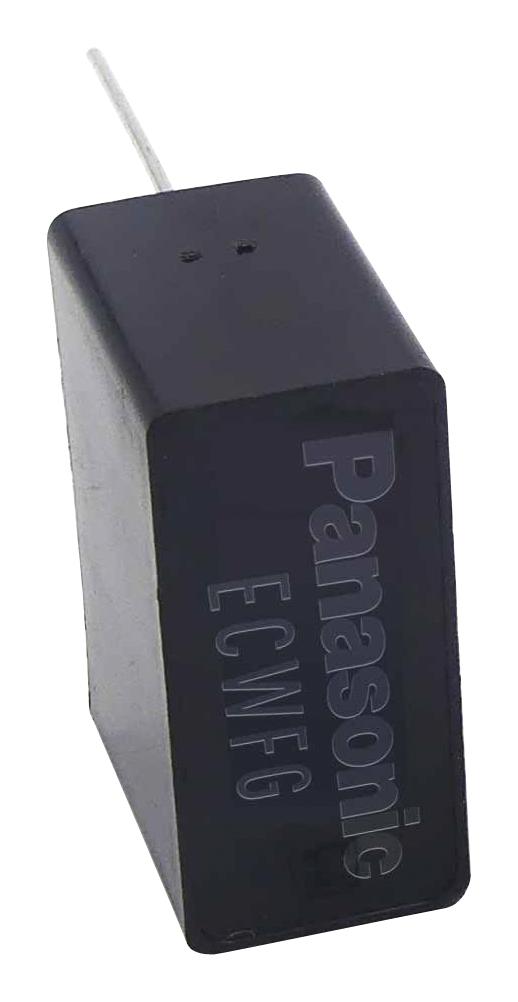

Panasonic ECWFG60225J Polypropylene Film Capacitor
The ECWFG series by Panasonic comprises metallized polypropylene film capacitors designed for automotive and high-frequency applications. These capacitors feature non-inductive construction with flame retardant plastic cases, offering high safety, moisture resistance, thermal shock resistance, and high temperature load endurance. Rated from 600V to 1100V with capacitance values ranging from 1.0 μF to 12.0 μF, they are compliant with RoHS and AEC-Q200 standards. Ideal for DC/DC, AC/DC converters, and high-current circuits, these capacitors provide reliable performance in demanding environments, with detailed specifications ensuring safe and efficient operation in electronic systems.
Panasonic ECWFG60225J Polypropylene Film Capacitor Specifications:
- Rated voltage: 600 V to 1100 V (derating of rated voltage by 1.0% / °C above 85°C)
- Capacitance: 1.0 μF to 12.0 μF with ±5% or ±10% tolerance
- Temperature range: -55°C to +125°C, surface temperature limits specified per type
- Dissipation factor: ≤0.1% at 20°C, 1 kHz
- Insulation resistance: ≥3,000 MΩ-μF at 20°C, 500V DC, 60s
- Implication characteristics: -10% to +10% capacitance change over temperature
- Self heat generation in high frequency operation, derating with temperature and frequency
- Compliance: RoHS, AEC-Q200
- Physical features: Flame retardant plastic case, non-inductive metallized polypropylene film
- Lead pitch options: 22.5 mm, 27.5 mm with straight or cut leads
- Rated pulse current and dV/dt endurance specified per model
- Environmental resistance includes high moisture and thermal shock endurance
- Suitable for high frequency, high current, and automotive power circuits
Buy the Buy Panasonic Plastic Film Capacitors Part Number ECWFG60225J Online
Order Panasonic ECWFG60225J polypropylene film capacitor today online and enjoy fast delivery, guaranteed quality, and competitive pricing. Perfect for automotive, high-frequency circuits, and power supply applications, this series offers high safety, moisture resistance, and thermal shock endurance. Designed to meet strict industry standards including RoHS and AEC-Q200, it ensures durability and reliable operation in challenging environments. Whether for new designs or repairs, purchasing online provides convenience and confidence in a trusted electronic component.
Buy Panasonic ECWFG60225J now and experience unmatched reliability and high-performance power filtering in demanding electronic applications.
Frequently Asked Questions
Where can I buy Panasonic ECWFG60225J?
You can click on the BUY or RFQ button to purchase ECWFG60225J from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part ECWFG60225J?
You can download the ECWFG60225J datasheet or visit the Panasonic website for support.
Who is the manufacturer of ECWFG60225J?
Panasonic
