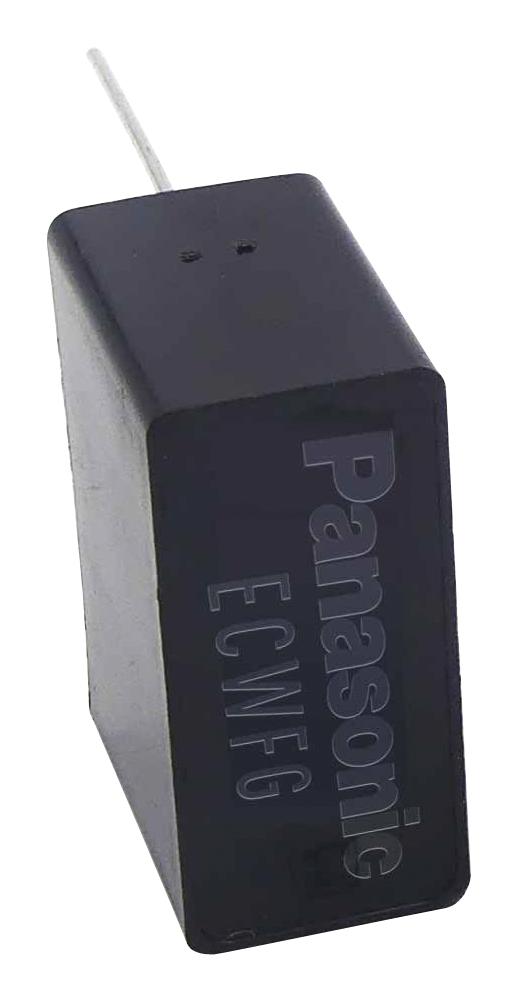

Panasonic ECWFG60275JA Automotive Film Capacitor
The Panasonic ECWFG series metallized polypropylene film capacitors are designed for automotive and high-frequency applications, offering high safety, moisture resistance, and flame-retardant plastic cases. Suitable for use in DC/DC and AC/DC converters in xEV, these capacitors feature non-inductive construction with various rated voltages from 600V to 1100V and capacitance values ranging from 1.0 pF to 12.0 μF. They comply with safety standards including EAC-Q200 and RoHS, and are engineered for durability under thermal shock, high temperature load, and environmental stresses, making them ideal for demanding electronic circuits.
Panasonic ECWFG60275JA Automotive Film Capacitor Specifications:
- Rated voltage: 600 V to 1100 V DC, Derating of rated voltage by 1.0%/°C at >85°C
- Capacitance: 1.0 pF to 12.0 μF, Tolerance: ±5% (J), ±10% (K)
- Temperature range: -55°C to +85°C, with maximum surface temperature specified
- Dimensions vary depending on model, typically length about 27.5 mm, lead pitch options: 22.5 mm, 27.5 mm
- Material: Metallized polypropylene film with flame-retardant plastic case
- High safety standards including AEC-Q200, RoHS compliance
- High moisture resistance, thermal shock resistant (−55°C to +110°C, 1000 cycles)
- Capacitors withstand rated voltage x 150% for 60s, insulation resistance ≥ 3,000 MΩ·μF at 20°C, 500 V DC
- Designed for high frequency and high current power circuits, with low dissipation factor
- Includes safety features for use in automotive and industrial applications
- Various lead and mounting options with different lead pitches and lead forms for versatile installation
Buy the Panasonic Series ECWFG Automotive Film Capacitor: ECWFG60275JA
Experience the high reliability and safety of Panasonic ECWFG series film capacitors. With excellent moisture resistance, flame-retardant casing, and compliance with strict safety standards, these capacitors are ideal for automotive electronics, high-frequency circuits, and power conversion. Designed to withstand thermal shocks, high temperatures, and environmental stresses, they ensure long-lasting performance. Purchase online now to upgrade your electronic systems with advanced, durable, and safety-compliant film capacitors designed for challenging conditions.
Get Panasonic ECWFG60275JA today—built for precision, durability, and high-frequency power applications.
Frequently Asked Questions
Where can I buy Panasonic ECWFG60275JA?
You can click on the BUY or RFQ button to purchase ECWFG60275JA from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part ECWFG60275JA?
You can download the ECWFG60275JA datasheet or visit the Panasonic website for support.
Who is the manufacturer of ECWFG60275JA?
Panasonic
