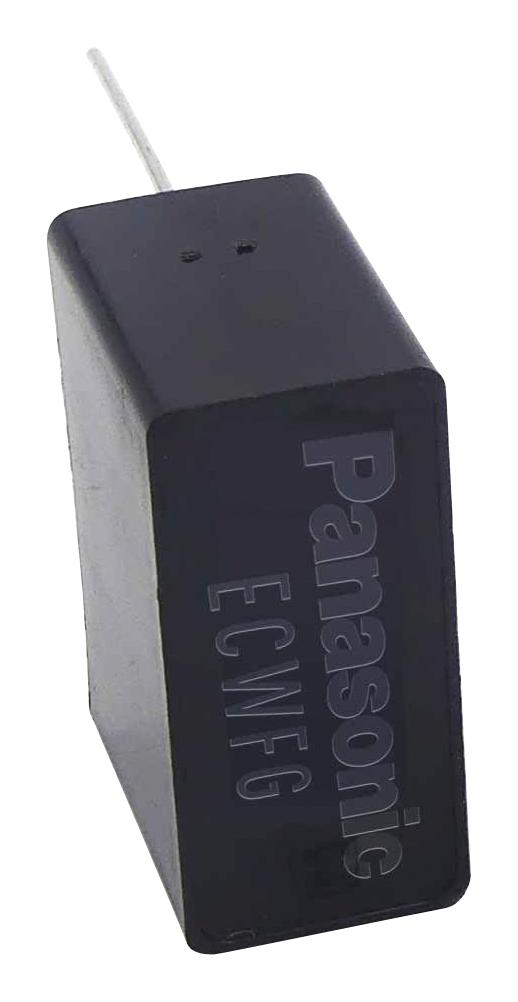

Panasonic ECWFG60305J High-Voltage Film Capacitor
The Panasonic ECWFG series high-voltage metallized polypropylene film capacitors are designed for automotive and high-frequency circuits, offering excellent moisture resistance, flame retardant cases, and compliance with safety standards. They feature non-inductive construction, high thermal shock resistance, and are suitable for DC/DC, AC/DC converters, and high-current applications. These capacitors provide reliable performance with specified ratings from 600V to 1100V, low dissipation factors, and robust insulation resistance, ensuring safety and durability in demanding environments.
Panasonic ECWFG60305J High-Voltage Film Capacitor Specifications:
- Rated voltage: 600V to 1100V DC, Derating of 1.0%/°C above 85°C
- Capacitance range: 2.0 pF to 12.0 μF depending on series and voltage
- Capacitance tolerance: ±5% (J), ±10% (K)
- Dissipation factor: ≤0.1% at 20°C, 1kHz
- Insulation resistance: ≥3,000 MΩ·μF at 20°C, 500V DC
- Temperature range: -55°C to +85°C, with high thermal shock resistance (600 to 1100 V: -55°C to +85°C, 1000 cycles)
- Peak pulse dV/dt: specified per model, e.g., 37 V/μs for 0.22 μF at 400VDC
- Dimensions vary by voltage and capacitance, with lead pitches of 22.5 mm, 27.5 mm, or specific configurations
- Case: Flame-retardant plastic with non-combustible resin, compliant with safety standards such as AEC-Q200, RoHS
- Application: Automotive power circuits, high-frequency converters, noise suppression, DC/DC and AC/DC power modules.
Buy the Panasonic Series ECWFG High-Voltage Film Capacitor: ECWFG60305J
Get your Panasonic ECWFG60305J high-voltage metallized polypropylene film capacitor online today. Designed for automotive and power circuits, it offers superior moisture resistance, flame retardant casing, and high thermal shock resistance. Perfect for DC/DC, AC/DC conversions, and high-current applications, this capacitor guarantees dependable performance with low dissipation factor, high insulation resistance, and compliance with safety standards such as AEC-Q200 and RoHS. Order now and enhance your project's durability and safety with trusted Panasonic quality.
Order your Panasonic Series ECWFG 60305J high-voltage film capacitor today and ensure the reliability and safety of your automotive and high-frequency projects.
Frequently Asked Questions
Where can I buy Panasonic ECWFG60305J?
You can click on the BUY or RFQ button to purchase ECWFG60305J from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part ECWFG60305J?
You can download the ECWFG60305J datasheet or visit the Panasonic website for support.
Who is the manufacturer of ECWFG60305J?
Panasonic
