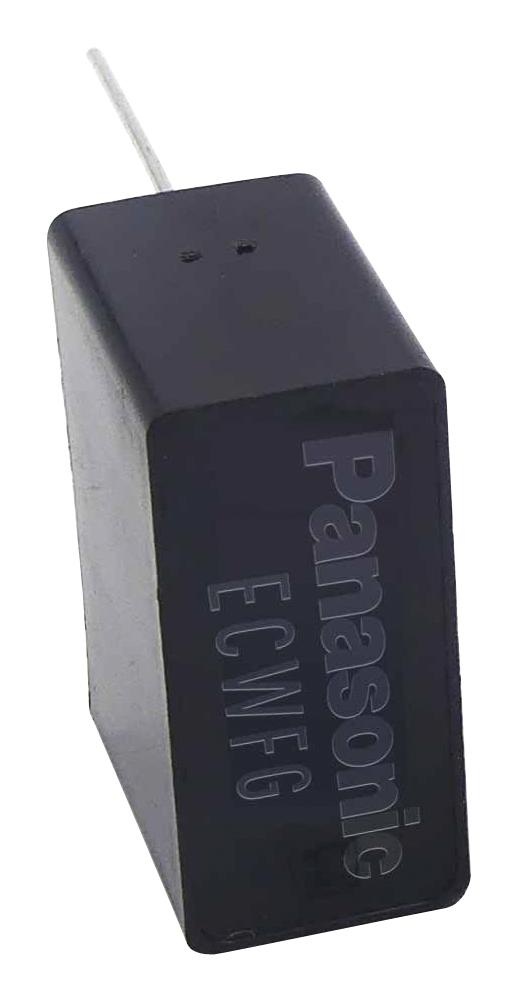

Panasonic ECWFG60305JA Automotive Film Capacitor
The ECWFG series is a range of metallized polypropylene film capacitors designed for automotive and high-frequency applications. Featuring non-inductive construction, flame retardant plastic cases, and high moisture resistance, these capacitors offer excellent safety, thermal shock resistance, and compliance with automotive standards like AEC-Q200. Available in rated voltages from 600V to 1100V, they cater to DC/DC and AC/DC converters, providing reliable performance in demanding environments with safe construction and RoHS compliance.
Panasonic ECWFG60305JA Automotive Film Capacitor Specifications:
- Rated voltage: 600 V to 1100 V DC
- Capacitance range: 0.0001uF to 12.0uF (varies by series)
- Tolerance: ±5% (J), ±10% (K)
- Leakage current: Specified per model
- Temperature range: -55°C to +125°C, derating applies beyond 85°C
- Dissipation factor: ≤0.1% at 20°C, 1 kHz
- Insulation resistance: ≥3000 MΩ-μF at 20°C
- Flame retardant plastic case, RoHS and IATF-Q200 compliant
- High thermal shock resistance: -55°C to +110°C, 1000 cycles
- Surge voltage stability: Up to 700V with specified endurance
- Lead pitch options: 22.5 mm, 27.5 mm
- Certifications: UL, CSA, EN 60384-14, RoHS, AEC-Q200
- Suitable for high frequency, high current circuits, electronic power supplies
Buy the Panasonic Series ECWFG Automotive High Voltage Film Capacitor: ECWFG60305JA
Purchase Panasonic ECWFG60305JA film capacitors online today and ensure reliable performance in high-voltage automotive and power applications. Designed for safety, moisture resistance, and thermal shock endurance, this capacitor series offers excellent stability in demanding environments. Suitable for DC/DC and AC/DC converters, these RoHS and IATF-Q200 compliant capacitors feature flame retardant cases and wide temperature ranges, making them ideal for high-frequency, high-current circuits. Order now to secure high-quality, durable components for your electronic projects and power systems.
Get Panasonic ECWFG60305JA today—built for automotive reliability and high-frequency stability.
Frequently Asked Questions
Where can I buy Panasonic ECWFG60305JA?
You can click on the BUY or RFQ button to purchase ECWFG60305JA from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part ECWFG60305JA?
You can download the ECWFG60305JA datasheet or visit the Panasonic website for support.
Who is the manufacturer of ECWFG60305JA?
Panasonic
