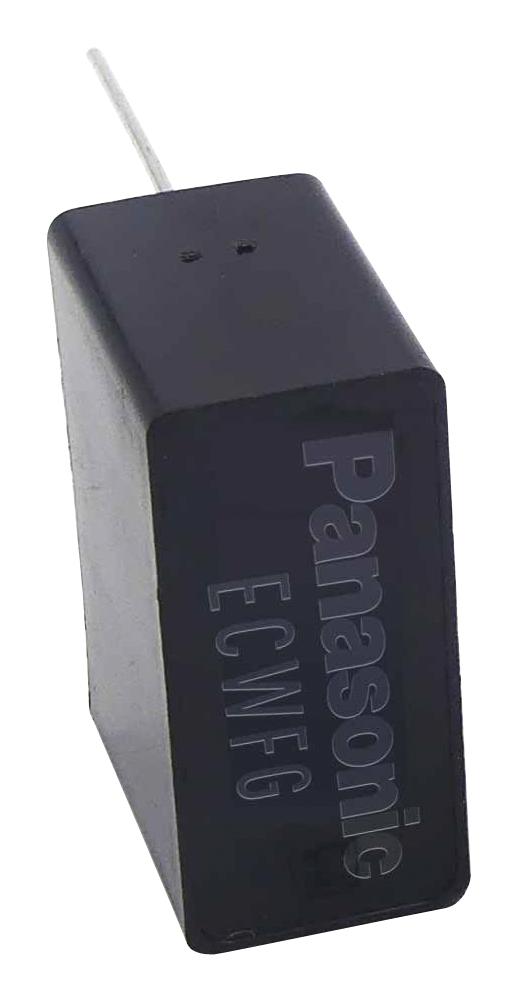

Panasonic ECWFG60355JA High Voltage Film Capacitor
The ECWFG60355JA is a high-voltage metallized polypropylene film capacitor designed for automotive and industrial applications. It features non-inductive construction, flame-retardant case, high moisture resistance at 85°C and 85%, excellent thermal shock resistance up to 110°C, and complies with safety standards including AEC-Q200 and RoHS. Suitable for DC/DC, AC/DC converters, and high-frequency, high-current circuits, it offers reliable performance with a rated voltage of 630V DC and capacitance of 3.5 μF, making it ideal for demanding electronic and power systems.
Panasonic ECWFG60355JA High Voltage Film Capacitor Specifications:
- Rated voltage: 630 V DC
- Capacitance: 3.5 μF
- Capacitance tolerance: +5% (J), +10% (K)
- Lead pitch: 27.5 mm
- Dimensions: Length 31.5 mm, Width 13.5 mm, Height 28.5 mm
- Operating temperature: -55°C to 110°C (surface temperature)
- Dissipation factor: 0.5% at 1kHz
- Insulation resistance: 1.E+14 Ω at 20°C
- Impédance: varies with frequency, approximately 0.1 to 10000 kHz
- Compliance: RoHS, AEC-Q200 certified
- Application: High frequency, high current power circuits, automotive electronics
Buy the Panasonic ECWFG60355JA – Reliable High-Voltage Film Capacitor for Industrial Applications
Purchase the Panasonic ECWFG60355JA film capacitor online today to ensure reliable performance in automotive, power electronics, and industrial high-frequency circuits. Designed with non-inductive construction, flame-retardant case, and high moisture resistance, this high-voltage capacitor offers excellent thermal shock resistance and complies with industry standards like RoHS and AEC-Q200. It features a rated voltage of 630V DC, capacitance of 3.5 μF with tight tolerance, and robust insulation resistance, making it ideal for demanding applications in high-current, high-frequency power systems.
Get Panasonic ECWFG60355JA today—built for precision and long-lasting durability in demanding power and automotive circuits.
Frequently Asked Questions
Where can I buy Panasonic ECWFG60355JA?
You can click on the BUY or RFQ button to purchase ECWFG60355JA from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part ECWFG60355JA?
You can download the ECWFG60355JA datasheet or visit the Panasonic website for support.
Who is the manufacturer of ECWFG60355JA?
Panasonic
