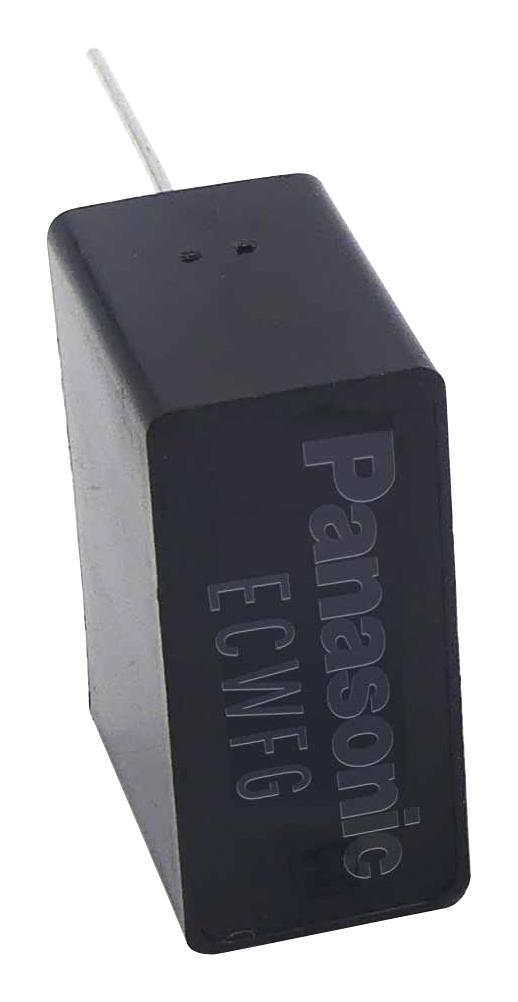

Panasonic ECWFG60605JA Power Capacitor
The ECWFG series offers high-voltage metallized polypropylene film capacitors designed for automotive and power circuits. Featuring flame-retardant plastic cases, non-inductive construction, and excellent moisture resistance, these capacitors ensure safety and reliable performance even under thermal shock (-55°C to +85°C) and high-temperature load conditions. Suitable for DC/DC, AC/DC converters, and high-frequency circuits, they are also compliant with AEC-Q200 and RoHS standards, providing durable, stable, and safe solutions for demanding electronic applications with rated voltages up to 1100 V and variable capacitance values.
Panasonic ECWFG60605JA Power Capacitor Specifications:
- Rated voltage [DC]: 600 V to 1100 V
- Capacitance range: 1.0 µF to 12.0 µF
- Tolerance: +5% (J), +10% (K)
- Operating temperature: -55°C to +85°C
- Self-healing and non-inductive construction
- Flame-retardant plastic case with non-combustible resin
- High moisture resistance and thermal shock resistance (500-1000 cycles)
- Peak pulse current capacity varies with voltage and capacitance
- Compliance: RoHS, AEC-Q200
- Lead pitch options: 22.5 mm, 27.5 mm
- Voltage derating applied above 85°C
- Insulation resistance: ≥ 3000 MΩ-µF at 20°C, 500 VDC
- Dissipation factor: ≤ 0.1% at 20°C, 1 kHz
- Manufactured with flame-retardant epoxy resin coating in certain types
Buy the Panasonic Series ECWFG High-Voltage Power Capacitor: ECWFG60605JA
Experience the reliability and safety of Panasonic's ECWFG series power capacitors, engineered for automotive and high-frequency power circuits. With flame-retardant cases and moisture resistance, these capacitors deliver exceptional performance under thermal shock and high-temperature conditions. Suitable for DC/DC and AC/DC converters, they meet stringent safety standards including AEC-Q200 and RoHS. Purchase online today to ensure your electronic systems operate with durability and confidence, benefitting from advanced construction and proven stability in demanding environments.
Get Panasonic ECWFG60605JA today—built for high safety, moisture resistance, and long-lasting durability in demanding power applications.
Frequently Asked Questions
Where can I buy Panasonic ECWFG60605JA?
You can click on the BUY or RFQ button to purchase ECWFG60605JA from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part ECWFG60605JA?
You can download the ECWFG60605JA datasheet or visit the Panasonic website for support.
Who is the manufacturer of ECWFG60605JA?
Panasonic
