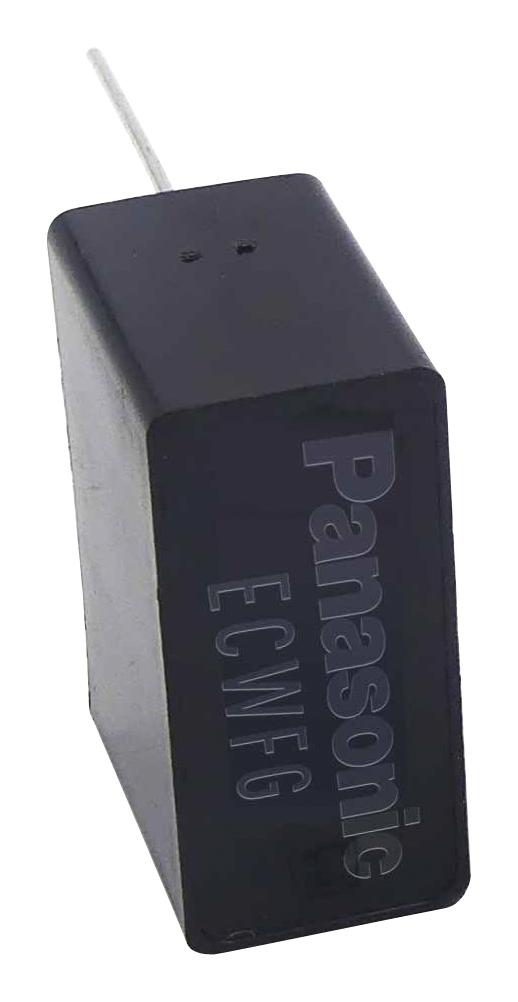

Panasonic ECWFG60825JA High Voltage Film Capacitor
The ECWFG series comprises high-voltage metallized polypropylene film capacitors designed for automotive and industrial applications, including DC/DC and AC/DC converters. Featuring non-inductive construction with flame-retardant plastic cases, these capacitors provide high safety, moisture resistance (85°C, 85%), and excellent thermal shock resistance from -55°C to 85°C. Available at voltage ratings from 600V to 1100V and capacitance from 0.1µF to 12µF, they are ideal for high-frequency, high-current circuits, and compliant with RoHS and AEC-Q200 safety standards.
Panasonic ECWFG60825JA High Voltage Film Capacitor Specifications:
- Rated voltage: 600 V to 1100 V DC
- Capacitance: 0.1µF to 12.0µF
- Capacitance tolerance: ±5% (J), ±10% (K)
- Lead pitch options: 22.5 mm, 27.5 mm
- Operating temperature: -55°C to 85°C
- Dissipation factor: ≤0.1% at 20°C, 1kHz
- Insulation resistance: ≥3,000 MΩ·µF at 20°C, 500 V DC
- Voltage derating: 1.0% per °C above 85°C
- Flame-retardant plastic case, non-combustible resin
- Compliance: RoHS, AEC-Q200
- Pulse current: specified per model, with dV/dt up to 10,000 cycles
- Designed for high frequency and high current applications, including xEV circuits
Buy the Panasonic ECWFG60825JA – Reliable Automotive and High Voltage Power Capacitor for Industrial Applications
Purchase the Panasonic ECWFG60825JA high voltage metallized polypropylene film capacitor online today to ensure your industrial and automotive power circuits perform reliably. Featuring a voltage rating of 800 V DC, capacitance of 2.5 µF, and compliance with RoHS and AEC-Q200, this capacitor offers excellent moisture resistance, thermal shock durability, and safety. Suitable for high-frequency, high-current applications, order now and upgrade your power electronics with guaranteed quality and safety assurance.
Order your Panasonic Series ECWFG60825JA high voltage film capacitor today and enhance your high-frequency, high-current circuits with dependable safety and performance.
Frequently Asked Questions
Where can I buy Panasonic ECWFG60825JA?
You can click on the BUY or RFQ button to purchase ECWFG60825JA from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part ECWFG60825JA?
You can download the ECWFG60825JA datasheet or visit the Panasonic website for support.
Who is the manufacturer of ECWFG60825JA?
Panasonic
