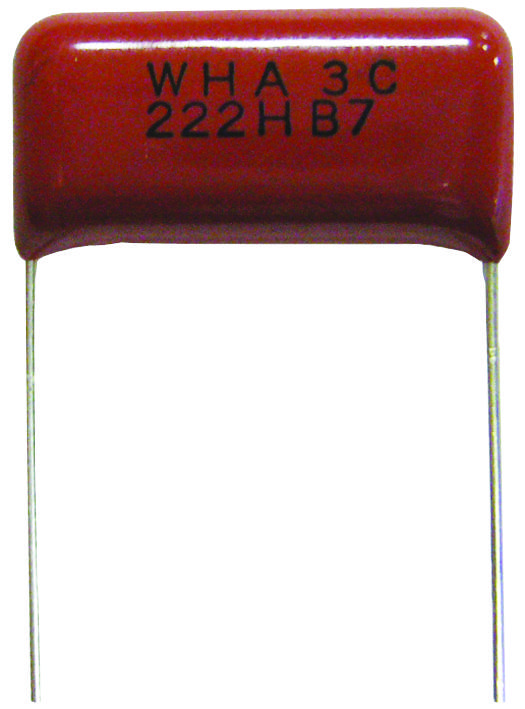

Panasonic ECWHA3C332HB Film Capacitor
Panasonic's ECWHA3C332HB is a metallized polypropylene film capacitor engineered for demanding applications requiring high frequency and pulse performance. Its construction incorporates a flame-retardant epoxy resin coating, providing enhanced safety and reliability. The capacitor exhibits excellent electrical characteristics, low loss, and minimal hum sound noise, making it suitable for resonant circuits and electronic ballasts. It is RoHS directive compliant, aligning with environmental standards. Available with various lead configurations (straight, crimped, cut), this capacitor offers versatility in circuit design and assembly.
Panasonic ECWHA3C332HB Film Capacitor Specifications:
- Category temp. range: ‒40 ̊C to+105 ̊C
- Rated voltage: 800 VDC
- Capacitance range: 0.010 µF to 0.047 µF
- Capacitance tolerance: ±3 % (H)
- Dissipation factor: tan <=0.1 % (20̊C, 1kHz)
- Withstand voltage: Rated volt. (V.DC)×150 % 60 s
- Insulation resistance: IR>=30000 MΩ(20̊C, 500 V.DC, 60 s)
