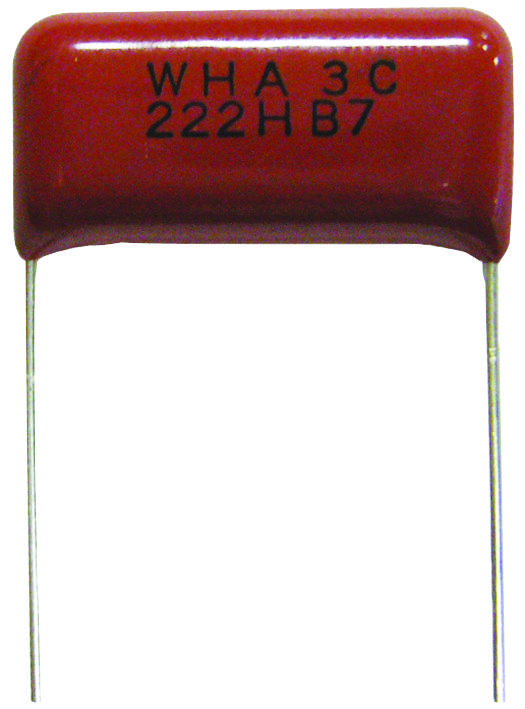

Panasonic ECWHA3C472H Film Capacitor
Panasonic's ECW-HA3C472H is a metallized polypropylene film capacitor engineered for demanding applications requiring high frequency and pulse performance. Its construction incorporates a flame-retardant epoxy resin coating, providing enhanced safety and reliability. The capacitor exhibits excellent electrical characteristics, low loss, and minimal hum sound noise, making it suitable for resonant circuits and electronic ballasts. RoHS compliant, this capacitor offers a balance of performance and environmental responsibility.
Panasonic ECWHA3C472H Film Capacitor Specifications:
- Category temp. range: ‒40 ̊C to+105 ̊C
- Rated voltage: 800 VDC
- Capacitance range: 0.010 µF to 0.047 µF
- Capacitance tolerance: ±3 % (H)
- Dissipation factor: tan <=0.1 % (20̊C, 1kHz)
- Withstand voltage: Rated volt. (V.DC)×150 % 60 s
- Insulation resistance: IR>=30000 MΩ(20̊C, 500 V.DC, 60 s)
Buy the ECW-HA3C472H PANASONIC Film Capacitor | myMectronic
Purchase the Panasonic ECW-HA3C472H Film Capacitor securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy Panasonic ECWHA3C472H?
You can click on the BUY or RFQ button to purchase ECWHA3C472H from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part ECWHA3C472H?
You can download the ECWHA3C472H datasheet or visit the Panasonic website for support.
Who is the manufacturer of ECWHA3C472H?
Panasonic
