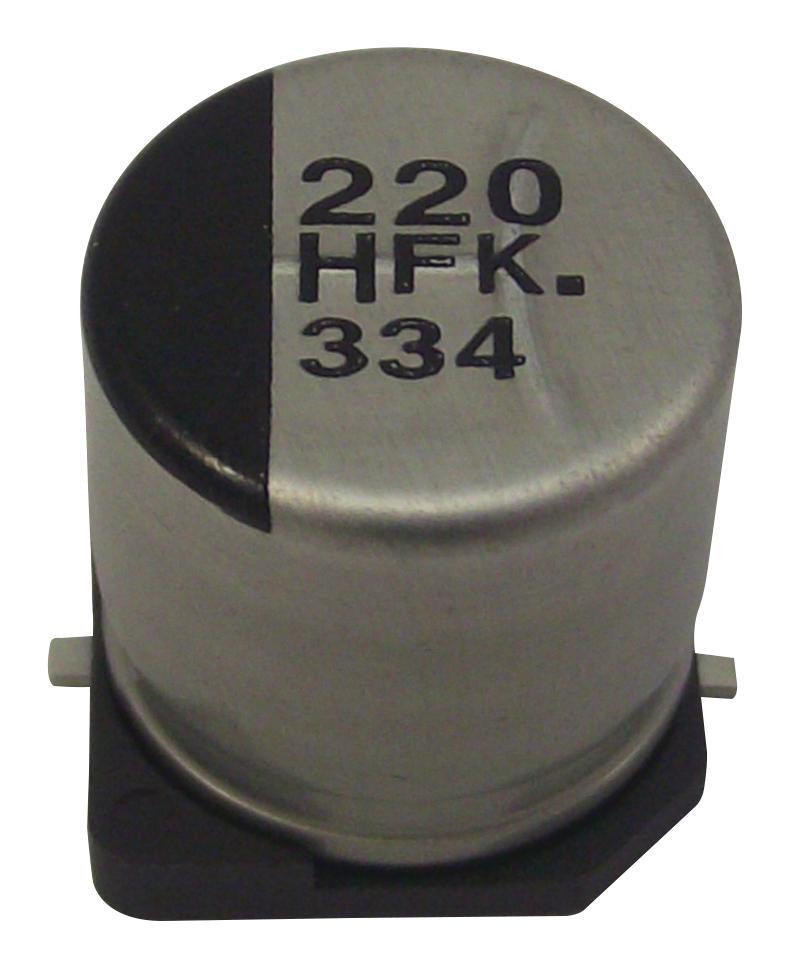

Panasonic EEEFK1J681AM Aluminum Electrolytic Capacitor
Panasonic aluminum electrolytic surface mount capacitors are designed for high-temperature, vibration-proof, and RoHS-compliant applications. Suitable for power smoothing and filtering, these capacitors operate within a temperature range of -55°C to +105°C, offering various voltage and capacitance ratings up to 6800 µF. They feature excellent endurance of 5000 hours at 105°C, with low leakage current and stable performance after reflow soldering. Their robust construction ensures reliability in demanding electronic circuits, making them ideal for industrial and high-reliability equipment.
Panasonic EEEFK1J681AM Aluminum Electrolytic Capacitor Specifications:
- Capacitance Range: 47 µF to 6800 µF
- Voltage Range: 6.3 V to 100 V
- Category Temperature Range: -55°C to +105°C
- Endurance: 105°C for 5000 hours
- Leakage Current: IS 0.01 CV (µA)
- Rated Voltage (V.DC): 6.3, 10, 16, 25, 35, 50, 63, 80, 100
- Dissipation Factor (tan δ): Please see characteristics list
- Vibration Resistance: 30G (upon request)
- RoHS Compliant: Yes
- Dimensions: Refer to datasheet for specific size details
- Design: Surface Mount, High-temperature Lead-Free Reflow
- Resistance to soldering heat: Correction factors apply based on frequency
- Other: Supports reflow soldering, stability after 5000 hours at 105°C
Buy the Panasonic 681AM – Reliable Vibration-Proof for Industrial Applications
Purchase Panasonic Series 681AM aluminum electrolytic capacitors online now to benefit from their high endurance, vibration resistance, and reliable performance. Designed for industrial power supplies, these surface mount capacitors operate within a broad temperature range of -55°C to +105°C and withstand 5000 hours at 105°C for long-term durability. Featuring low leakage current and stable capacitance after reflow soldering, they ensure efficient filtering and smoothing in demanding environments. Buy online today and enhance your electronic system's reliability with Panasonic quality.
Order your Panasonic Series 681AM aluminum electrolytic capacitor today and ensure your power circuits are protected with high durability and stability.
Frequently Asked Questions
Where can I buy Panasonic EEEFK1J681AM?
You can click on the BUY or RFQ button to purchase EEEFK1J681AM from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part EEEFK1J681AM?
You can download the EEEFK1J681AM datasheet or visit the Panasonic website for support.
Who is the manufacturer of EEEFK1J681AM?
Panasonic
