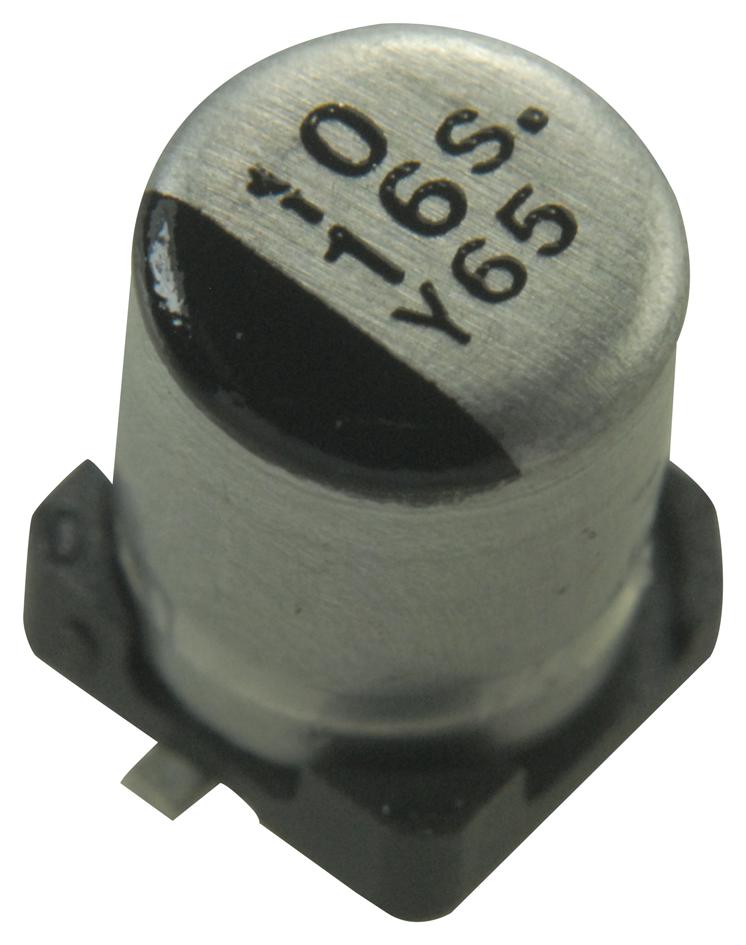

Panasonic EEEFN1A470UR Electrolytic Capacitor
This high-reliability aluminum electrolytic capacitor is designed for surface-mount applications, offering high temperature endurance up to 105°C for 2000 hours. Suitable for various electronic devices, it features a wide voltage range from 6.3 V to 100 V, with capacitance values from 10 pF to 1800 μF. Proven vibration-proof performance (30G guaranteed upon request) and compliance with AEC-Q200 and RoHS standards ensure safety and durability in demanding environments. The product supports reflow soldering, has a proven long-term storage life, and is ideal for audio/visual, home appliances, and precision measuring equipment.
Panasonic EEEFN1A470UR Electrolytic Capacitor Specifications:
- Capacitance range: 10 pF to 1800 μF
- Rated voltage: 6.3 V to 100 V
- Category temperature range: -55°C to +105°C
- Endurance: 105°C 2000 hours
- Leakage current: ≤ 20% of initial value (120 Hz / +20°C)
- Dimensions (example size): Diameter 4.0 mm to 10.5 mm, Length 5.8 mm to 12.0 mm
- Impedance ratio at 120 Hz: Z(-25°C)/Z(+20°C): 2/2/2/2/2/2/2/2/2
- Vibration resistance: 30G (upon request)
- Compliance: AEC-Q200, RoHS, Lead-Free reflow
- Temperature coefficient: ±20% typical
- Maximum ripple current varies with frequency and size
- Support terminals extend from the bottom side for vibration-proof models
Buy the Buy Panasonic Aluminum Electrolytic Capacitors Part Number EEEFN1A470UR Online
Purchase Panasonic SeriesE electrolytic capacitors online today and benefit from high-temperature endurance, vibration-proof design, and long-term reliability. Perfect for demanding electronics, these surface-mount capacitors support efficient reflow soldering, RoHS compliance, and robust performance in industrial, automotive, and consumer applications. With competitive lead times, secure your inventory and ensure your projects meet the highest standards of safety and durability by ordering now from authorized distributors' online stores.
Order your Panasonic SeriesE electrolytic capacitor with part number EEEFN1A470UR today and ensure your electronic devices operate reliably under high temperature conditions.
Frequently Asked Questions
Where can I buy Panasonic EEEFN1A470UR?
You can click on the BUY or RFQ button to purchase EEEFN1A470UR from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part EEEFN1A470UR?
You can download the EEEFN1A470UR datasheet or visit the Panasonic website for support.
Who is the manufacturer of EEEFN1A470UR?
Panasonic
