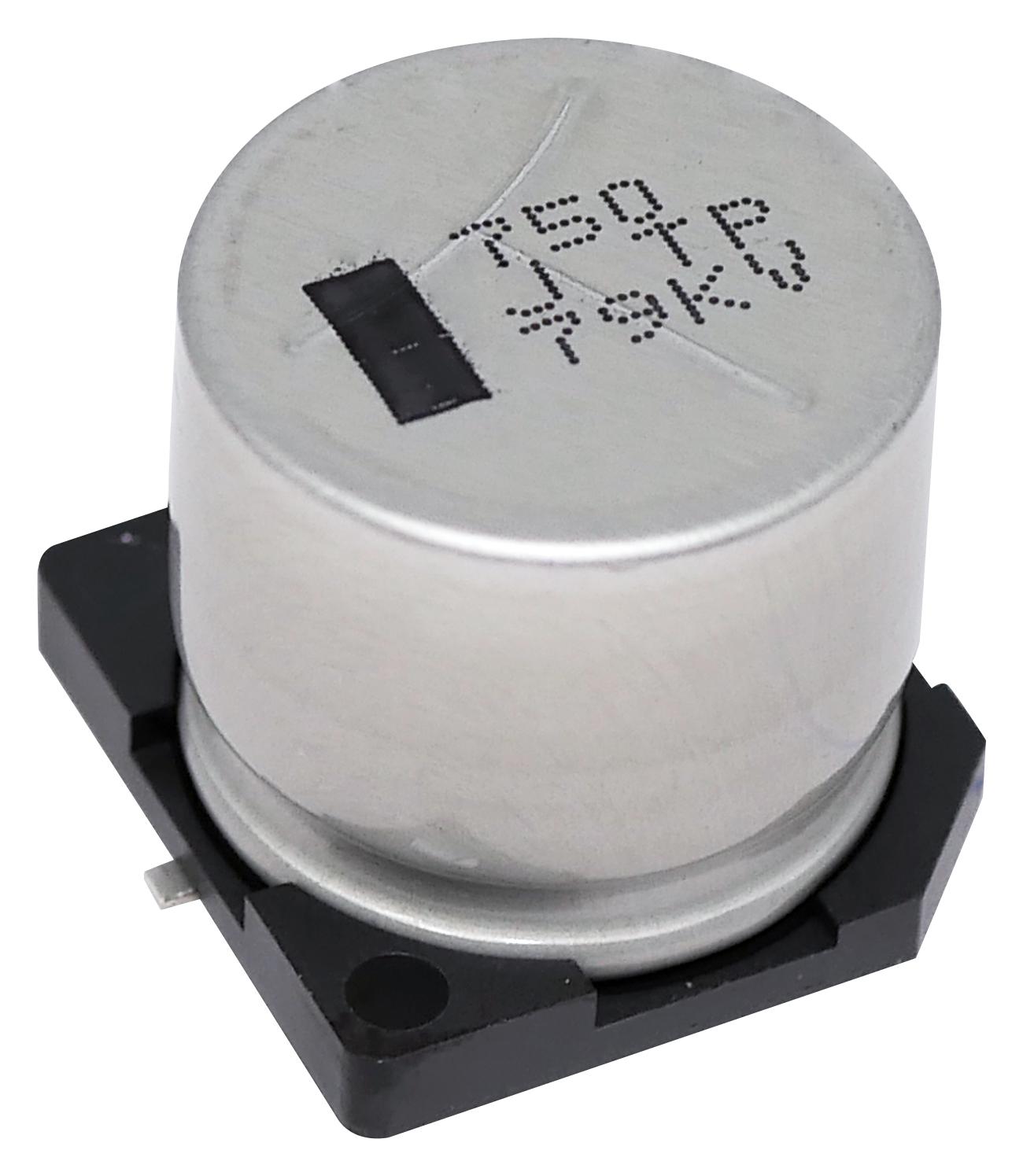

Panasonic EEETP1E182M Electrolytic Capacitor
Panasonic's aluminum electrolytic surface mount capacitors in the medium-size TP series offer high temperature endurance up to 125°C and are RoHS compliant. They provide high ripple current (2 to 5 times that of TK series), low ESR (40 to 70 % lower), and large capacitance (up to 80 % larger). Designed for durability, they withstand endurance testing of 3000 to 4000 hours at 125°C and resistant to vibration and reflow soldering heat. Suitable for power management, filtering, and decoupling applications in electronic devices and industrial equipment.
Panasonic EEETP1E182M Electrolytic Capacitor Specifications:
- Temperature Range: -55°C to +125°C
- Rated Voltage: 25 V.DC to 80 V.DC
- Capacitance Range: 390μF to 3300μF
- Capacitance Tolerance: ±20% (120Hz at +20°C)
- Leakage Current: Less than 0.01 CV (μA) after 2 minutes
- Endurance: 3000 to 4000 hours at 125°C
- Impedance Ratio at 120Hz: varies with temperature
- Dissipation Factor: as specified in characteristics list
- RoHS and AEC-Q200 compliant
- Vibration-proof and reflow-soldering resistant
- Frequency Correction Factor for Ripple Current: 0.75 at 120Hz, 1.00 at 100kHz
- Physical Dimensions: Refer to specific size models (J16, K16, K21)
Buy the Panasonic Series TP Aluminum Electrolytic Capacitors: EEETP1E182M
Enhance your electronic projects with Panasonic's high-quality aluminum electrolytic capacitors from the Series TP. These surface-mount capacitors offer excellent endurance up to 125°C, high ripple current capacity, and low ESR for superior performance in power management, filtering, and decoupling. Designed for durability and RoHS compliance, they are ideal for industrial and consumer applications. Purchase online now to ensure your devices operate efficiently with reliable, long-lasting components that meet stringent industry standards and withstand tough environmental conditions.
Order your Panasonic Series TP aluminum electrolytic capacitor EEETP1E182M today and enhance your power electronics with reliable, high-temperature performance.
Frequently Asked Questions
Where can I buy Panasonic EEETP1E182M?
You can click on the BUY or RFQ button to purchase EEETP1E182M from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part EEETP1E182M?
You can download the EEETP1E182M datasheet or visit the Panasonic website for support.
Who is the manufacturer of EEETP1E182M?
Panasonic
