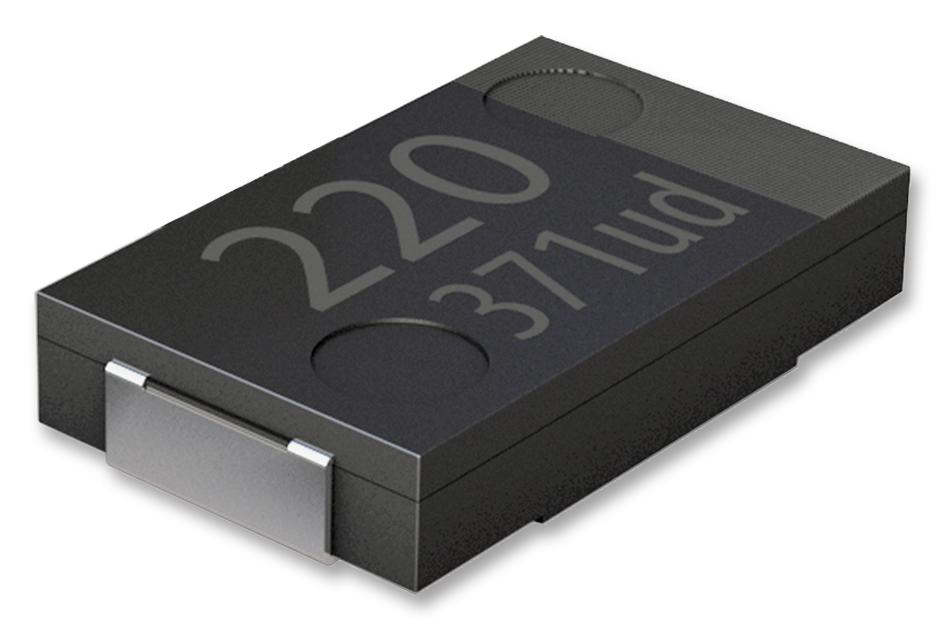

Panasonic EEFCT1D470R Conductive Polymer Capacitor
The Panasonic Conductive Polymer Aluminum Electrolytic Capacitor from the CS/CTICX series offers a compact, surface mount design with high voltage (up to 35 V) and low profile (height 1.0 mm). It features high ripple current capacity of up to 56,600 mA rms and RoHS compliance, halogen-free construction. Suitable for various electronic circuits, it provides reliable endurance at 105°C for 2000 hours, low ESR, and minimal leakage current, making it ideal for high-performance and space-constrained applications in consumer electronics, industrial equipment, and power supply circuits.
Panasonic EEFCT1D470R Conductive Polymer Capacitor Specifications:
- Series: CS/CTICX
- Category temp. range: -55°C to +105°C
- Rated voltage range: 4.0V to 35V
- Rated capacitance range: 10 μF to 120 pF
- Capacitance tolerance: +20% (120 Hz/ +20 °C)
- DC leakage current: 0.1 CV(μA) [2.0 V to 6.3 V], 0.3 CV(μA) [10 V to 35 V]
- Dissipation factor (tan δ): 0.06 (120 Hz/ +20 °C)
- Surge voltage: 1.25x rated voltage (2.0 V to 16 V), 1.15x rated voltage (20 V to 35 V)
- Endurance: 2000 hours at 105°C with rated voltage, Capacitance within +20%, Dissipation factor within initial limit
- Ripple current: Up to 56,600 mA rms at 100 kHz / +45°C
- Dimensions: Length 73 mm, Width 43 mm, Height 14 mm
- RoHS compliant, Halogen free, UL and CSA certified
- Application: Surface mounting, high ripple current, electronic circuits including power supply and high-reliability devices
Buy the Panasonic Series CS/CTICX Conductive Polymer Aluminum Capacitor: EEFCT1D470R
Purchase the Panasonic Conductive Polymer Aluminum Capacitor from the CS/CTICX series online now. This compact, high-voltage surface mount capacitor provides excellent ripple current capacity and low ESR, making it ideal for high-performance electronics requiring space efficiency. Suitable for power supply, consumer, and industrial applications, it offers reliable endurance at 105°C for 2000 hours, RoHS compliance, halogen-free construction, and guaranteed quality. Ensure your electronic projects have dependable, space-saving components by ordering today in just a few clicks.
Order your Panasonic Series CS/CTICX high-voltage surface mount capacitor today and ensure reliable performance in space-constrained electronic circuits.
Frequently Asked Questions
Where can I buy Panasonic EEFCT1D470R?
You can click on the BUY or RFQ button to purchase EEFCT1D470R from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part EEFCT1D470R?
You can download the EEFCT1D470R datasheet or visit the Panasonic website for support.
Who is the manufacturer of EEFCT1D470R?
Panasonic
