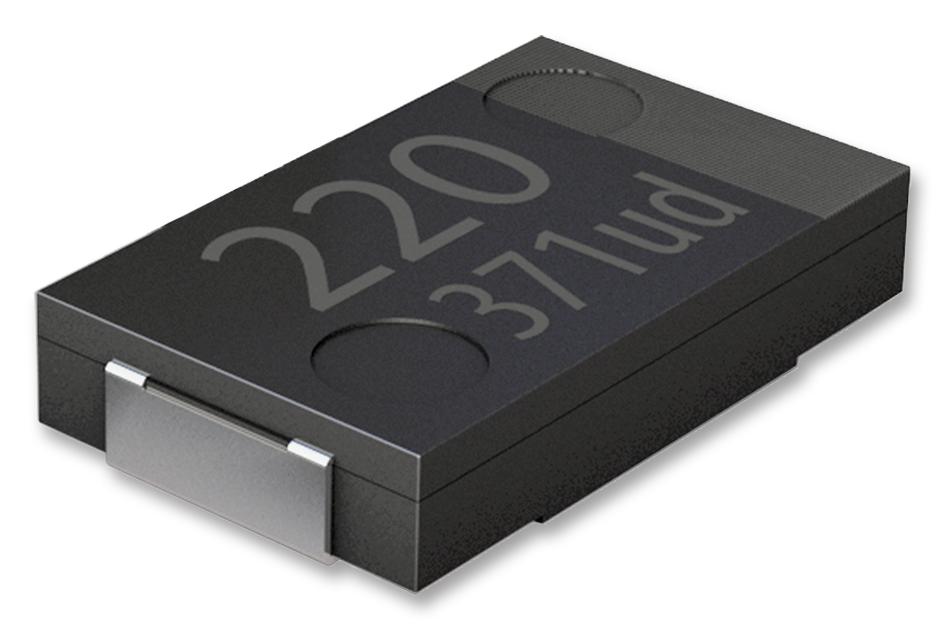

Panasonic EEFCX1C680R Conductive Polymer Aluminum Capacitor
This high-performance surface-mount conductive polymer aluminum electrolytic capacitor offers low profile design, high ripple current capacity, and high voltage ratings, making it ideal for compact electronic devices requiring reliable power smoothing. It supports a temperature range of -55°C to +105°C, with various capacitance and voltage options from 4.0V to 35V. Its RoHS compliant, halogen-free construction ensures environmental safety and sustainability. Suitable for applications demanding high ripple currents, low ESR, and long-term endurance, it is engineered for precision electronics and power supply circuits, combining compact size and durability.
Panasonic EEFCX1C680R Conductive Polymer Aluminum Capacitor Specifications:
- Category temperature range: -55°C to +105°C
- Rated voltage range: 4.0V to 35V
- Capacitance range: 10 UF to 120 pF
- Capacitance tolerance: +20% (120 Hz/ +20°C)
- DC leakage current: |S 0.1 CV(μA) [2.0 V to 6.3 V, 2 min], |S 0.3 CV(μA) [10 V to 35 V, 2 min]
- Dissipation factor: tan δ 0.06 (120 Hz/ +20°C)
- Surge voltage: Rated voltage x 1.25 for 2.0 V to 16 V, x 1.15 for 20 V to 35 V
- Endurance: 2000 hours at +105°C with rated voltage applied, capacitance within +20% of initial value
- Dimensions: Height max 1.0 mm, width 73 mm, length varies by model
- RoHS compliant, Halogen free, suitable for surface mount technology, high ripple current capacity
Buy the Panasonic Series CS-CTCX Conductive Polymer Aluminum Capacitors: EEFCX1C680R
Purchase Panasonic EEFCX1C680R on our online store today and experience reliable, high-performance surface mount capacitors. Designed for compact electronic devices, this capacitor features a low profile of up to 1.0 mm height, high ripple current capacity of 56,600 mA rms, and broad temperature range from -55°C to +105°C. It supports voltage ratings from 4V to 35V, with RoHS compliance and halogen-free construction for environmental safety. Perfect for power supply circuits, this capacitor offers durability, efficiency, and environmental friendliness, ensuring optimal performance in your electronic designs.
Get Panasonic EEFCX1C680R today—built for compact designs, high ripple current, and long-lasting durability in demanding electronic applications.
Frequently Asked Questions
Where can I buy Panasonic EEFCX1C680R?
You can click on the BUY or RFQ button to purchase EEFCX1C680R from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part EEFCX1C680R?
You can download the EEFCX1C680R datasheet or visit the Panasonic website for support.
Who is the manufacturer of EEFCX1C680R?
Panasonic
