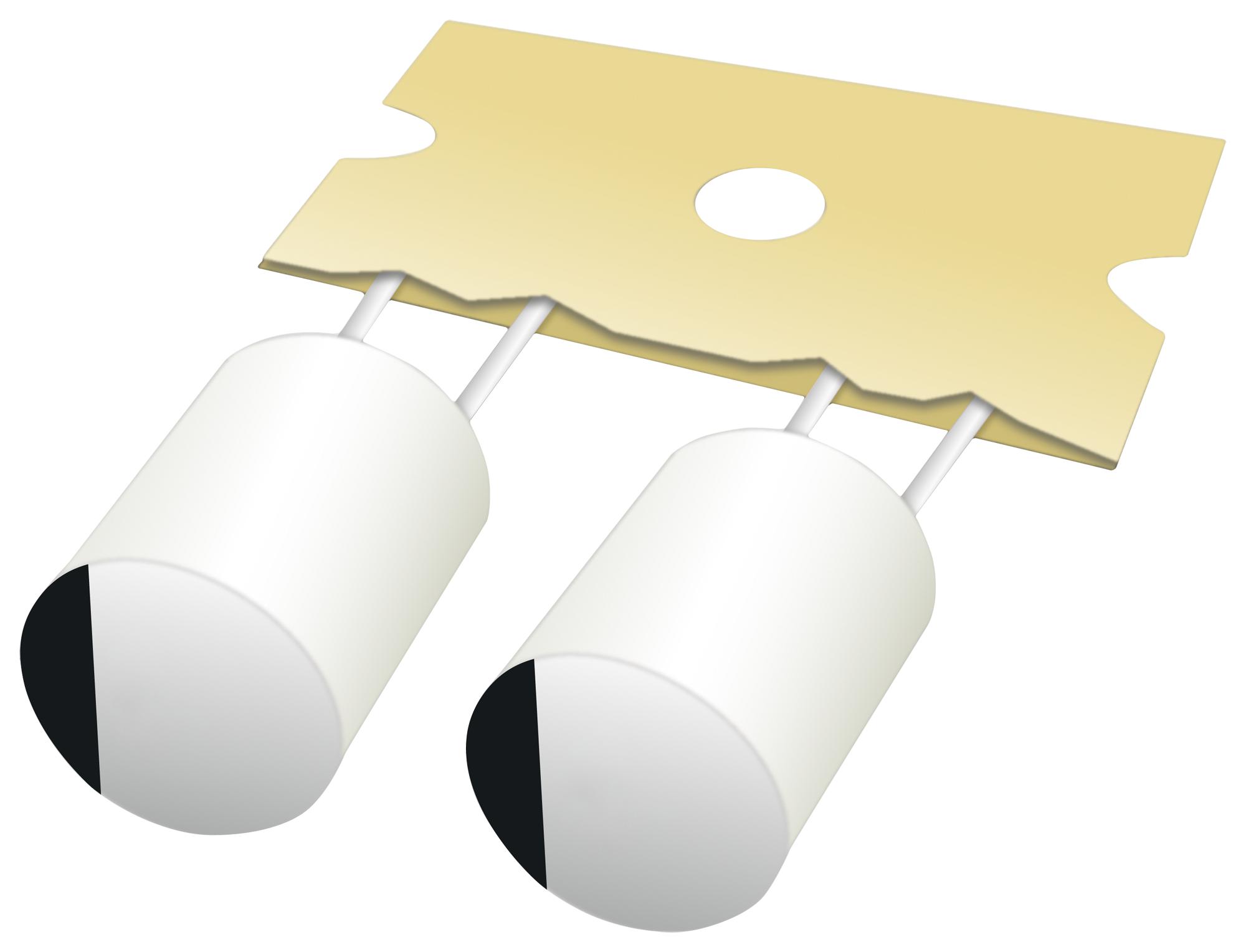

Panasonic EEHAZA1E221B Hybrid Aluminum Capacitor
This high-reliability hybrid aluminum electrolytic capacitor features conductive polymer hybrid technology, ensuring excellent electrical performance and long life. Designed for industrial applications, it endures 10,000 hours at 105°C and complies with AEC-Q200 and RoHS standards. Suitable for various electronic circuits requiring stability, the capacitor offers low ESR, stable capacitance, and excellent ripple current handling. Its robust construction enables use in temperature ranges from -55°C to +105°C, with careful consideration for mounting, handling, and environmental conditions. Ideal for automotive, industrial, and high-reliability electronics demanding durability and dependable performance.
Panasonic EEHAZA1E221B Hybrid Aluminum Capacitor Specifications:
- Capacitance: 220 μF
- Rated Voltage: 25 V
- Size code: F
- Design Life: 10,000 hours at 105°C
- Endurance: 10,000 hours at 105°C with rated ripple current
- Temperature Range: -55°C to +105°C
- Leakage Current: Within initial limit after endurance testing
- Dissipation Factor (tan δ): ≤ 0.6% at 120 Hz / +20°C
- ESR: ≤ 0.14 Ω at 100 kHz / +20°C
- Polarity: Negative marked; positive terminal marked
- Mounting: Taped for automatic insertion, radial lead type
- RoHS and AEC-Q200 compliant
- Ripple Current: As specified for 25°C and 105°C operating conditions
- Pressure Relief: Case mounted, minimum clearance of 2 mm required
- Lead Pitch: 5.0 mm, Lead Length: 6.35 mm
- Environmental Resistance: Damp heat, shelf life, and soldering heat resistance tested
- Marking: Black text indicating capacitance and voltage, negative polarity clearly marked
Buy the Panasonic EEHAZA1E221B – Reliable Conductive Polymer Hybrid Aluminum Capacitors for Industrial Applications
Purchase the Panasonic hybrid aluminum electrolytic capacitor EEHAZA1E221B online today and benefit from long life, low ESR, and stable electrical performance. Designed for high-reliability applications, it endures 10,000 hours at 105°C, making it ideal for automotive, industrial, and high-performance electronics. Easy to handle and taping for automatic insertion, this capacitor provides excellent ripple current capacity and stability across -55°C to +105°C temperature range. Secure your supply of dependable capacitors now for superior circuit durability and performance.
Order your Panasonic Series EEHAZA1E221B high-performance hybrid aluminum electrolytic capacitor today and ensure reliable operation in demanding electronic systems.
Frequently Asked Questions
Where can I buy Panasonic EEHAZA1E221B?
You can click on the BUY or RFQ button to purchase EEHAZA1E221B from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part EEHAZA1E221B?
You can download the EEHAZA1E221B datasheet or visit the Panasonic website for support.
Who is the manufacturer of EEHAZA1E221B?
Panasonic
